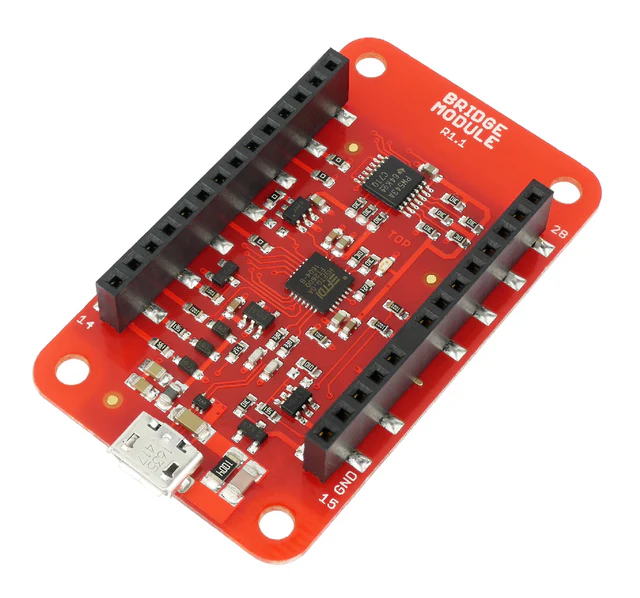

Bridge Module connects selected modules and tags of HARDWARIO TOWER, a modular IoT kit, to a computer or a Raspberry Pi over USB. Its FT260 chip converts USB HID to I²C and UART; the Micro-USB connector also powers the module and its peripherals. More
Manufacturer: HARDWARIO Product code: 99.25.1420.9976

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

3-year HARDWARIO guarantee. Details in our terms.

24,90 EUR incl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
Bridge Module connects selected modules and tags of HARDWARIO TOWER, a modular IoT kit, to a computer or a Raspberry Pi over USB. Its FT260 chip converts USB HID to I²C and UART; the Micro-USB connector also powers the module and its peripherals. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1420.9976

The Bridge Module turns TOWER modules and tags into USB peripherals of a computer. Plug a supported module or tag onto it, connect it by Micro-USB to a desktop, a laptop or a Raspberry Pi and read the values over I²C or UART.

  • Converter: the FT260 chip from FTDI converts USB HID to I²C and UART.
  • Two I²C buses: the TCA9543 multiplexer provides two independent buses.
  • Power: the Micro-USB connector also supplies the connected peripherals.
  • Software: the TOWER Bridge app for Windows, macOS and Linux reads the Climate Module, CO2 Module, GPS Module, Relay Module and the Humidity, Temperature, Lux Meter, Barometer, VOC-LP and NFC Tags.

Typical uses: TOWER sensors on a desktop or a laptop, a Raspberry Pi as a sensor host, I²C and UART peripherals driven from Linux.

Features

  • Integrated USB HID to I2C/UART converter FT260
  • Micro-USB connector
  • Two independent I2C buses provided by I2C multiplexer TCA9543
  • Red color LED (driven from FT260 GPIO pin)
  • Operating voltage range: 3.0 to 3.6 V or from USB host
  • Operating temperature range: -20 to 70 °C
  • Mechanical dimensions: 33 x 55 mm

Resources

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
Email [email protected]
