CHESTER Counter
CHESTER Counter
CHESTER Counter is a pulse-counting device with wireless connectivity (NB-IoT/LTE-M/LoRaWAN). More
Product code: 99.25.1567.8602
- 5% discount when purchasing 10 or more pieces
- 10% discount when purchasing 50 or more pieces
For orders of 200 pieces or more, contact us for an individual offer tailored to your needs.
Please note that discounts cannot be combined.
CHESTER Counter is a pulse-counting device with wireless connectivity (NB-IoT/LTE-M/LoRaWAN). More
Product code: 99.25.1567.8602
Enables accurate monitoring and recording of events such as water flow or production cycle counting. The device has four digital NPN/PNP inputs for counting pulses from electric meters, water meters, gas meters, or PLCs. Data is transmitted over cellular networks (NB-IoT/LTE-M) or public or private LoRaWAN networks.
Examples of use: Monitoring of water consumption, counting of production cycles on production lines, monitoring of people passing through turnstiles, etc.
Technical Specifications
| Number of inputs | 4 |
| Nominal battery voltage | 3.6 V |
| Nominal battery capacity | 7700 mAh |
| Operating voltage range | 2.0 V to 5.0 V |
| Idle power consumption | < 180 μA |
| Peak power consumption | < 250 mA |
| Operating temperature range | -30 to +70 °C |
| Storage temperature range | -40 to +85 °C |
| Dimensions | 130×175×45 mm |
HARDWARIO Cloud
Every CHESTER device can be connected to the HARDWARIO Cloud and managed in a clear user interface. You can group devices into organizations and groups and assign access to other users.
With user-defined HTTP/S callbacks, data can be delivered instantly to your HTTP/S endpoint, and the JSON message structure can be easily modified using JSONata. Integration with your favorite applications is fast and seamless.

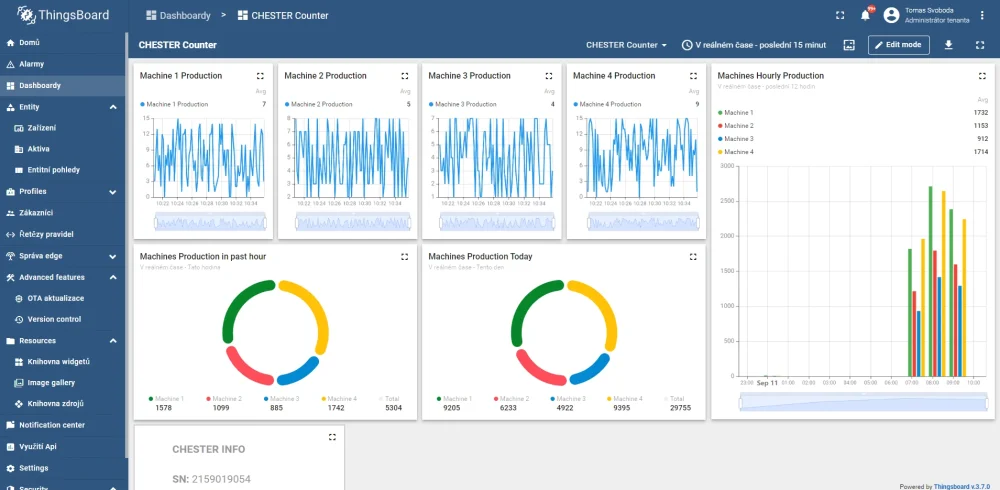

Dashboards
See all your data clearly in a customizable dashboard. You can use a pre-made solution or we can customize the dashboard to your needs. You can see the data in real-time, and a history that goes back up to a year is also available. You can easily set the period you are interested in - by weeks, months, etc.
