CHESTER Current
CHESTER Current
CHESTER Current is a configurable device for monitoring the current profile of a monitored machine or device with wireless connectivity. More
Product code: 99.25.1543.8410
- 5% discount when purchasing 10 or more pieces
- 10% discount when purchasing 50 or more pieces
For orders of 200 pieces or more, contact us for an individual offer tailored to your needs.
Please note that discounts cannot be combined.
CHESTER Current is a configurable device for monitoring the current profile of a monitored machine or device with wireless connectivity. More
Product code: 99.25.1543.8410
It allows you to monitor machine activity and optimize energy efficiency. CHESTER Current measures the current and provides statistical data such as average, maximum, minimum, and median values, both for the running average measurement and for the RMS value.
Examples of use: Machine monitoring, fault detection on production lines, and solar panel efficiency monitoring.
Technical specifications
| Power supply method |
Battery, or main + backup battery |
|
Thermometer accuracy (0 to 65 °C) |
± 0.2 °C |
|
Nominal battery voltage |
3.6 V |
|
Nominal battery capacity |
7 700 mAh |
|
Idle power consumption |
< 180 μA |
|
Operating temperature range |
-30 až +70 °C |
|

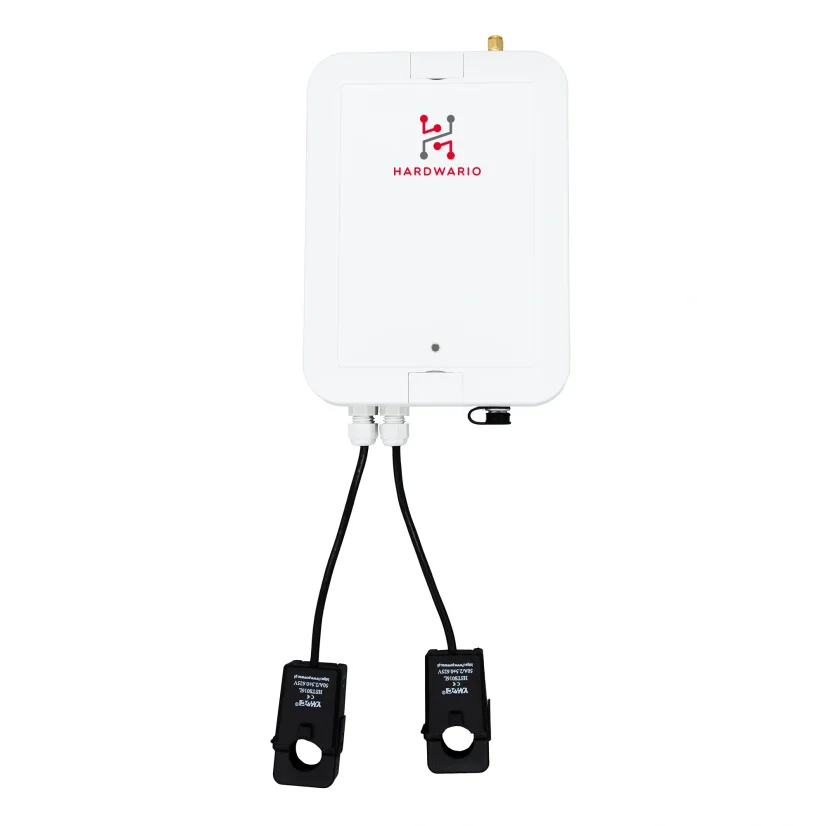

Max. number of current sensors |
4 |
HARDWARIO Cloud
Every CHESTER device can be connected to the HARDWARIO Cloud and managed in a clear user interface. You can group devices into organizations and groups and assign access to other users.
With user-defined HTTP/S callbacks, data can be delivered instantly to your HTTP/S endpoint, and the JSON message structure can be easily modified using JSONata. Integration with your favorite applications is fast and seamless.
Dashboards
See all your data clearly in a customizable dashboard. You can use a pre-made solution, or we can customize the dashboard to fit your needs. You can see the data in real-time, and a history that goes back up to a year is also available. You can easily set the period you are interested in - by weeks, months, etc.
