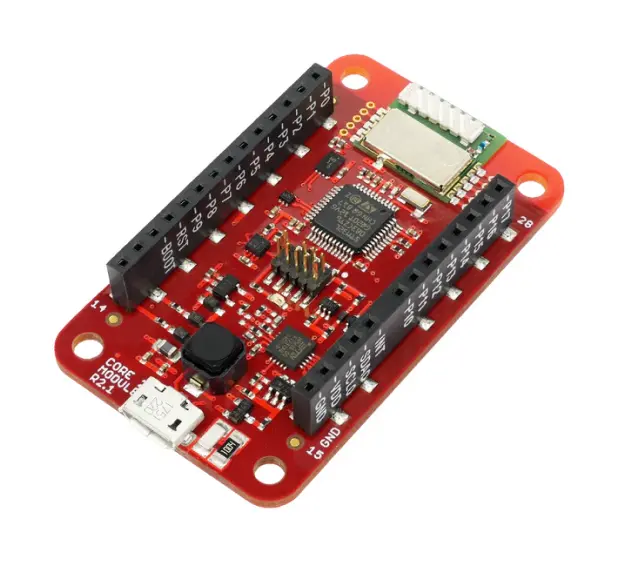

Core Module is the microcontroller board every device of HARDWARIO TOWER, a modular IoT kit, is built on: a 32-bit ARM Cortex-M0+ with 192 kB flash, a sub-GHz radio for 868/915 MHz, a temperature sensor, a 3-axis accelerometer and a security chip. More
Manufacturer: HARDWARIO Product code: 99.25.1407.3976

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

3-year HARDWARIO guarantee. Details in our terms.

51,90 EUR incl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
Core Module is the microcontroller board every device of HARDWARIO TOWER, a modular IoT kit, is built on: a 32-bit ARM Cortex-M0+ with 192 kB flash, a sub-GHz radio for 868/915 MHz, a temperature sensor, a 3-axis accelerometer and a security chip. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1407.3976

Every HARDWARIO TOWER device starts with a Core Module: it runs your firmware, talks to the modules stacked on it and exchanges data by radio with another Core Module or with a Radio Dongle on your computer.

  • Microcontroller: ARM Cortex-M0+ (STM32L083CZ), 192 kB flash, 20 kB RAM; deep sleep below 5 µA.
  • Interfaces: 18× GPIO, 3× UART, 2× I²C, 1× SPI, 5× ADC, 2× DAC.
  • Programming: over Micro-USB with HARDWARIO Playground, HARDWARIO Firmware Tool or HARDWARIO Code (Windows, macOS, Linux); a 10-pin SWD connector serves a debugger.
  • Firmware: ready-made firmware for many applications or your own code on the HARDWARIO Firmware SDK with event-driven APIs for low-power, battery-operated devices.

EA stands for external antenna: the Core Module EA has a connector for an external antenna, the standard version does not.

Features

  • ARM Cortex M0+ 32-bit MCU STM32L083CZ (ST)
  • 192 kB Flash / 20 kB RAM
  • Radio module (868/915 MHz) based on SPIRIT1 (ST)
  • Security chip ATSHA204A (Microchip)
  • Digital temperature sensor TMP112 (TI)
  • 3-axis accelerometer LIS2DH12 (ST)
  • Red color LED
  • Push button RESET and BOOT (BOOT is available to MCU)
  • Easily programmable via USB (DFU bootloader)
  • 10-pin SWD connector for debugging
  • Micro-USB for host communication and power
  • 18x GPIO (completely free for application)
  • 3x UART, 2x I²C, 1x SPI, 5x ADC, 2x DAC
  • Deep sleep mode: < 5 µA
  • Operating voltage range: 2.0 V to 3.6 V
  • Operating temperature range: -20 to 70 °C
  • Mechanical dimensions: 33 x 55 mm

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
