Core Module EA

Add to favourites Add to compare list

Core Module EA

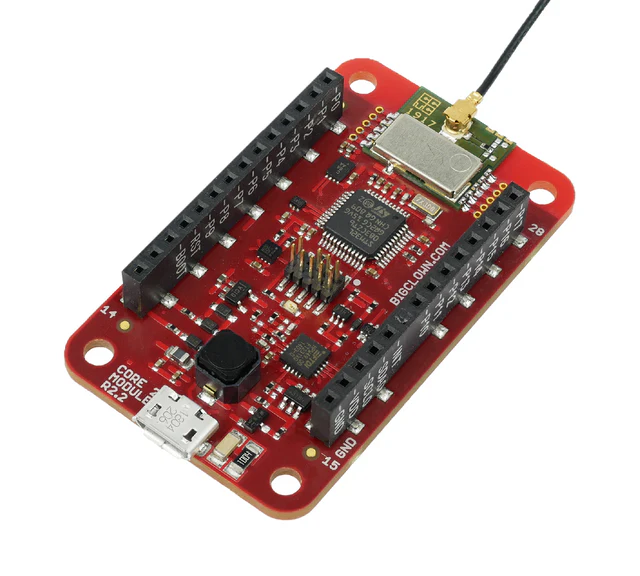

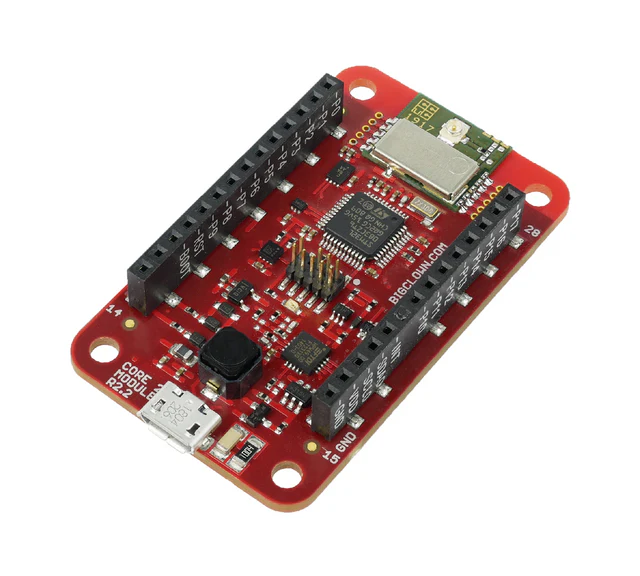

The Core Module in the EA version allows you to connect an external antenna to increase radio range several times. We also recommend using Radio Dongle EA with an external antenna for the most demanding conditions with many obstacles. More
Manufacturer: HARDWARIO Product code: 99.25.1409.6441

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

3-year HARDWARIO guarantee. Details in our terms.

44,54 EUR excl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
The Core Module in the EA version allows you to connect an external antenna to increase radio range several times. We also recommend using Radio Dongle EA with an external antenna for the most demanding conditions with many obstacles. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1409.6441
You can upload the firmware using a Micro USB cable using the HARDWARIO Playground or  Firmware Tool (works on Windows, macOS and Linux). It is easy to start development on this platform using the HARDWARIO Firmware SDK (Software Development Kit). The SDK offers clean and consistent APIs that allow event-driven programming. These APIs are designed for low-power and battery-operated applications. If you need to debug your application and the logging API is insufficient, you can use an SWD debugger and the onboard 10-pin connector. The Core Module can communicate wirelessly with another Core Module, or you can create your wireless network using the Radio Dongle.


Features

  • ARM Cortex M0+ 32-bit MCU STM32L083CZ (ST)
  • 192 kB Flash / 20 kB RAM
  • Radio module (868/915 MHz) based on SPIRIT1 (ST)
  • Security chip ATSHA204A (Microchip)
  • Digital temperature sensor TMP112 (TI)
  • 3-axis accelerometer LIS2DH12 (ST)
  • Red color LED
  • Push button RESET and BOOT (BOOT is available to MCU)
  • Easily programmable via USB (DFU bootloader)
  • 10-pin SWD connector for debugging
  • Micro-USB for host communication and power
  • 18x GPIO (completely free for application)
  • 3x UART, 2x I²C, 1x SPI, 5x ADC, 2x DAC
  • Deep sleep mode: < 5 µA
  • Operating voltage range: 2.0 V to 3.6 V
  • Operating temperature range: -20 to 70 °C
  • Mechanical dimensions: 33 x 55 mm

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
Email [email protected]
