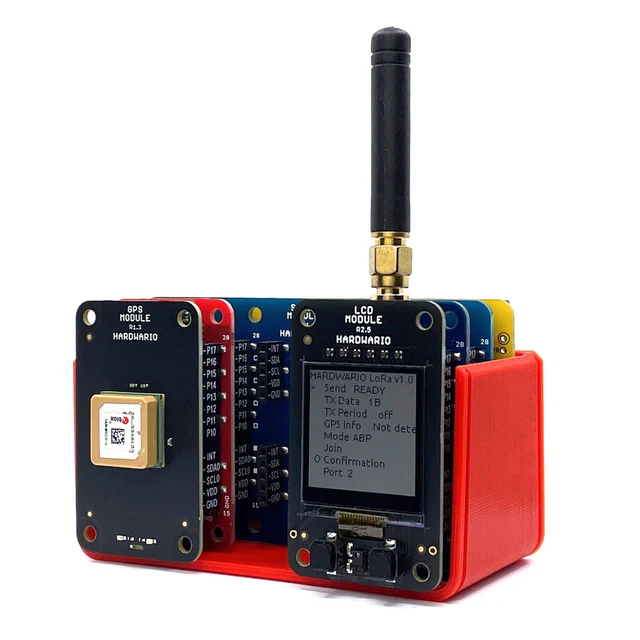

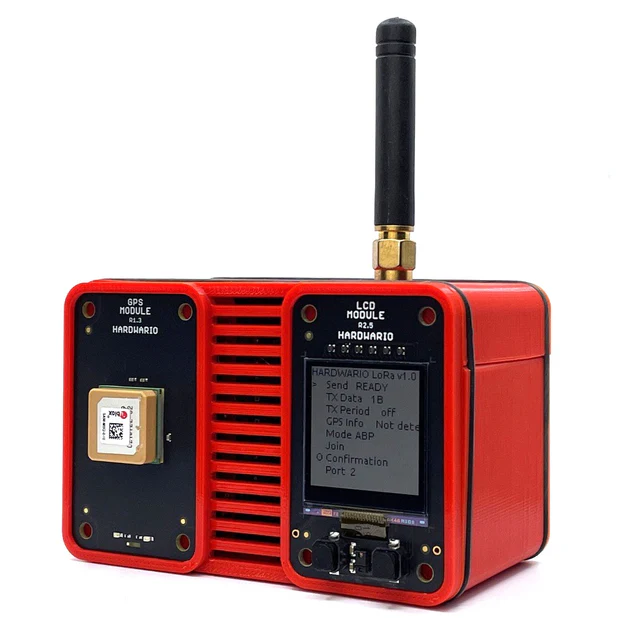

LoRa Test GPS Set

LoRa Test GPS Set


Fully configurable battery-operated LoRa tester based on HARDWARIO IoT Kit. You can configure every LoRa parameter and use GPS with TTN Mapper. More

Product code: 99.24.1574.9955

  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces
  • 15% discount when purchasing 200 or more pieces
  • 20% discount when purchasing 1,000 or more pieces

Free shipping on purchases over 120 EUR.

169 EUR excl. VAT (204,49 EUR incl. VAT)
In stock
pcs

Fully configurable battery-operated LoRa tester based on HARDWARIO IoT Kit. You can configure every LoRa parameter and use GPS with TTN Mapper. More

Product code: 99.24.1574.9955

Industrial IoT kit

HARDWARIO TOWER is an industrial building block that makes it easy to build IoT projects. It finds applications especially in Industry 4.0 pilots, active STEM education, and smart home projects. The assembled sensors, detectors, and actuators consume little power and can run on batteries for several years.

LoRa Test GPS

With the LoRa Test, you can quickly test any LoRaWAN network. The tester is fully configurable and battery-powered. Data is displayed on the LCD, and configuration is done with integrated buttons. Thanks to the GPS-enabled module, you can also send current location information and display it in the TTN Mapper service. It also lets you know the signal strength. The project includes open-source code, worldwide frequencies, data rates including class C, and support for periodic sending. More information about the project can be found at Hackster.io.

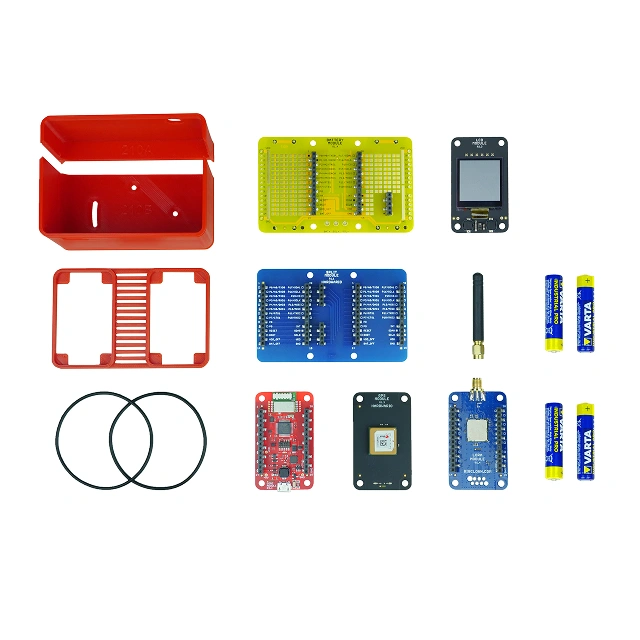

LoRa GPS Tester Set includes:

  • 1x Core Module
  • 1x Display Module
  • 1x LoRa Module
  • 1x LCD Module
  • 1x GPS Module
  • 1x Split Module
  • 1x Battery Module
  • 4x AAA battery
  • 1x 3D printed enclosure 210
  • 2x Fastening rubber band

Projects

Since it also includes a Core Module equipped with a 3-axis accelerometer and digital thermometer, the kit can be used for various other projects. The basic projects can be found on the web.

HARDWARIO Playground

The kit includes the HARDWARIO Playground app, which can be downloaded for Windows, macOS, and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware, and add the required functions using the Node-RED application. The open-source kit supports integrations with popular platforms such as Microsoft Azure, AWS, Ubidots, Blynk, IFTTT, Amazon Alexa, Google Home, or Apple HomeKit. Introducing HARDWARIO Playground

More about the Core module

MCU 32-bit ARM Cortex M0+ STM32L083CZ
Radio communication SPIRIT1 868 or 915 MHz
Memory 192 kB flash / 20 kB RAM
Voltage range from 2 V to 3.6 V
Idle consumption < 30 μA
Operating temperature range from -40 to +70 °C
Dimension 33 mm (width) × 55 mm (height)
Interfaces 18× GPIO, 3× UART, 2× I2C 1× SPI, 5× ADC, 2× DAC, 10 pins SWD connector for debugging
Uploaded firmware in this set twr-lora-tester
