CZKMilesight wall socket WS523 (portable) - LoRaWAN
Milesight wall socket WS523 (portable) - LoRaWAN
Smart portable socket with LoRaWAN support for remote control and energy consumption monitoring. More
Free shipping within the Czech Republic on purchases over 120 EUR.
90,90 EUR
excl. VAT (109,99 EUR incl. VAT)
Smart portable socket with LoRaWAN support for remote control and energy consumption monitoring. More

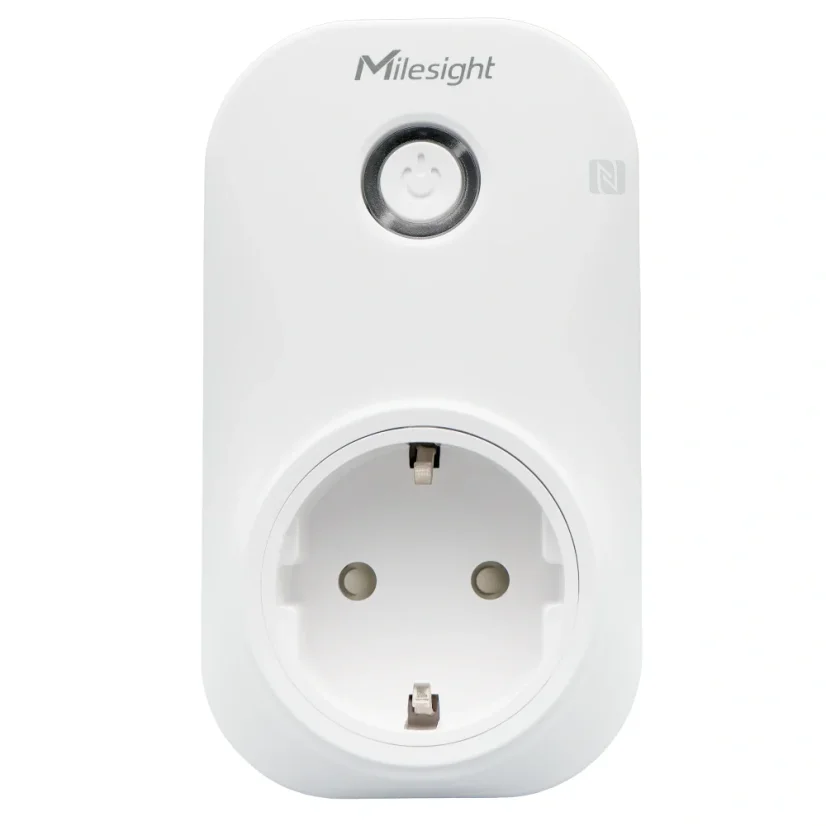

Milesight WS523 is a portable smart plug with LoRaWAN technology, enabling remote control of connected devices and monitoring energy consumption. It offers delayed switching, button lock, and overload protection features. It is easy to install and compatible with Milesight IoT Cloud.
Specifications
- Socket Type: Type E (FR)
- Input Voltage: 100–250 V AC, 50/60 Hz
- Maximum Current: 16 A
- Measured Parameters: Voltage, Current, Power Factor, Active Power, Energy Consumption
- Dimensions: 110 × 62 × 35 mm
Parameters
| Model | WS523-868M-16A-EU |
|---|---|
| Socket Type | Type E (FR) with safety shutter |
| Input Voltage | 100–250 V AC, 50/60 Hz |
| Maximum Current | 16 A |
| Measured Parameters | Voltage (V), Current (mA), Power Factor (%), Active Power (W), Energy Consumption (kWh) |
| Measurement Accuracy | Typical ±3%, Maximum ±5% |
| Communication Technology | LoRaWAN®, Milesight D2D |
| Frequency Bands | EU868 |
| Transmission Power | 16 dBm (868 MHz) |
| Sensitivity | -137 dBm |
| Operating Modes | OTAA/ABP, Class C |
| Configuration | NFC or downlink |
| Power Control | Local button or remote control |
| Advanced Features | Delayed switching, button lock, overload protection, multicast, Milesight D2D agent |
| LED Indicator | 1× network/power status indicator |
| Material and Color | Polycarbonate (UL94 V0), White |
| Dimensions | 110 × 62 × 35 mm |
| Weight | 98.8 g |
| Operating Temperature | -20 °C to +60 °C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection Rating | IP20 |
| Certifications | CE, RoHS, WEEE |
