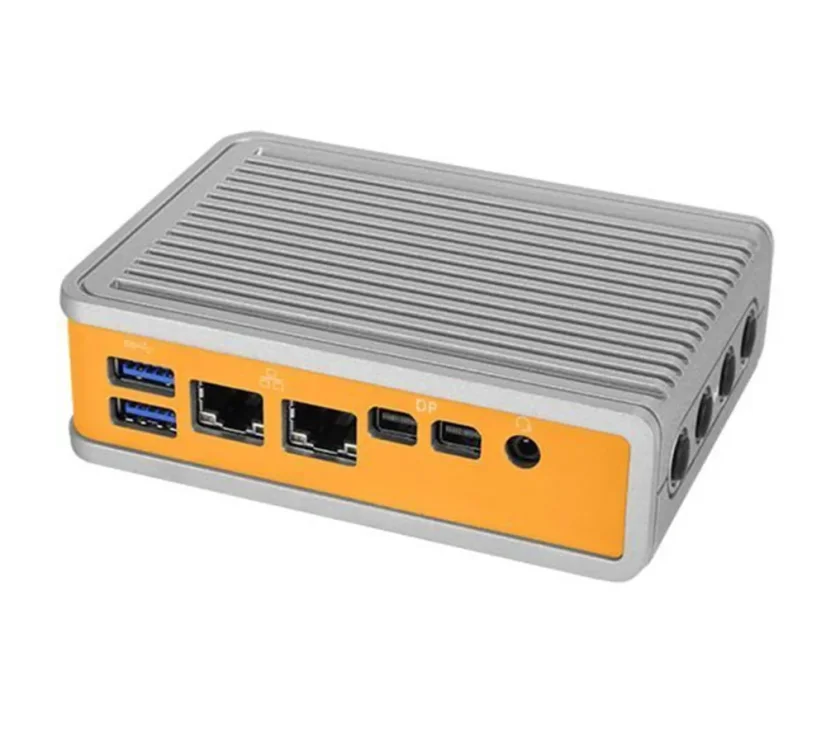

Industrial computer OnLogic CL210G-10 with Dual LAN
Industrial computer OnLogic CL210G-10 with Dual LAN
We offer it including installing Ubuntu Server 20.04 LTS and configuration (Installation variant).
More
Product code: 99.25.1392.5839
- 5% discount when purchasing 10 or more pieces
- 10% discount when purchasing 50 or more pieces
For orders of 200 pieces or more, contact us for an individual offer tailored to your needs.
Please note that discounts cannot be combined.
Free shipping on purchases over 120 EUR.
149,90 EUR excl. VAT (181,38 EUR incl. VAT)
We offer it including installing Ubuntu Server 20.04 LTS and configuration (Installation variant).
More
Product code: 99.25.1392.5839
Technical Specifications
- SKU: CL210G-10
- Hardware Series: Fanless Industrial
- Cooling System: Fanless
- Processor: Intel Celeron N3350
- Processor Speed: 1.1 GHz
- Maximum Turbo Frequency: 2.08 GHz
- Maximum Frequency: 2.4 GHz
- Processor Socket: Onboard (BGA)
- Processor Generation: Apollo Lake
- Number of Cores: 2
- Chipset: Shared with CPU
- Graphics/GPU: Intel HD Graphics 500
- Memory Type: LPDDR4
- Memory Capacity: 4 GB
- Memory Speed: 2133 MHz
- Number of Memory Slots: 2
- Number of Supported Displays: 2
I/O Ports
Rear I/O:
- 1x MicroSD Card Slot
- 1x Power Button
- 1x Power Indicator LED
- 1x COM Port (RS-232)
- 1x USB 2.0 Port
- 1x DC Input Jack (12 V, AC/DC Power Adapter included)
Front I/O:
- 2x USB 3.0 Ports
- 2x Mini-DisplayPorts
- 2x Gb LAN Ports
- 1x Audio Jack (Line Out / Mic In)
Expansion Options
- 1x Full-size mPCIe Slot (shared with mSATA)
- 1x Half-height mPCIe Slot
Storage Options
- Included Storage: 32 GB Onboard eMMC Storage
- Additional Storage: MicroSD Card, 1x mSATA Slot (shared with full-size mPCIe slot)
Networking
- LAN Controller: Realtek RTL8111G
Power Supply
- Included Adapter: AC/DC 12 V, 36 W - with Interchangeable Plug
- Input Voltage: 12 VDC (via DC Jack)
System Monitoring
- BIOS Features: PTT (Platform Trust Technology)
- Watchdog Timer: Yes
Operating Conditions
- Operating Temperature: 0 ~ 40°C
Physical Dimensions
- Dimensions (W x H x D): 116 mm x 82 mm x 34 mm (4.57" x 3.23" x 1.34")
- Case Type: Compact, Customizable, Fanless
- Case Material: Cast Aluminum & Steel
Additional Features
- Antenna Ports: 4 Holes
- Mounting Options: DIN-mount, VESA-mount, Wall-mount
Regulatory Compliance
- Certifications:
- FCC 47 CFR Part 15
- CE
- UL Listed Configurations Available
- CB Scheme
- WEEE Directive (2002/96/EC)
- RoHS 2 (2011/65/EU)
- RoHS 3 (2015/863/EU)
- EN 55024, EN 55032, EN 62368-1, IEC 62368-1
- IP50
Notes:
The CL200 series supports UEFI boot mode only.
