Tag Module

Tag Module
Add to favourites Add to compare list

Tag Module

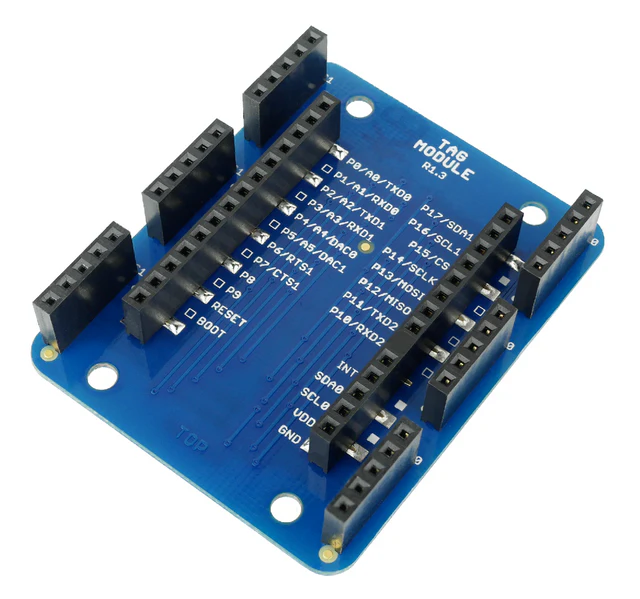

The Tag Module allows up to six TOWER tags to be connected. It features two independent I²C buses (I2C0 and I2C1) - one on each side - which allows two tags with the same I²C address to be connected to a single TOWER node. The module also features pull-up resistors on the SDA/SCL signals of the I2C1 bus. More
Manufacturer: HARDWARIO Product code: 99.25.1412.6009

Volume discounts:


  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces

For order quantities of 200+ pcs, please contact us for an individual offer. Please note that discounts cannot be combined.


Free shipping within the Czech Republic on purchases over 120 EUR.

8,90 EUR excl. VAT (10,77 EUR incl. VAT)

Price includes a WEEE recycling fee for the Czech Republic.

In stock
The Tag Module allows up to six TOWER tags to be connected. It features two independent I²C buses (I2C0 and I2C1) - one on each side - which allows two tags with the same I²C address to be connected to a single TOWER node. The module also features pull-up resistors on the SDA/SCL signals of the I2C1 bus. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1412.6009
Some TOWER modules already have one or more extra 5-pin sockets, allowing you to connect a TOWER tag. Still, sometimes the number of positions is not enough, the socket is not available, or you need to extend the I²C bus with an additional channel. And that’s when the Tag Module can help.


Features

  • 6x 5-pin socket position for TOWER tag
    • 3x tag positions are connected to I2C0 (right side)
    • 3x tag positions are connected to I2C1 (left side)
  • Integrated pull-up resistors on SDA/SCL signals of I2C1 bus
  • Operating temperature range: -20 to 70 °C
  • Mechanical dimensions: 44 x 55 mm

Resources

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
