WisGate Edge Lite 2 RAK7268V2/RAK7268CV2
A compact 8-channel LoRaWAN® gateway for indoor use with Ethernet, Wi-Fi, and optional LTE connectivity. More
Free shipping within the Czech Republic.
289 EUR
excl. VAT (349,69 EUR incl. VAT)
A compact 8-channel LoRaWAN® gateway for indoor use with Ethernet, Wi-Fi, and optional LTE connectivity. More

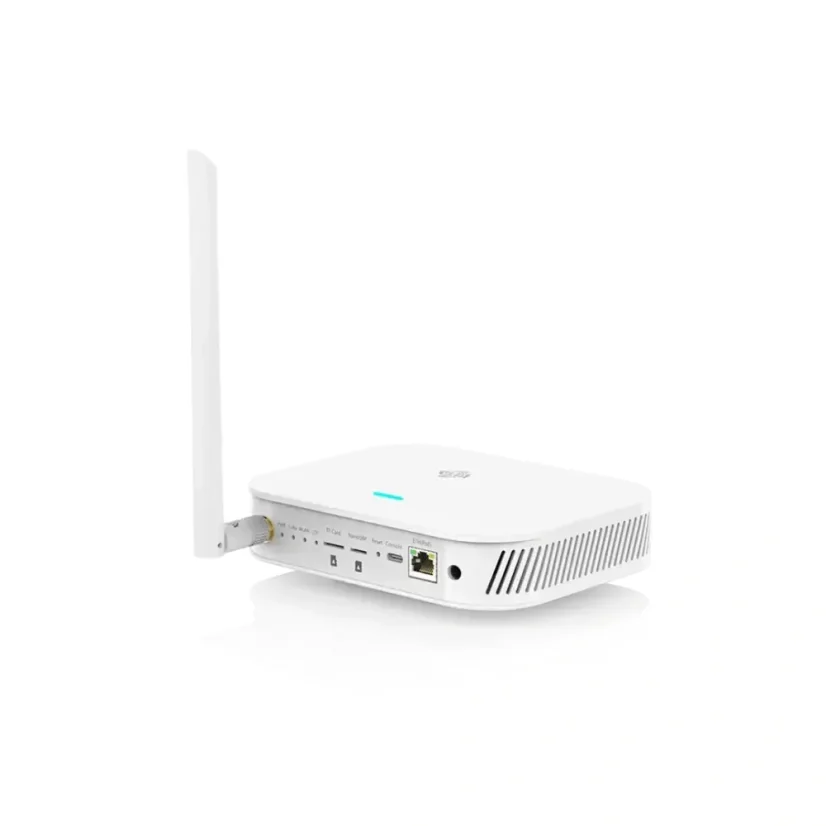

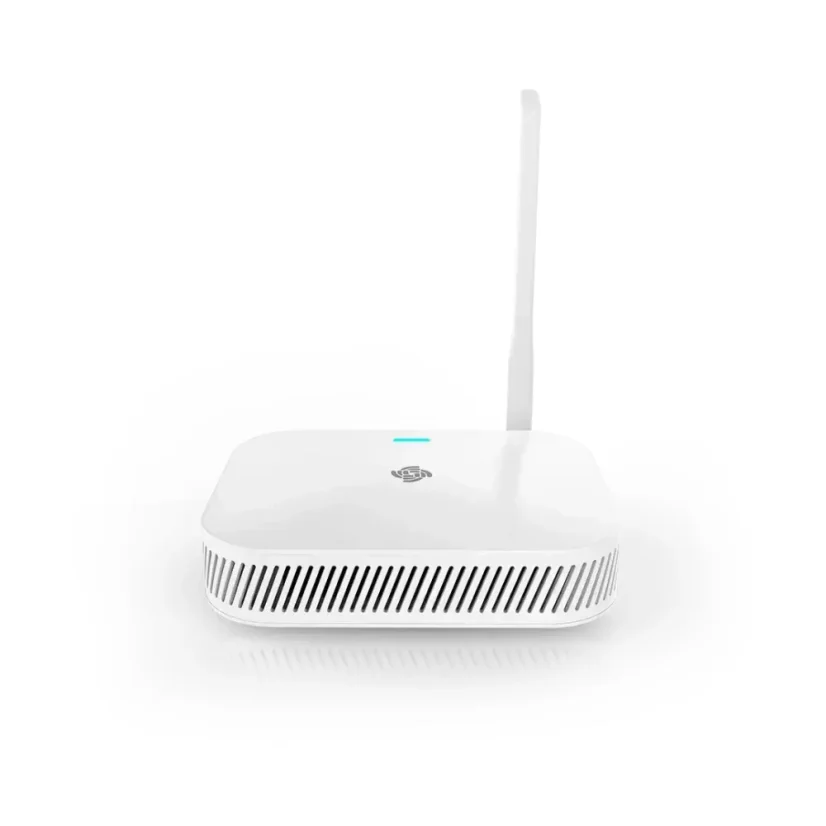

RAK7268V2 / RAK7268CV2 WisGate Edge Lite 2 is a modern indoor LoRaWAN® gateway with eight channels designed for easy deployment in commercial and industrial environments. It offers flexibility and security, with multiple connectivity options (Ethernet, Wi-Fi, and optional LTE for the CV2 version) and operation based on WisGateOS 2 built on OpenWRT.
The gateway features an integrated network server, supports MQTT with TLS encryption, and allows remote management via the WisDM platform. Its “breathing LED” function provides visual device status indication.
Supported LoRaWAN network server: ChirpStack v3
Parameters
| LoRaWAN® | 8 channels, SX1302, compliant with LoRaWAN 1.0.3 |
| Frequency Bands | EU868, US915, AU915, AS923, IN865, KR920, EU433, CN470 |
| Connectivity | Ethernet 100M Base-T with PoE support (IEEE 802.3af) Wi-Fi 2.4 GHz (802.11b/g/n) LTE Cat 4 (RAK7268CV2 only) |
| Power Supply | 12 V DC (adapter included) / PoE 36–57 V DC Optional 9–24 V DC (on request) |
| Antennas | LoRa: external RP-SMA connector Wi-Fi/LTE: internal antennas |
| Memory | 128 MB DDR2 RAM |
| Storage | SD card slot for log backup and LoRa frame buffering |
| Dimensions | 166 × 127.5 × 36 mm |
| Operating Temperature | −10 °C to +55 °C |
| Mounting Options | Desktop, wall, or DIN rail (mounting bracket included) |
| Ingress Protection | IP30 |
| Software | WisGateOS 2 with extension support Integrated network server Basic Station and Packet Forwarder modes support MQTT v3.1 with TLS encryption LoRa frame filtering (device allowlisting) LoRa frame buffering during network server outage |
| Remote Management | Compatible with the WisDM remote management platform |
Package Contents
- 1× WisGate Edge Lite 2 (RAK7268V2 nebo RAK7268CV2)
- 1× LoRa antenna
- 1× Power adapter
- 1× Mounting bracket
