CZKWisGate Edge Pro RAK7289V2/RAK7289CV2
WisGate Edge Pro RAK7289V2/RAK7289CV2
Free shipping within the Czech Republic.

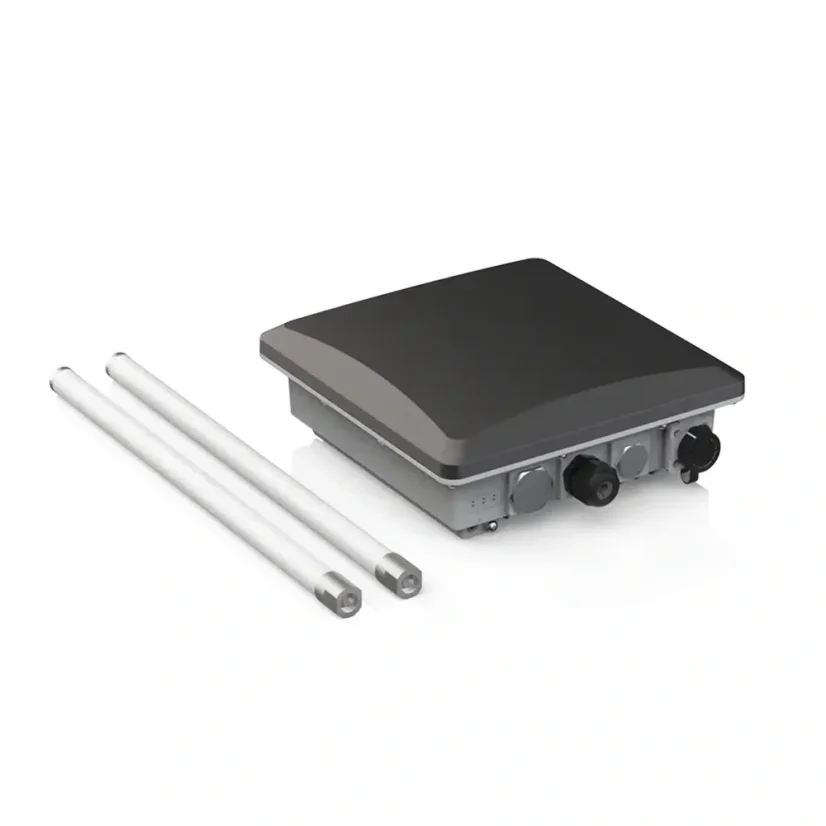

RAK7289V2 / RAK7289CV2 WisGate Edge Pro V2 is a rugged outdoor LoRaWAN® gateway designed for commercial and industrial applications. It offers flexibility for various deployment scenarios with up to 16 LoRa channels and multiple connectivity options (Ethernet, Wi-Fi, and optional LTE on the CV2 version).
Based on OpenWRT, the gateway runs on WisGateOS 2, enabling feature expansion and remote management via the WisDM platform. Its integrated LTE, Wi-Fi, and GPS antennas are housed inside a robust IP67 enclosure, protecting the device from harsh environmental conditions.
It supports multiple operating modes, including an integrated network server, Packet Forwarder, and Basics Station. Features like MQTT with TLS encryption, LoRa frame filtering, and data buffering during network server outages ensure reliable performance.
Supported LoRaWAN Network Servers: ChirpStack v3, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT Core Integration, Actility LNS with Basics Station
Parameters
| LoRaWAN® | 8 or 16 channels, SX1303, compliant with LoRaWAN 1.0.3 |
| Frequency Bands | EU868, US915, AU915, AS923, IN865, KR920, EU433, CN470 |
| Connectivity | Ethernet 100M Base-T with PoE support (IEEE 802.3af) Wi-Fi 2.4 GHz (802.11b/g/n) LTE Cat 4 (RAK7289CV2 only) |
| Power Supply | 12 V DC / PoE 37–57 V DC |
| Antennas | LoRa: external N-Type connectors Wi-Fi/LTE/GPS: internal antennas |
| Memory | 128 MB DDR2 RAM |
| Ingress protection | IP67 |
| Dimensions | 240 × 240 × 89.5 mm |
| Operating Temperature | −40 °C to +70 °C |

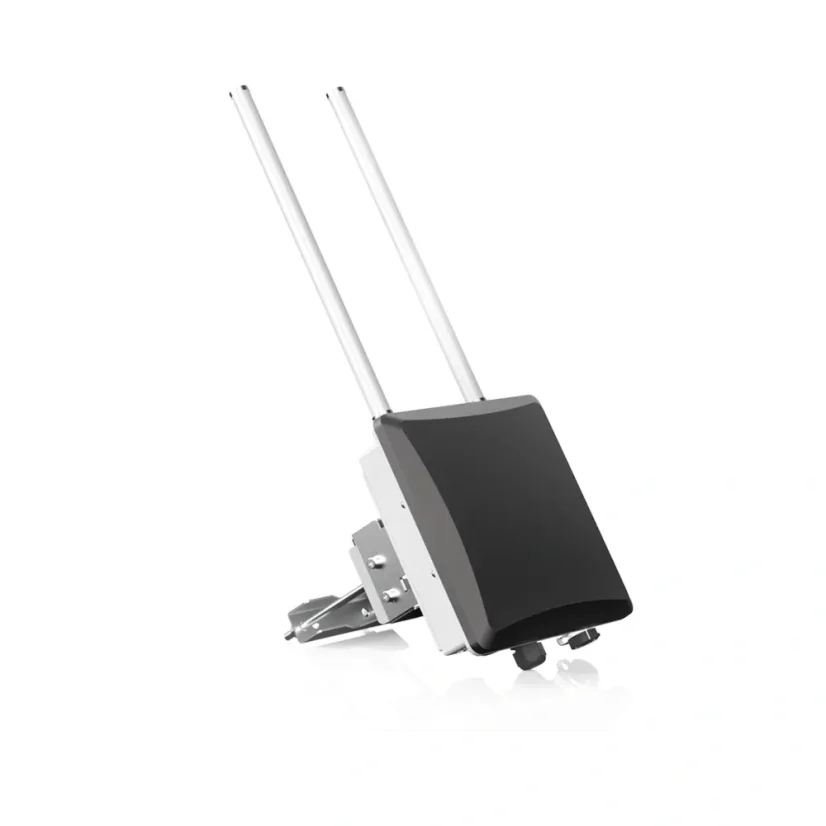

| Mounting | Wall or pole mounting (bracket included) |
| Software | WisGateOS 2 with extension support Integrated network server Basic Station and Packet Forwarder modes support MQTT v3.1 with TLS encryption LoRa frame filtering (device whitelisting) LoRa frame buffering during network server outage Listen Before Talk (optional) Fine timestamping (optional) |
| Remote Management | Compatible with the WisDM platform |
Package Contents
- 1× WisGate Edge Pro V2 (RAK7289V2 or RAK7289CV2)
- 1× Ethernet cable gland
- 1× PoE injector
- 1× Mounting brackets
- 1× Screw set
Note: LoRa antennas are not included. They must be purchased separately – one antenna for the 8-channel version and two for the 16-channel version.
