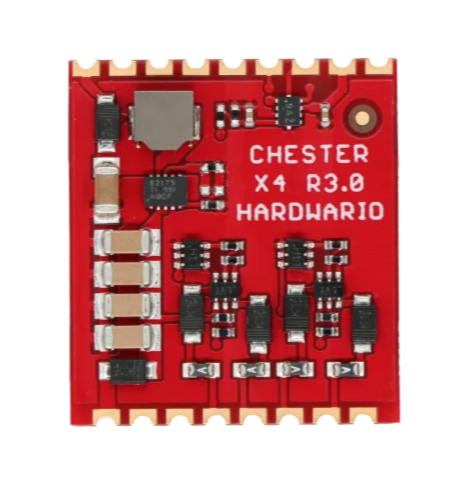

CHESTER-X4 powers the CHESTER IoT platform from an external 6–28 V DC line and switches that voltage to four outputs for external devices. Each output has a resettable PTC fuse; the module also measures the input voltage. More
Manufacturer: HARDWARIO Product code: 99.25.1531.6697

Free UK delivery from 220 GBP; minimum order 140 GBP. Prices are without VAT: UK import VAT and any duty are paid on delivery. All rates: Shipping and payment.

3-year HARDWARIO guarantee. Details in our terms.

32,90 GBP excl. UK VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
CHESTER-X4 powers the CHESTER IoT platform from an external 6–28 V DC line and switches that voltage to four outputs for external devices. Each output has a resettable PTC fuse; the module also measures the input voltage. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1531.6697

CHESTER-X4 is for a CHESTER that runs from a DC supply and has to power or switch other devices. Its step-down converter feeds CHESTER from an external 6–28 V DC line; four switches pass the input voltage on to independent loads.

  • Input: 6–28 V DC, with measurement of the input voltage.
  • Outputs: 4 channels, each switched independently, 50 mA nominal.
  • Protection: a resettable PTC fuse on every output, tripping at about 150 mA.
  • Fits: slot A or B on the back of the CHESTER-M mainboard (soldered; the developer edition CHESTER-M-CDGLS holds it on spring contacts).

Typical uses: powering and switching external devices in automation and control systems; the output module of the CHESTER Control catalog application.

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The product is sensitive to electrostatic discharge: touch a grounded object before handling it, and install it only in a device disconnected from power.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
