EURClime XL Set
Clime XL Set
This kit enables you to measure indoor air quality effectively. It communicates wirelessly and displays data on an LCD screen, operating for up to one year on standard alkaline batteries. With this device, you can monitor carbon dioxide (CO₂) levels, temperature, humidity, atmospheric pressure and volatile organic compounds (VOCs). Maintaining optimal levels of carbon dioxide and VOCs is beneficial for your health. More
Manufacturer: HARDWARIO
Product code: 99.25.1650.4875
The supplied box matches the color shown in the photo. If you prefer a different variant, please specify your request in the order notes.
Free UK delivery from 220 GBP; minimum order 140 GBP. Prices are without VAT: UK import VAT and any duty are paid on delivery. All rates: Shipping and payment.
3-year HARDWARIO guarantee. Details in our terms.
199 GBP
excl. UK VAT
Price includes a WEEE recycling fee for the Czech Republic.
This kit enables you to measure indoor air quality effectively. It communicates wirelessly and displays data on an LCD screen, operating for up to one year on standard alkaline batteries. With this device, you can monitor carbon dioxide (CO₂) levels, temperature, humidity, atmospheric pressure and volatile organic compounds (VOCs). Maintaining optimal levels of carbon dioxide and VOCs is beneficial for your health. More
Price includes a WEEE recycling fee for the Czech Republic.
Manufacturer: HARDWARIO
Product code: 99.25.1650.4875
Industrial IoT kit
HARDWARIO TOWER is an industrial building block that makes it easy to build IoT projects. It finds applications especially in Industry 4.0 pilots, active STEM education and smart home projects. The assembled sensors, detectors and actuators have low power consumption and run on batteries.

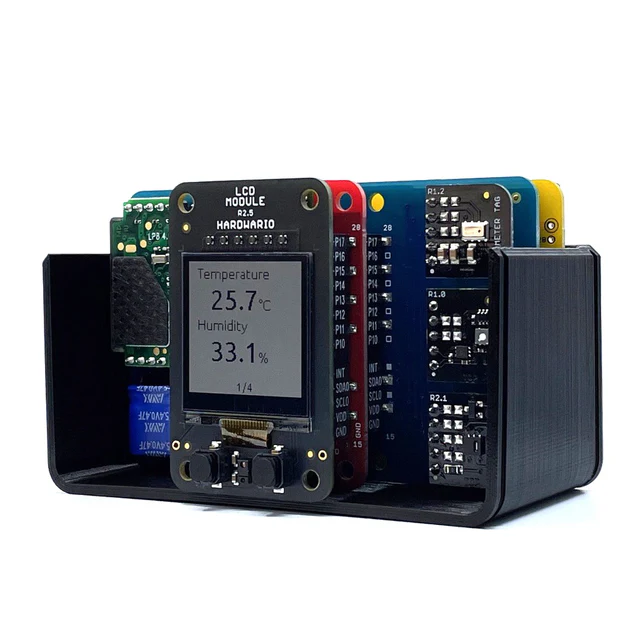

Clime XL Set
The Clime XL set is a complete station for monitoring indoor conditions with an LCD. It lets you wirelessly monitor temperature, humidity, atmospheric pressure, volatile organic compound (VOC) and CO2 concentration.The Clime XL set includes:
- 1x Core Module
- 1x LCD Module
- 1x Humidity Tag (humidity sensor)
- 1x Barometer Tag (atmospheric pressure sensor)
- 1x VOC-LP Tag (Volatile Organic Compound concentration sensor)
- 1x CO₂ Module (CO₂ concentration sensor)
- 1x Battery Module
- 4x AAA battery
- 1x 3D printed enclosure 204
- 2x silicone O-rings
Projects
Since it also includes a Core Module equipped with a 3-axis accelerometer and digital thermometer, the kit can be used for a variety of other projects. The basic projects are available on the web.
HARDWARIO Playground
The kit includes the HARDWARIO Playground app, which can be downloaded for Windows, macOS and Linux computers. With the application, you connect the assembled devices to the created radio network, set the purpose of each device according to the selected firmware, and add the required functions using the Node-RED application. The open-source kit passes its data over MQTT, so you can process it further in Node-RED, InfluxDB and Grafana, for example. Introducing HARDWARIO Playground
More about the Core module
| MCU | 32-bit ARM Cortex M0+ STM32L083CZ |
| Radio communication | SPIRIT1 868 or 915 MHz |
| Memory | 192 kB flash / 20 kB RAM |
| Voltage range | from 2 V to 3.6 V |
| Idle consumption | < 30 μA |
| Operating temperature range | from -40 to +70 °C |
| Dimension | 33 mm (width) × 55 mm (height) |
| Interfaces | 18× GPIO, 3× UART, 2× I2C 1× SPI, 5× ADC, 2× DAC, 10 pins SWD connector for debugging |
| Uploaded firmware in this set | Twr-radio-air-quality-monitor |
Safety information
- Read the documentation at docs.hardwario.com before installing the product.
- Use the product only for its intended use and within the operating conditions given in its documentation.
- Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
- The product is not designed for potentially explosive atmospheres.
- The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
- Power them only as described in the documentation (USB, a battery module or the Power Module).
- Keep small parts out of the reach of small children.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
