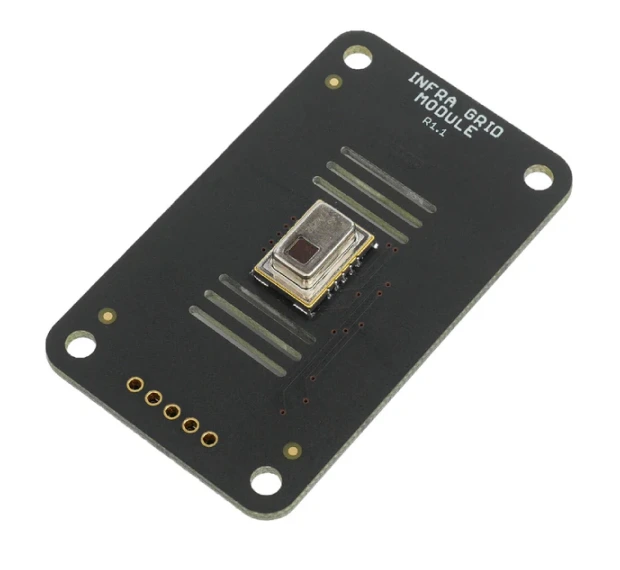

Infra Grid Module

Infra Grid Module has 64 infrared sensors in an 8 x 8 matrix. You can perform non-contact infrared temperature measurements. More

Manufacturer: HARDWARIO Product code: 99.25.1433.7033

Buying in volume? Write to [email protected] for an individual offer.

Free UK delivery from 220 GBP; minimum order 140 GBP. Prices are without VAT: UK import VAT and any duty are paid on delivery. All rates: Shipping and payment.

3-year HARDWARIO guarantee. Details in our terms.

25,90 GBP excl. UK VAT

Price includes a WEEE recycling fee for the Czech Republic.

Infra Grid Module has 64 infrared sensors in an 8 x 8 matrix. You can perform non-contact infrared temperature measurements. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1433.7033

Description Description
Additional information Additional information

It uses Panasonic Infrared Array Sensor Grid-EYE with an AMG8833 chip. With it, you can detect not only motion but also the size and direction of the moving object.

Features

Infrared images with 8 x 8-pixel resolution
Operating voltage 3.3 V
Temperature accuracy ±2.5 °C
Operating and measurement temperatures 0 °C to 80 °C (High gain sensor type)
Human detection up to 7 m
Current consumption 4.5 mA in normal mode (10 FPS)
Integrated switch for reduced power operation.
Integrated temperature sensor -20 °C to 80 °C

Resources

Schematic drawing

Safety information

Read the documentation at docs.hardwario.com before installing the product.
Use the product only for its intended use and within the operating conditions given in its documentation.
Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
The product is not designed for potentially explosive atmospheres.
The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
Power them only as described in the documentation (USB, a battery module or the Power Module).
Keep small parts out of the reach of small children.
