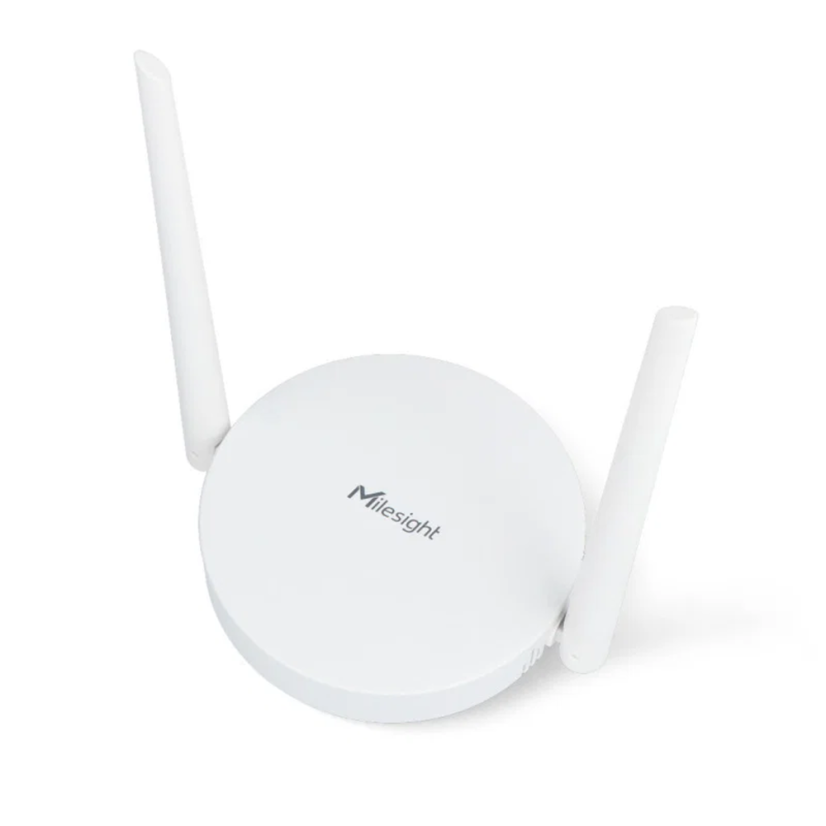

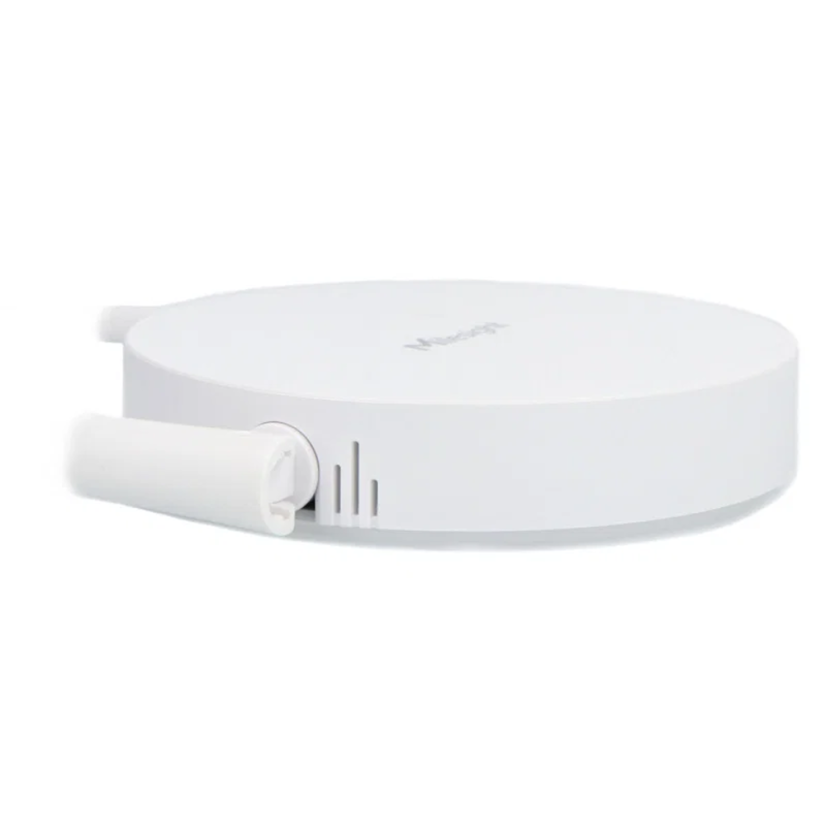

Milesight UG63 - Mini Gateway

The Milesight UG63-868M is a high-performance yet compact indoor LoRaWAN® gateway designed for enhancing coverage in smart buildings, offices, parking spaces, and campuses. Equipped with a Semtech SX1302 chipset, it supports up to 8 channels and manages over 2,000 end-node connections.

Installation is flexible, supporting desktop, wall, or ceiling mounting, and configuration is simplified via Wi-Fi or auto-provisioning. With built-in packet forwarding and compatibility with standard network servers (like TTN, ChirpStack, AWS IoT Core) as well as Milesight DeviceHub and IoT Cloud, the UG63 is ideal for setting up standalone networks or extending gateway range in clustered deployments. Ethernet is standard, and cellular (4G LTE) is optional for seamless backhaul redundancy.

Before deployment

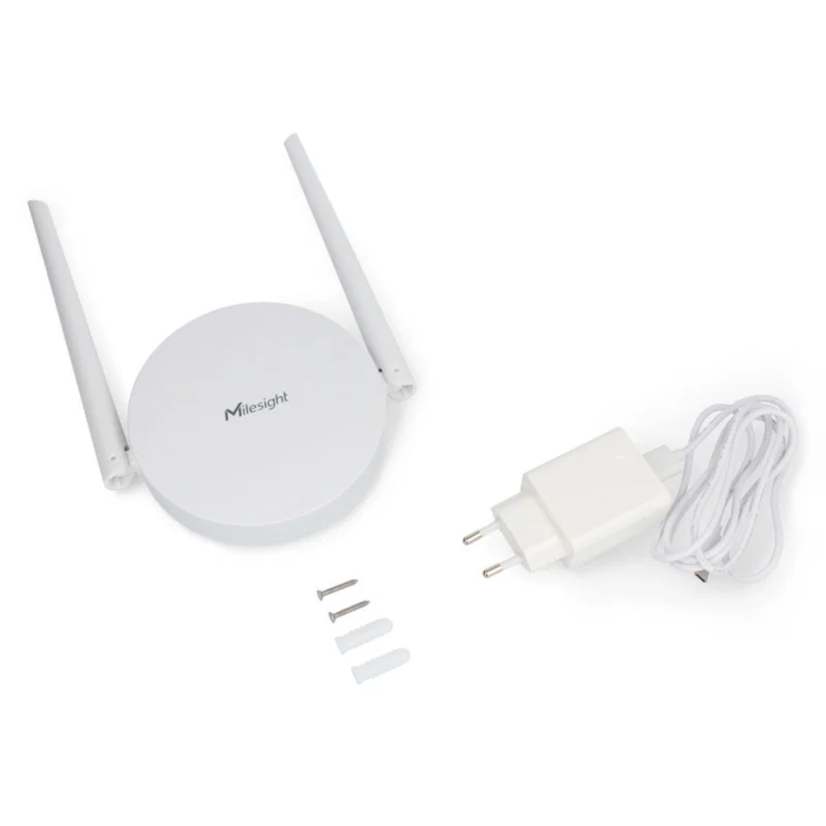

• Power: USB-C 5 V/2 A or PoE (via a splitter) — only one option included.
• Connectivity: Ethernet (optional 4G LTE Cat 1); Wi-Fi is for configuration only.
• Management: a built-in network server for up to 20 devices (forwards to an external one for more); set up via the web interface, remote management via the Milesight platform.

Parameters

Documentation

• Datasheet (PDF)
• User guide (PDF)
