Milesight WS201 Smart Fill Level Monitoring Sensor

A compact LoRaWAN® fill-level sensor using ToF technology to monitor small containers like tissue boxes. High accuracy, NFC setup, low power consumption for up to 2 years maintenance and IP30 protection. More
Manufacturer: Milesight Product code: 99.25.2009.0552

Free UK delivery from 220 GBP; minimum order 140 GBP. Prices are without VAT: UK import VAT and any duty are paid on delivery. All rates: Shipping and payment.

32,90 GBP excl. UK VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
A compact LoRaWAN® fill-level sensor using ToF technology to monitor small containers like tissue boxes. High accuracy, NFC setup, low power consumption for up to 2 years maintenance and IP30 protection. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: Milesight Product code: 99.25.2009.0552

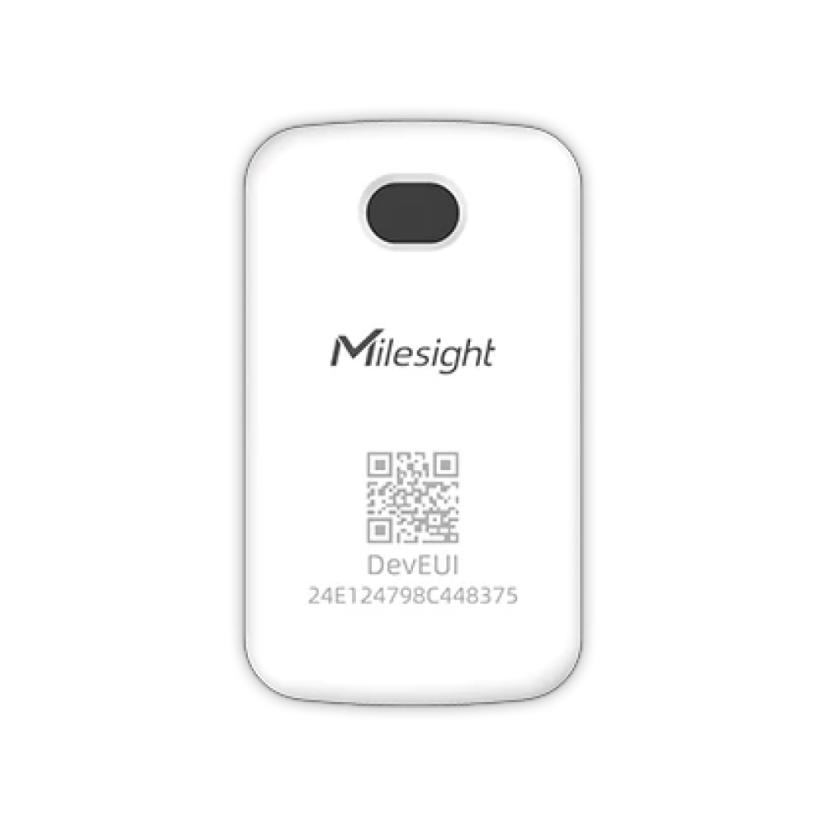

The Milesight WS201 is a wireless fill-level monitoring sensor that securely monitors a small container’s fill level, especially tissue boxes, using precise Time-of-Flight (ToF) sensing. With only 1 to 55 cm detection, it delivers accurate, non-contact measurements and supports low-level percentage-based alerts. It is designed for real-world settings with a moisture-resistant coating and ultra-compact design that fits metal environments like restroom stalls.

Battery-powered via a single coin cell (CR2450) lasts around 2 years and is easily configured via NFC with mobile apps. Compatible with standard LoRaWAN® networks and Milesight IoT Cloud, it enables real-time monitoring and automatic alerts, perfect for maintaining hygiene, reducing waste and streamlining maintenance.

Before you install

  • Setup: via the Milesight ToolBox app (NFC).
  • Power: a replaceable CR2450 battery, ~3.6-year life.
  • Data: over LoRaWAN, needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.

Parameters

Wireless Protocol

 LoRaWAN®, OTAA/ABP Class A; multi-region bands; Tx up to 16 dBm; Sensitivity –132 dBm @ 300 bps
Detection (ToF) Range: 1–55 cm;
FoV: 25° ±5°;
Accuracy: ±1 cm;
Resolution: 1 mm (1–15 cm), 2 mm (15–35 cm), 3 mm (35–55 cm)
Power 1 × 590 mAh CR2450 coin cell; battery life ~2 years (60-min reports, 25 °C, SF7 EU868)
Physical ABS+PC (flame-retardant), IP30; 66 × 38 × 12 mm; 24.7 g with battery
Environment Operating Temp: –10 °C to +60 °C;
RH: 0–95 % non-condensing
Installation Flat surface with 3M tape
Configuration Mobile app via NFC; threshold alarms; hibernate/sleep mode
Certifications CE, FCC, RoHS compliant

Documentation

Safety information

  • Read the manufacturer's user guide supplied with the product before installation and keep it.
  • Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
  • Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
  • Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
  • Keep batteries out of the reach of children.
  • A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
Manufacturing company XIAMEN MILESIGHT IOT CO.,LTD.
Address 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China
Email [email protected]
Responsible person in the EU HARDWARIO a.s.
Address of the responsible person in the EU U Jezu 525/4, 460 01 Liberec, Czech Republic
E-mail of the responsible person in the EU [email protected]
