PIR Module

PIR Module

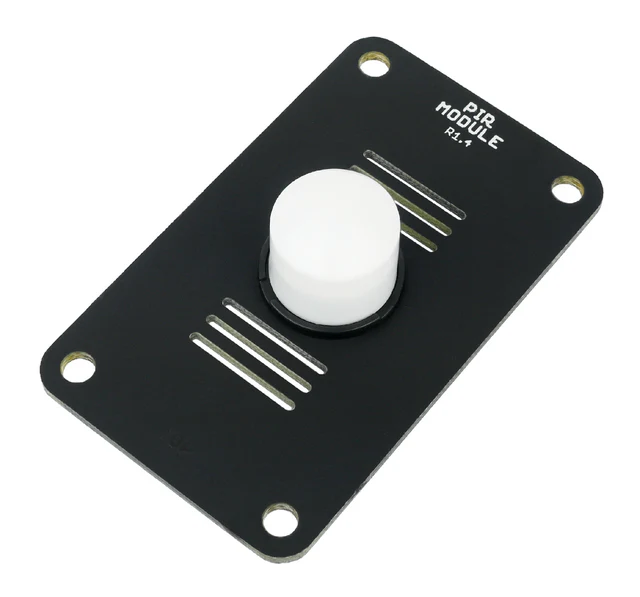

The PIR Module is a motion detector based on the passive infrared (PIR) principle. It can be used as a wireless motion detector mounted on a wall or ceiling. The module has an ultra-low-power digital sensor from Excelitas’ DigiPyro® family.​ More

Product code: 99.25.1417.5305

  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces

For orders of 200 pieces or more, contact us for an individual offer tailored to your needs.

Please note that discounts cannot be combined.


Free shipping on purchases over 130 USD.

27,15 USD excl. VAT (32,85 USD incl. VAT)
In stock
pcs

The PIR Module is a motion detector based on the passive infrared (PIR) principle. It can be used as a wireless motion detector mounted on a wall or ceiling. The module has an ultra-low-power digital sensor from Excelitas’ DigiPyro® family.​ More

Product code: 99.25.1417.5305

Features

  • Digital PIR detector PYQ-1648-7053 (Excelitas)
  • Fully digital processing (signal analysis takes place in the sensor)
  • Four-element sensor type
  • Omnidirectional lens Carclo Diamond 37
  • Resolution of the internal A/D converter: 14-bit
  • Detection angle: 98° (horizontally and vertically)
  • Maximal detection range: 5 m
  • Power consumption: approx. 3 μA
  • Operating voltage range: 2.5 V to 3.6 V
  • Operating temperature range: -20 to 70 °C
  • Dimensions: 33 x 55 mm
