CHESTER DevKit

CHESTER DevKit

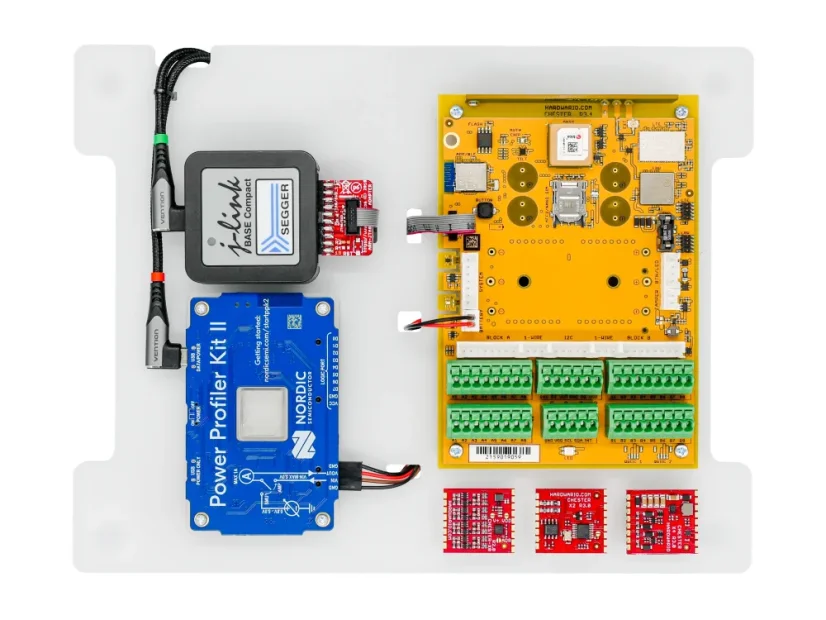

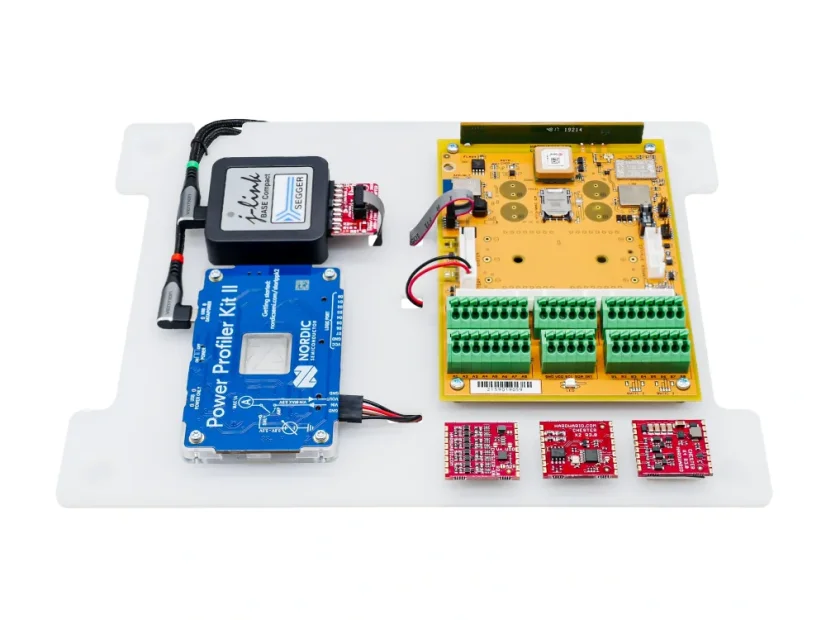

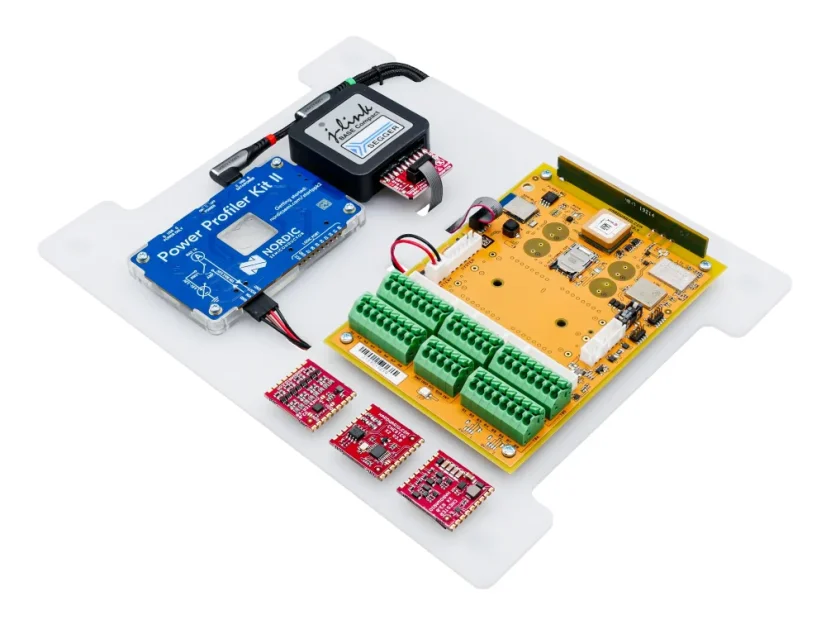

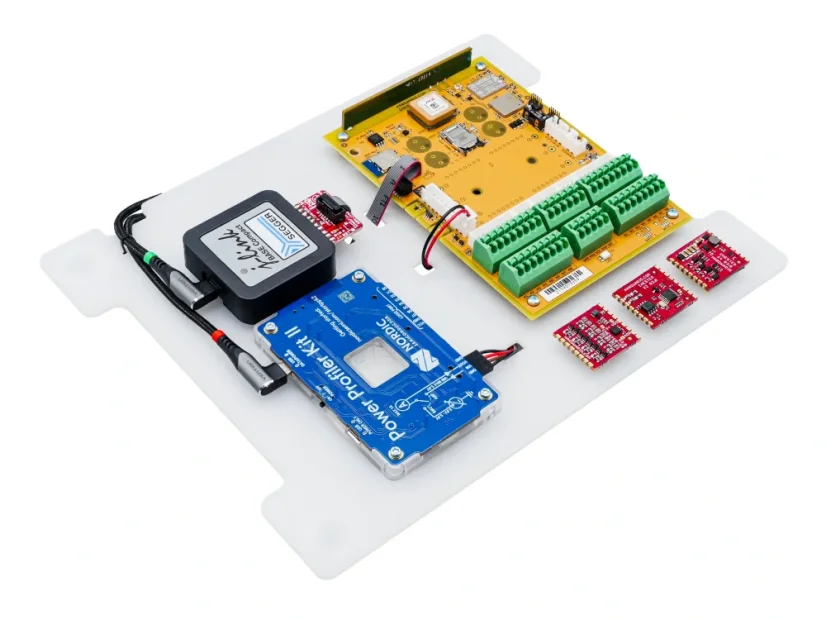

CHESTER DevKit is a development kit for writing your own firmware for the CHESTER IoT platform: a base board with Bluetooth Low Energy, NB-IoT/LTE-M, LoRaWAN and GNSS plus the CHESTER-X0, CHESTER-X2 and CHESTER-X4 expansion modules. More
Manufacturer: HARDWARIO Product code: 99.25.1550.4955

Free UK delivery from 220 GBP; minimum order 140 GBP. Prices are without VAT: UK import VAT and any duty are paid on delivery. All rates: Shipping and payment.

3-year HARDWARIO guarantee. Details in our terms.

909 GBP excl. UK VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
CHESTER DevKit is a development kit for writing your own firmware for the CHESTER IoT platform: a base board with Bluetooth Low Energy, NB-IoT/LTE-M, LoRaWAN and GNSS plus the CHESTER-X0, CHESTER-X2 and CHESTER-X4 expansion modules. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1550.4955

The kit is for developers writing their own firmware for CHESTER, a configurable IoT platform that connects devices to the internet even without mains power or a wired connection. You explore the CHESTER SDK and Zephyr RTOS and build firmware for your own requirements.

  • Base board: Bluetooth Low Energy, NB-IoT/LTE-M, LoRaWAN and GNSS communication.
  • CHESTER-X0: Up to 4 digital and analog inputs and outputs: 4–20 mA current loops, 0–10 V voltage inputs, dry contacts, NPN or PNP inputs and a 5 V boost converter.
  • CHESTER-X2: TTL/UART and RS-485 interfaces, for example for Modbus communication.
  • CHESTER-X4: A DC/DC converter that supplies power from an external 6–28 V DC source and monitors the input voltage.

The expansion modules sit on spring connectors, so you can swap interfaces during development. The CHESTER SDK has its source on GitHub.

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • Keep a distance of at least 20 cm between the device and people while it operates.
  • Open the enclosure only in a clean, dry place. The electronics are sensitive to electrostatic discharge: touch a grounded object before handling them.
  • Disconnect external power before you open the enclosure or replace the battery.
  • Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
  • Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
  • Keep batteries out of the reach of children.
  • A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
  • Lithium batteries are dangerous goods in transport. When shipping, follow the carrier's rules for lithium batteries.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
Email [email protected]
