EURCHESTER Push
CHESTER Push
Buying in volume? Write to [email protected] for an individual offer.
Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.
EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).
3-year HARDWARIO guarantee. Details in our terms.
Price includes a WEEE recycling fee for the Czech Republic.
Price includes a WEEE recycling fee for the Czech Republic.

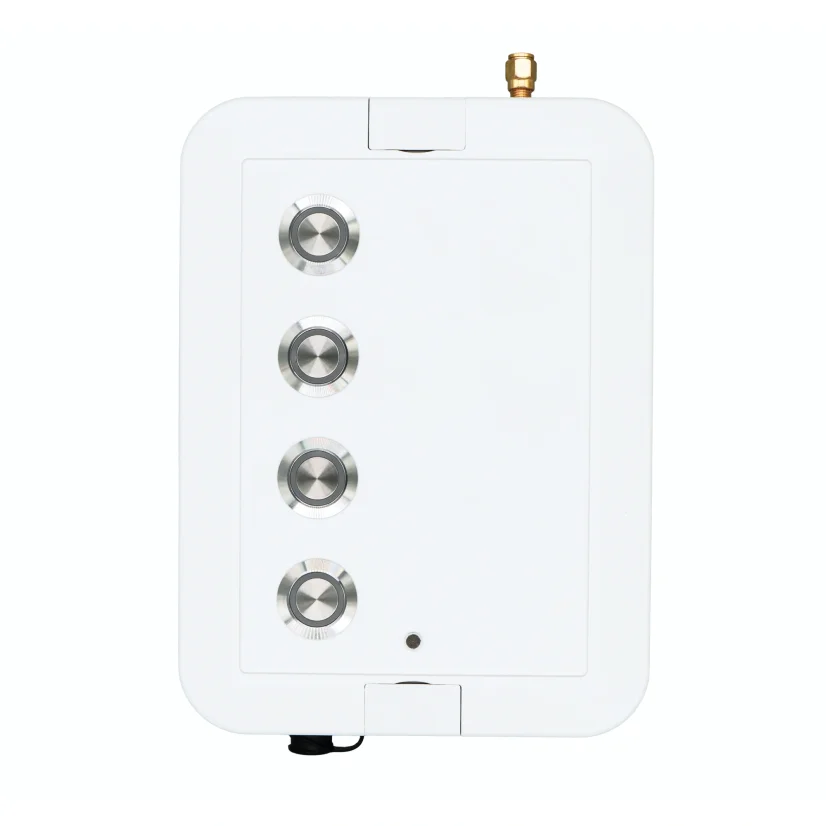

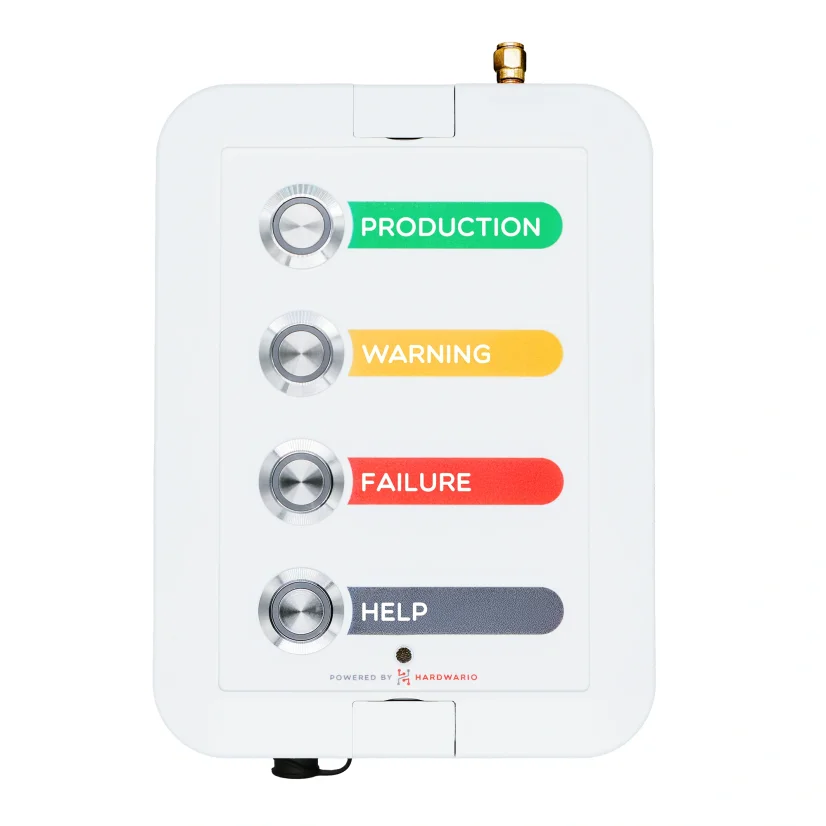

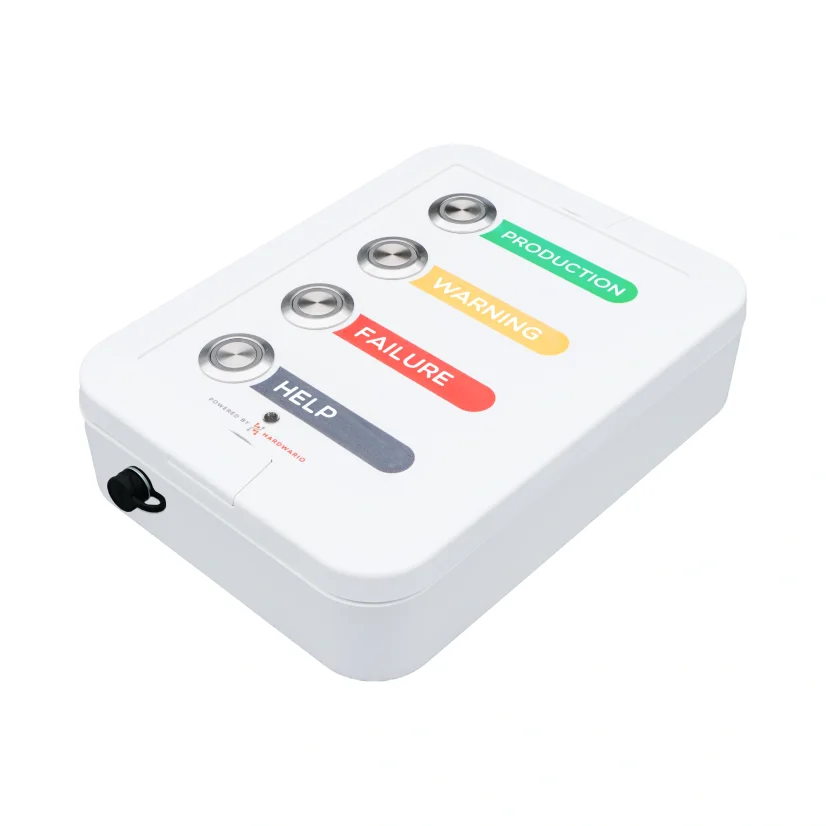

Designed for instant messaging when a button is pressed, it provides instant visual and audio response via backlit buttons and a built-in buzzer. Thanks to two-way communication, the backlighting of the buttons can be changed remotely or set to a received press event. CHESTER Push records the number of times each button is pressed and held so that the most used actions can be evaluated.
Examples of use: ANDON notification systems in production, emergency buttons in buildings and signaling the need for maintenance.
CHESTER Push is the cornerstone of our Production Report product.
Technical specifications
| Power supply method | 6–26 VDC + backup battery |
| Number of ALU buttons | 4 |
| Nominal backup battery voltage | 3.7 V |
| Nominal backup battery capacity | 2 150 mAh |
| Idle power consumption | < 180 μA |
| Operating temperature range | -30 to +70 °C |
| Storage temperature range | -30 to +70 °C |
HARDWARIO Cloud
Every CHESTER device can be connected to the HARDWARIO Cloud and managed in a clear user interface. You can group devices into organizations and groups and assign access to other users.
With user-defined HTTP/S callbacks, data can be delivered instantly to your HTTP/S endpoint, and the JSON message structure can be easily modified using JSONata. Integration with your favorite applications is fast and seamless.

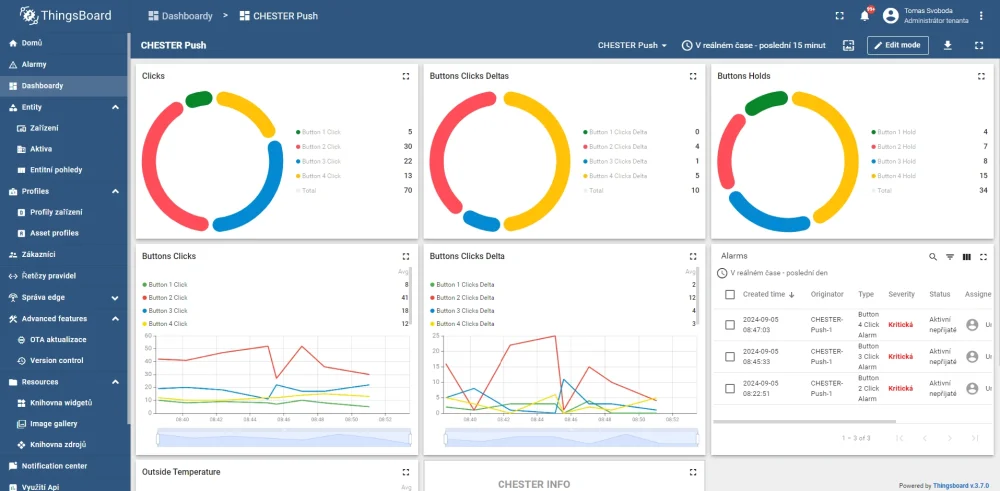

Dashboards
See all your data clearly in a customizable dashboard. You can use a pre-made solution, or we can customize the dashboard to fit your needs. You can see the data in real time, and a history that goes back up to a year is also available. You can easily set the period you are interested in: by weeks, months, etc.
Resources
Safety information
- Read the documentation at docs.hardwario.com before installing the product.
- Use the product only for its intended use and within the operating conditions given in its documentation.
- Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
- The product is not designed for potentially explosive atmospheres.
- Keep a distance of at least 20 cm between the device and people while it operates.
- Open the enclosure only in a clean, dry place. The electronics are sensitive to electrostatic discharge: touch a grounded object before handling them.
- Disconnect external power before you open the enclosure or replace the battery.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
- Lithium batteries are dangerous goods in transport. When shipping, follow the carrier's rules for lithium batteries.
| Manufacturing company | HARDWARIO a.s. |
|---|---|
| Address | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| [email protected] |
