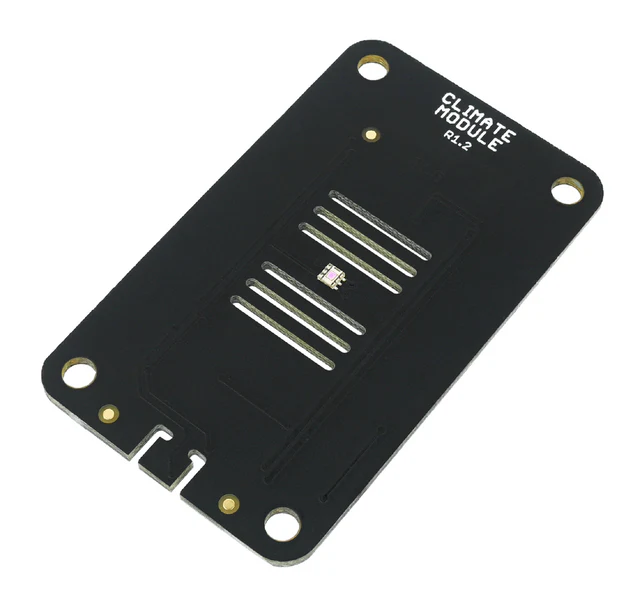

Climate Module

Climate Module


The Climate Module integrates four environmental sensors: temperature, humidity, light intensity, and atmospheric pressure. All digital sensors feature low-power operating modes and are connected using the I²C bus. It is a great product for environmental monitoring, weather stations, etc. More

Product code: 99.24.1340.9961

  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces
  • 15% discount when purchasing 200 or more pieces
  • 20% discount when purchasing 1,000 or more pieces

Free shipping on purchases over 120 EUR.

14,90 EUR excl. VAT (18,03 EUR incl. VAT)
In stock
pcs

The Climate Module integrates four environmental sensors: temperature, humidity, light intensity, and atmospheric pressure. All digital sensors feature low-power operating modes and are connected using the I²C bus. It is a great product for environmental monitoring, weather stations, etc. More

Product code: 99.24.1340.9961

You can use the Climate Module, the Mini Battery Module, and the Core Module to create a very compact wireless environmental sensor.

Features

Temperature sensor TMP112 (TI)
  • Measurement accuracy (typical):
  • ± 0.1 °C at 25 °C
  • ± 0.25 °C in the range 0 °C to 65 °C
  • ± 0.5 °C in the range -40 °C to 125 °C
  • 12-bit resolution (0.0625 °C)
  • Milling around the sensor for faster temperature response
  • Operating current: 7 μA (4 Hz sampling)
  • Standby current: 2 μA
Relative humidity sensor SHT20 (Sensirion)
  • Measurement range: from 0 % to 100 %
  • Measurement accuracy (typical): ±2 %
  • Operating current: 10 μA
Atmospheric pressure sensor MPL3115A2 (NXP)
  • Measurement range for pressure: 20 kPa to 110 kPa
  • Measurement range for altitude: -698 to 11,775 m
  • Measurement accuracy: ± 0.4 kPa
  • Operating current: 40 μA (1 Hz period)
  • Standby current: 2 μA
Light intensity sensor OPT3001 (TI)
  • Measurement range: from 0.01 to 83,000 lux
  • 23-bit dynamic range
  • Operating current: 1.8 μA
  • Standby current: 0.3 μA
Common features
  • All sensors communicate using the I²C bus
  • Operating voltage range: 1.6 V to 3.3 V
  • Operating temperature range: -40 to 70 °C
  • Dimensions: 33 x 55 mm
