EURInternal LTE/GNSS Antenna Molex 213353-0150, U.FL, 150 mm cable
Internal LTE/GNSS Antenna Molex 213353-0150, U.FL, 150 mm cable

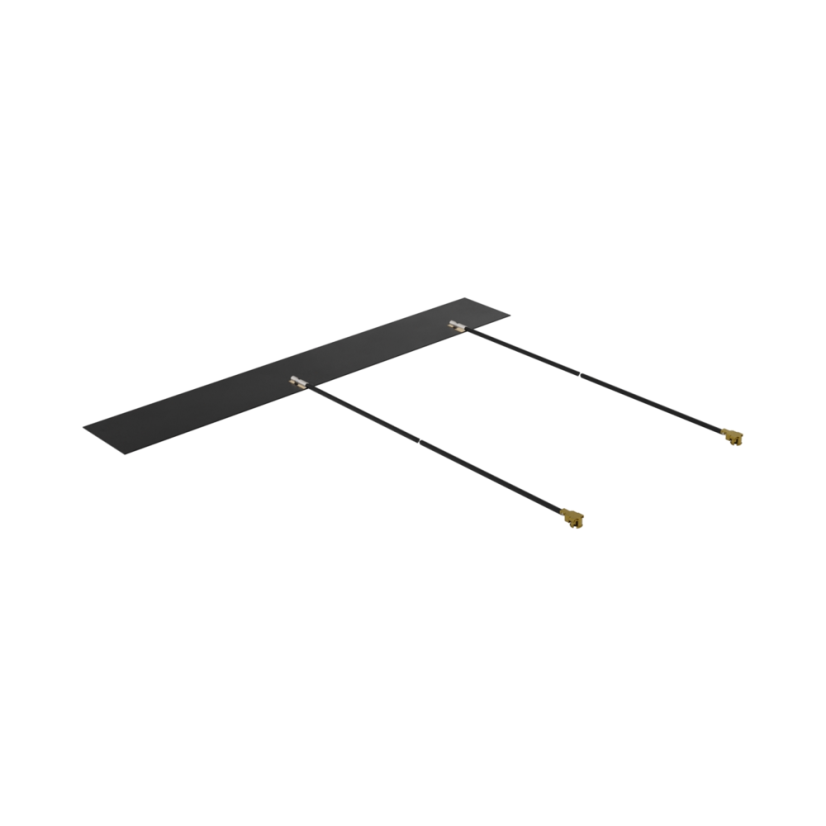

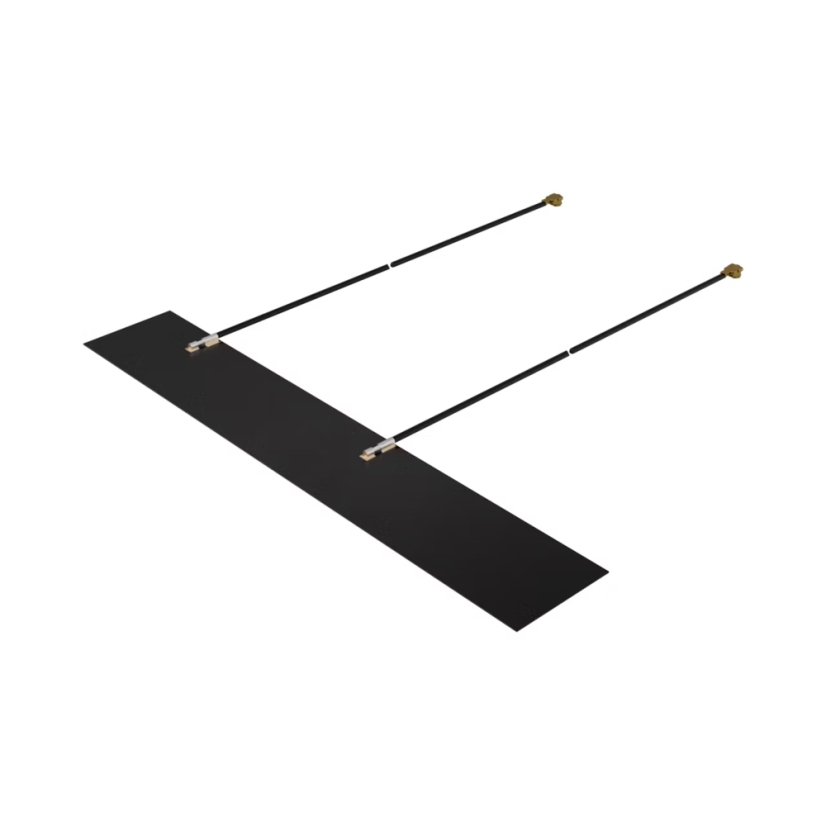

Flexible combo antenna for LTE and GNSS (GPS, GLONASS, BeiDou) in one, for the CHESTER-U1 module. 150 mm cable with U.FL connector, adhesive mounting. More
Manufacturer: Molex
Product code: 99.25.1274.6106
Free shipping within the Czech Republic on purchases over 120 EUR.
3,29 EUR
excl. VAT (3,98 EUR incl. VAT)
Flexible combo antenna for LTE and GNSS (GPS, GLONASS, BeiDou) in one, for the CHESTER-U1 module. 150 mm cable with U.FL connector, adhesive mounting. More
Manufacturer: Molex
Product code: 99.25.1274.6106
The Molex 213353-0150 is a flexible embedded antenna that combines a cellular (LTE) antenna and a satellite positioning (GNSS – GPS, GLONASS, BeiDou) antenna on one thin strip. A device with an LTE modem and a GNSS receiver needs one antenna instead of two.
It is the antenna for the CHESTER-U1 module. It connects with a 150 mm cable and a U.FL (I-PEX MHF) connector and is mounted by adhesive.
Parameters
| Frequency ranges | 698–960, 1,400–1,500, 1,500–1,700, 1,700–2,700, 3,300–4,200, 4,400–5,000, 5,900–8,500 MHz |
| GNSS | GPS L1 (1,573–1,576 MHz), GLONASS (1,598–1,606 MHz), BeiDou (1,558–1,563 MHz) |
| Peak gain | 2.5 dBi @ 698 MHz, 2.3 dBi @ 1,400 and 1,500 MHz, 5.4 dBi @ 1,700 and 3,300 MHz, 4.5 dBi @ 4,400 MHz, 7.0 dBi @ 5,900 MHz |
| Total efficiency | > 60 % (1,400–4,400 MHz), > 50 % (GPS, GLONASS), > 45 % (BeiDou) |
| Polarization | Linear |
| Radiation pattern | Omnidirectional |
| Connector | U.FL (I-PEX MHF) |
| Cable length | 150 mm |
| Dimensions | 119.4 × 19.4 × 0.1 mm |
| Weight | 1.85 g |
| Mounting | Adhesive |
| RoHS | Compliant (EU 2015/863) |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
| Manufacturing company | Molex, LLC |
|---|---|
| Address | 2222 Wellington Ct, Lisle, IL 60532, USA |
| [email protected] | |
| Manufacturer's representative in the EU | HARDWARIO a.s. |
| Address of representative in the EU | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| EU representative email | [email protected] |
