LCD Module - BG

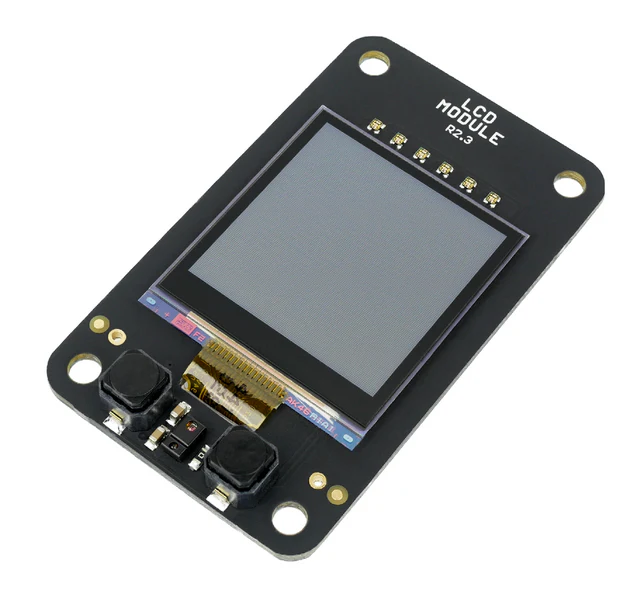

The LCD Module uses a unique technology—the so-called memory display developed by Sharp. It provides a resolution of 128 x 128 pixels in a 1.28-inch size. It implements an ultra-low-power display controller, so you can have an active graphical display with a long battery life. More
Manufacturer: HARDWARIO Product code: 99.25.1418.4345

Volume discounts:


  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces

For order quantities of 200+ pcs, please contact us for an individual offer. Please note that discounts cannot be combined.


Free shipping within the Czech Republic on purchases over 120 EUR.

45,90 EUR excl. VAT (55,54 EUR incl. VAT)

Price includes a WEEE recycling fee for the Czech Republic.

In stock
The LCD Module uses a unique technology—the so-called memory display developed by Sharp. It provides a resolution of 128 x 128 pixels in a 1.28-inch size. It implements an ultra-low-power display controller, so you can have an active graphical display with a long battery life. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1418.4345
You can control your application using the two buttons below the LCD screen. The module is also equipped with a gesture sensor (Avago APDS-9960). This circuit, composed of the infrared transmitter and four directional photodiodes responding to different wavelengths, can also be used to measure the light intensity and color or as a proximity sensor. The LCD Module also includes six RGB LEDs, which can indicate status or act as a light alarm. A typical use case for the LCD Module is a wireless thermostat, or it can display values directly from various indoor and outdoor sensors. The LCD Module can also function as a unique status display for the Turris Omnia router.


Features

  • Memory LCD Display LS013B7DH03 (Sharp)
    • Resolution: 128 x 128 pixels
    • Size: 1.28 inch
  • Two buttons
  • Gesture sensor APDS-9960 (Avago)
    • Motion
    • Light intensity
    • Zoom
  • 6x miniature RGB LEDs
  • Typical power consumption < 16 μA
  • Operating voltage range: 2.7 V to 3.3 V
  • Operating temperature range: -20 to 70 °C
  • Dimensions: 33 x 55 mm

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
Email [email protected]
