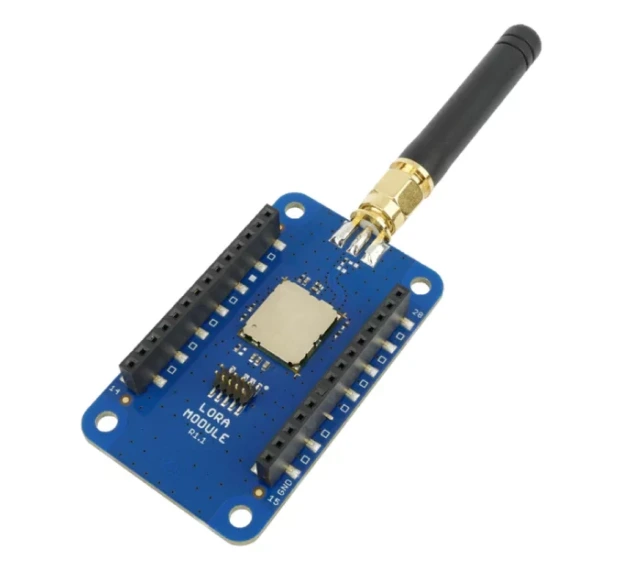

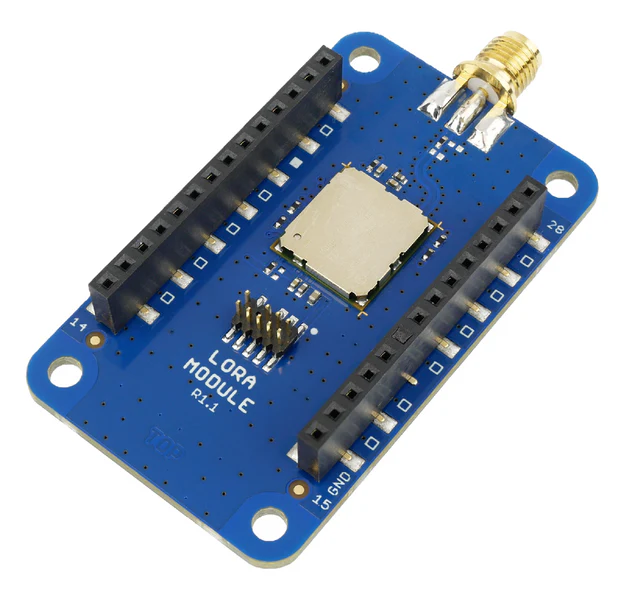

LoRa Module

The LoRa Module allows you to communicate to the LoRaWAN wireless network, a network made for the IoT. This technology makes it possible to communicate from a battery-powered device directly to a server, even for several years. The LoRa Module uses a radio frequency of 868 MHz. More

Product code: 99.25.1428.7593

5% discount when purchasing 10 or more pieces
10% discount when purchasing 50 or more pieces

For orders of 200 pieces or more, contact us for an individual offer tailored to your needs.

Please note that discounts cannot be combined.

Free shipping on purchases over 120 EUR.

19,90 EUR excl. VAT (24,08 EUR incl. VAT)

Product code: 99.25.1428.7593

Description

The LoRa device can communicate with the gateway over tens of kilometers thanks to specific zig-zag modulation. This network has a wide range of applications. It is particularly useful in energy consumption meters (e.g., water meters, gas meters, etc.), environmental sensors (e.g., a CO₂ sensor), and also in applications for early reports of accidents or defects (e.g., water leak detector).

Features

LoRaWAN module CMWX1ZZABZ-078 (Murata)
Communication using UART and AT commands
SMA antenna ANT-SS900
Standby power consumption 2 μA
Operating voltage range: 1.8 to 3.6 V
Operating temperature range: -20 to 70 °C
Dimensions: 33 x 55 mm
