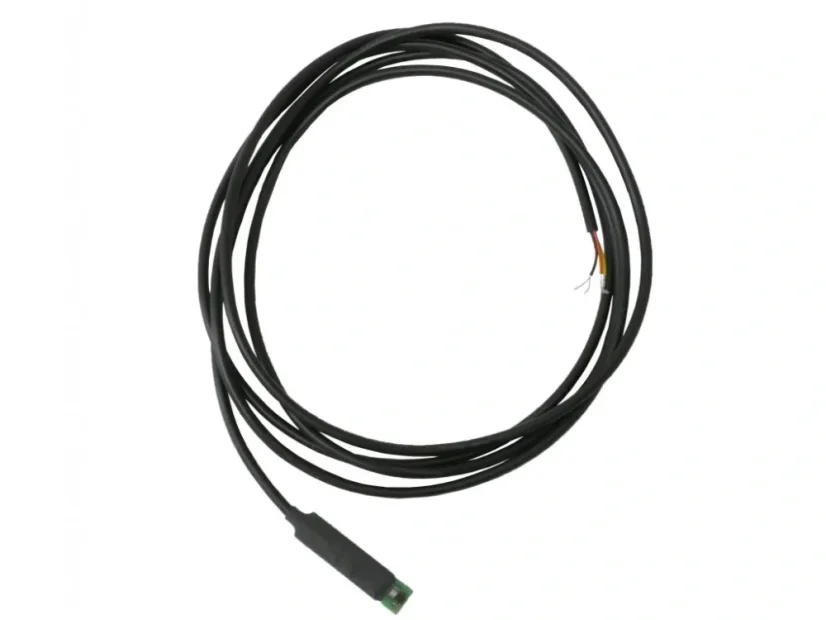

Machine Probe, 2 m cable
Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.
EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).
3-year HARDWARIO guarantee. Details in our terms.
Price includes a WEEE recycling fee for the Czech Republic.
Price includes a WEEE recycling fee for the Czech Republic.
Machine Probe is a 1-Wire output flexible multi-sensor designed for multipurpose sensing or monitoring in industry, production or many other applications. With HARDWARIO CHESTER it can be used as an independent sensor solution using a wireless LPWAN network connection (NB-IoT or LoRaWAN). Low-power design allows long lifespan battery.
Features

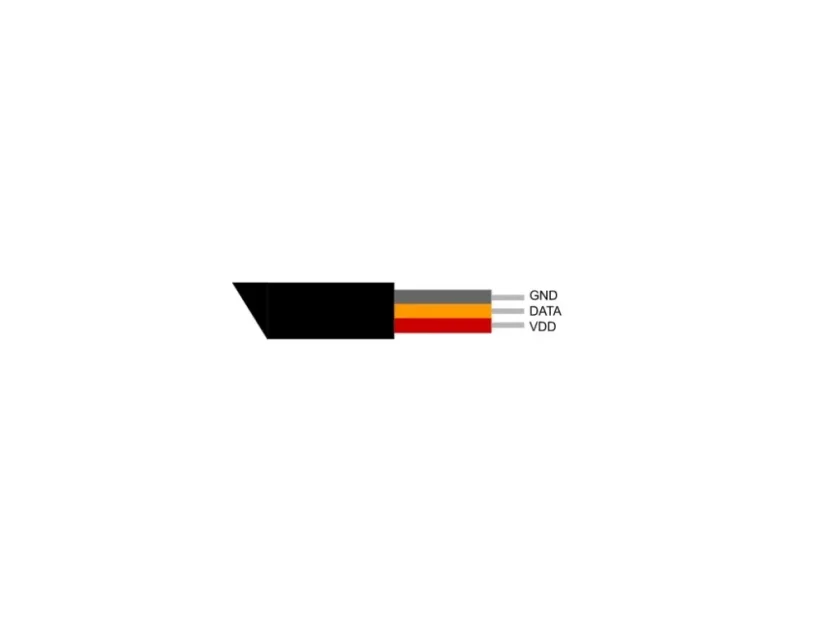

- Digital 1-Wire bus communication
- Low power supply voltage (3.3V)
- Low power consumption (battery applications)
- Standard cable length: 2 m

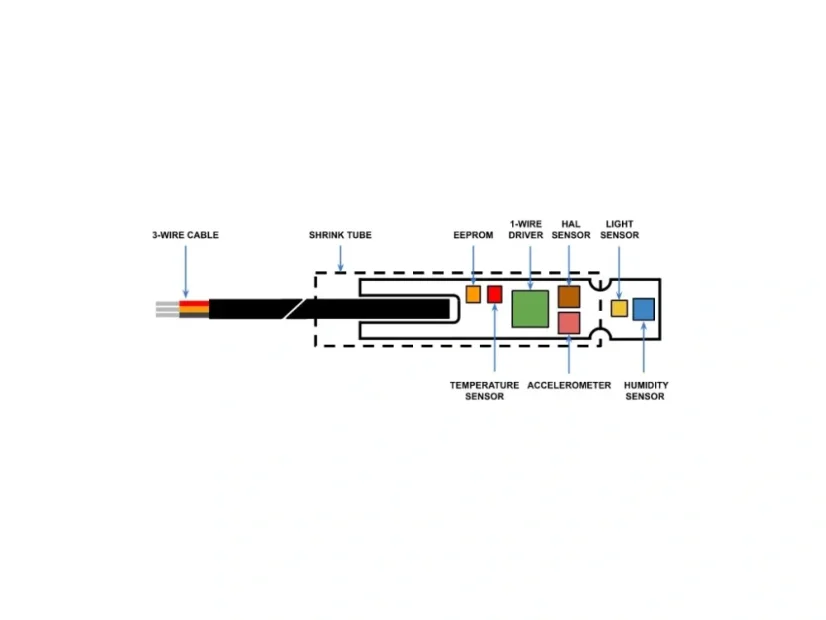

Integrated Sensors
- Acceleration (LIS2DH12)
- Magnetic Hall effect (SI7210)
- Temperature (TMP112)
- Light intensity (OPT3001)
- Relative air humidity (SHT30)
Applications
- Industry 4.0 and OEE
- Machinery monitoring
- Assembly line sensing
- Production monitoring
- Motor vibration or movement sensing
- Device status monitoring
- Environmental monitoring
Basic Parameters
| Parameter | Min. | Max. | Unit |
|---|---|---|---|
| Operating supply voltage | 2.45 | 3.6 | V |
| Operating temperature range | -10 | +50 | °C |
| Storage temperature | -20 | +60 | °C |
| Operating relative air humidity | 0 | 95 | % |
| Storage relative air humidity | 0 | 95 | % |
Sensor Parameters
| Parameter | Unit | Min. | Max. | Typical Accuracy |
|---|---|---|---|---|
| Acceleration | g | -2 | 2 | ±40 mg zero-g level offset accuracy |
| Magnetic field | mT | 0.2 | 20 | 5% 13-bit dynamic range |
| Temperature | °C | -40 | 125 | ±0.1 °C at 25 °C ±0.25 °C from 0 °C to 65 °C ±0.5 °C from -40 °C to 125 °C 12-bit resolution (0.0625 °C) |
| Light intensity | lux | 0.01 | 83,000 | 23-bit dynamic range |
| Relative air humidity | % | 0 | 100 | ±2 % |
Safety information
- Read the documentation at docs.hardwario.com before installing the product.
- Use the product only for its intended use and within the operating conditions given in its documentation.
- Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
- The product is not designed for potentially explosive atmospheres.
- Connect the sensor only to HARDWARIO devices as described in the documentation.
- Route and fix the cable so that it cannot be damaged or pinched and nobody can trip over it.
- Observe the temperature range and the ingress protection given in the documentation.
| Manufacturing company | HARDWARIO a.s. |
|---|---|
| Address | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| [email protected] |
