Milesight AM102 - Indoor Ambience Sensor (2 in 1)

LoRaWAN® indoor temperature and humidity sensor with a 2.13" E-Ink display. High-precision Sensirion element, over 7-year battery life and NFC configuration. More
Manufacturer: Milesight Product code: 99.26.3613.4892

Free shipping within the Czech Republic on purchases over 120 EUR.

65,90 EUR excl. VAT (79,74 EUR incl. VAT)

Price includes a WEEE recycling fee for the Czech Republic.

In stock at supplier
LoRaWAN® indoor temperature and humidity sensor with a 2.13" E-Ink display. High-precision Sensirion element, over 7-year battery life and NFC configuration. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: Milesight Product code: 99.26.3613.4892

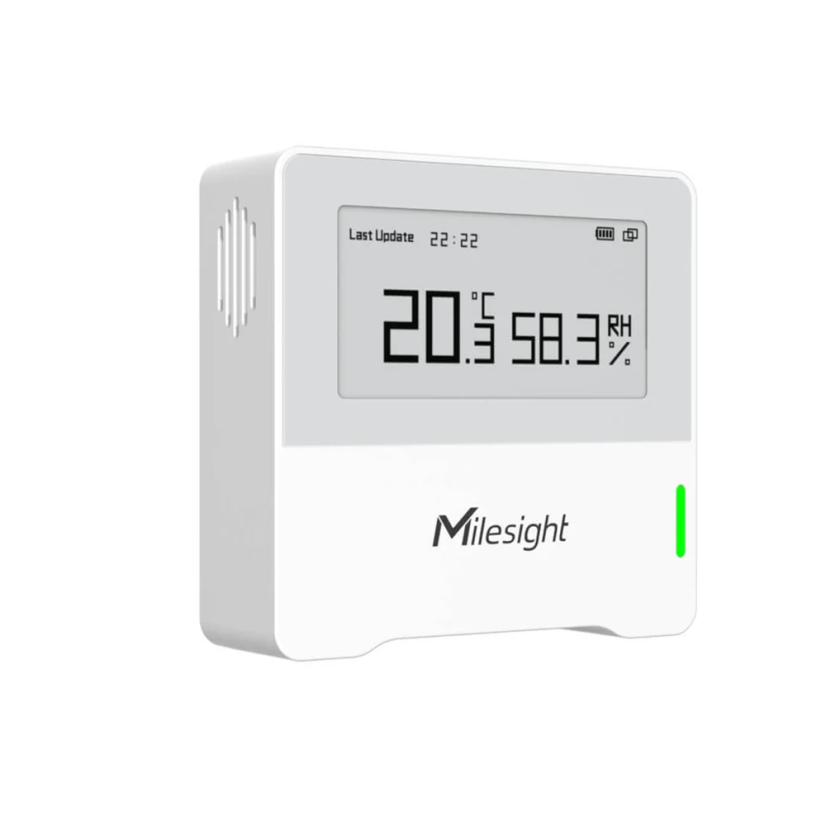

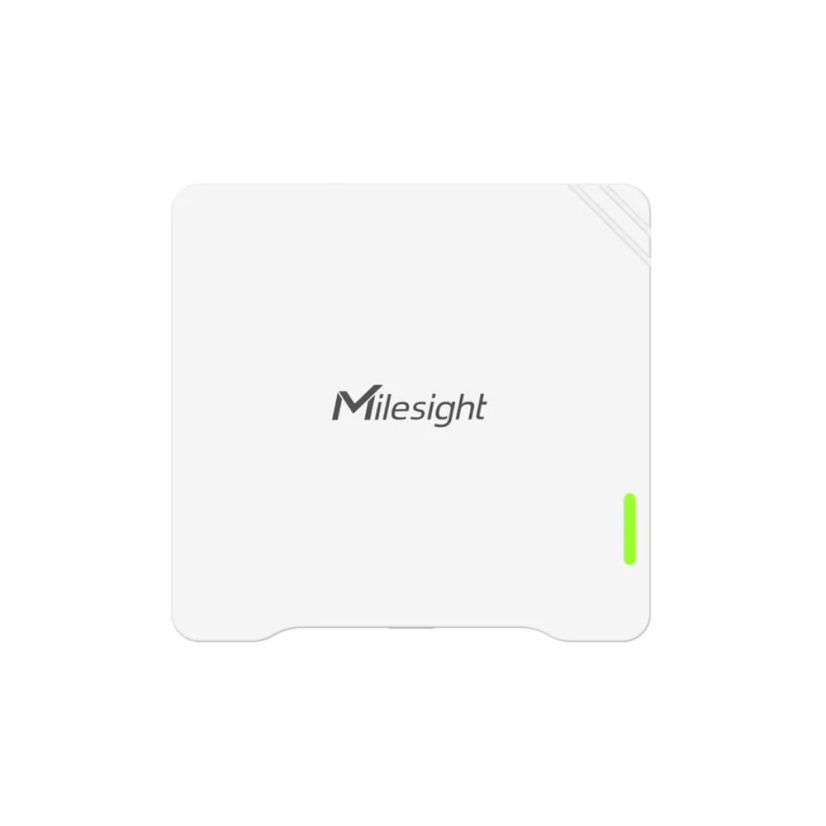

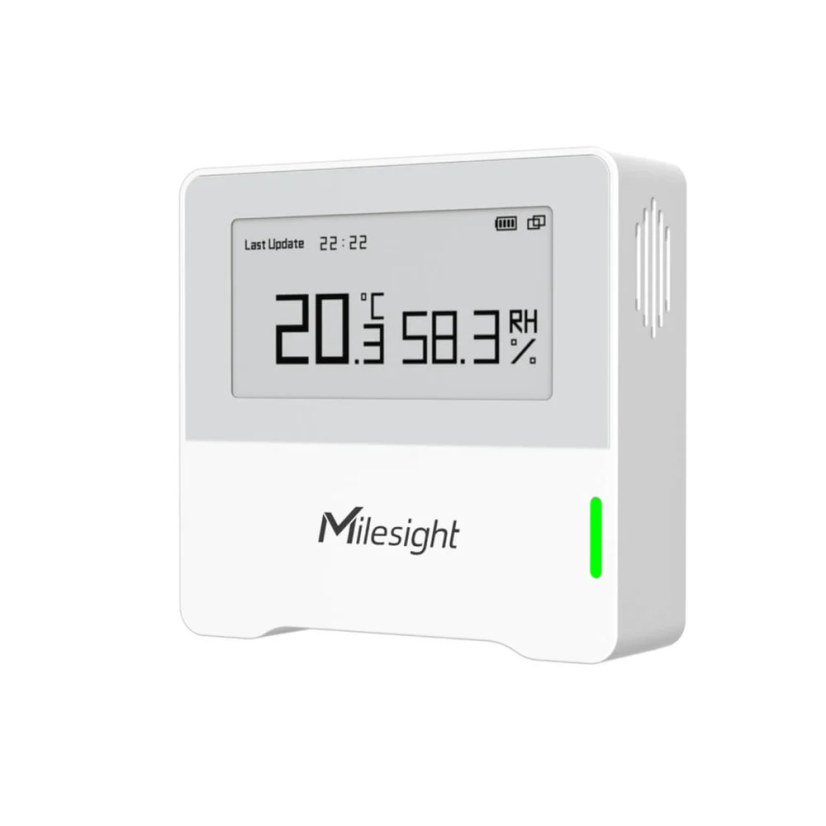

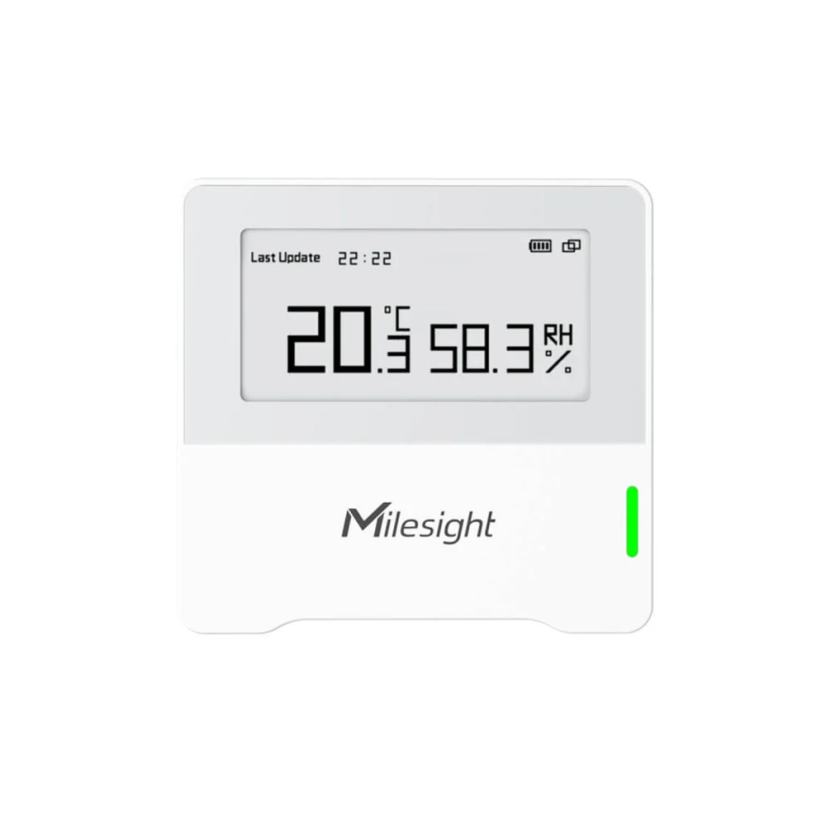

The Milesight AM102-868M is a compact indoor ambience sensor that measures temperature and humidity with a high-precision Sensirion element and shows readings on a 2.13" black-and-white E-Ink display. It transmits over LoRaWAN® to any standard gateway and network server or the Milesight IoT Cloud.

Powered by two replaceable 2700 mAh Li-SOCl₂ batteries, it runs for over 7 years, stores records locally with retransmission and threshold alarms, and is configured via NFC. Its IP30 PC+ABS housing suits offices, stores, classrooms and healthcare.

Before you install

  • Setup: via the Milesight ToolBox app (NFC).
  • Power: 2× lithium batteries (ER14505), 7+ year life.
  • Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. It also shows readings on its display.

Parameters

Wireless Protocol LoRaWAN®, Class A (OTAA/ABP)
Frequency EU868, max. 16 dBm
Measured Parameters Temperature, Humidity (2-in-1)
Temperature –20 °C to +60 °C, accuracy ±0.2 °C (0–60 °C), resolution 0.1 °C
Humidity 0–100 % RH, accuracy ±2 % (@25 °C), resolution 0.5 % RH
Display 2.13" black & white E-Ink
Configuration NFC via Mobile App, Downlink
Battery 2 × 2700 mAh Li-SOCl₂ (ER14505), over 7 years
Enclosure PC+ABS, IP30 (indoor)
Dimensions 68 × 65 × 20.5 mm
Mounting Wall (3M tape or screws)
Certifications CE, RED, FCC, ISED, RoHS

Documentation

Safety information

  • Read the manufacturer's user guide supplied with the product before installation and keep it.
  • Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
  • Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
  • Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
  • Keep batteries out of the reach of children.
  • A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
Manufacturing company XIAMEN MILESIGHT IOT CO.,LTD.
Address 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China
Email [email protected]
Manufacturer's representative in the EU HARDWARIO a.s.
Address of representative in the EU U Jezu 525/4, 460 01 Liberec, Czech Republic
EU representative email [email protected]
