EURMilesight AM305L - Indoor Air Quality Sensor (5 in 1)
Milesight AM305L - Indoor Air Quality Sensor (5 in 1)
LoRaWAN® 5-in-1 indoor sensor: temperature, humidity, CO₂ (NDIR), light and PIR motion. Milesight D2D, up to 11-year battery life, USB-C and NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3732.3197
Free shipping within the Czech Republic on purchases over 120 EUR.
239 EUR
excl. VAT (289,19 EUR incl. VAT)
Price includes a WEEE recycling fee for the Czech Republic.
LoRaWAN® 5-in-1 indoor sensor: temperature, humidity, CO₂ (NDIR), light and PIR motion. Milesight D2D, up to 11-year battery life, USB-C and NFC configuration. More
Price includes a WEEE recycling fee for the Czech Republic.
Manufacturer: Milesight
Product code: 99.26.3732.3197

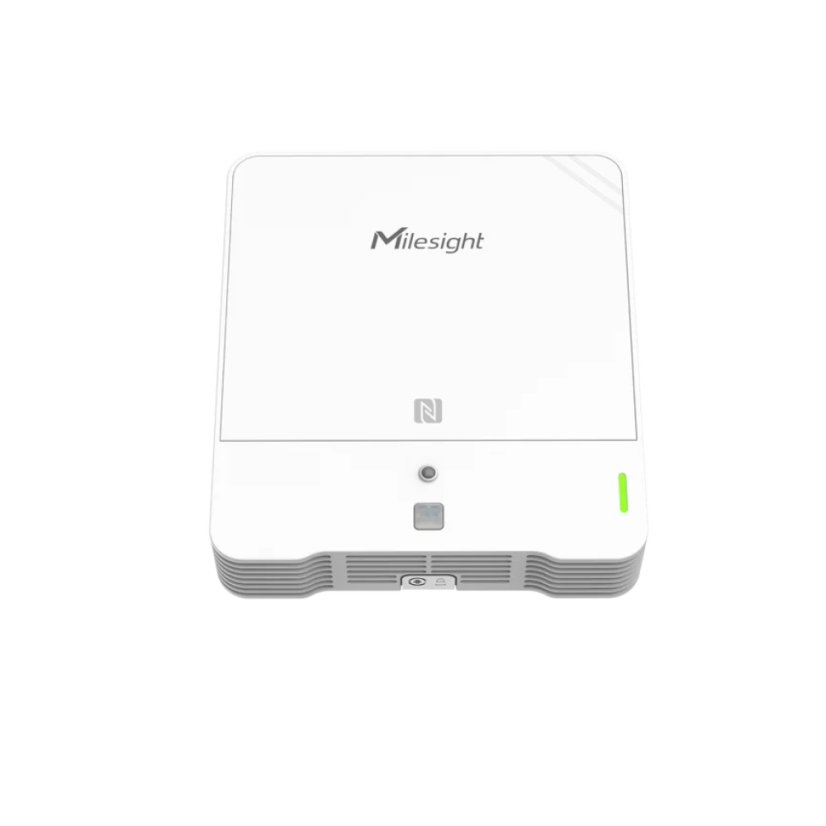

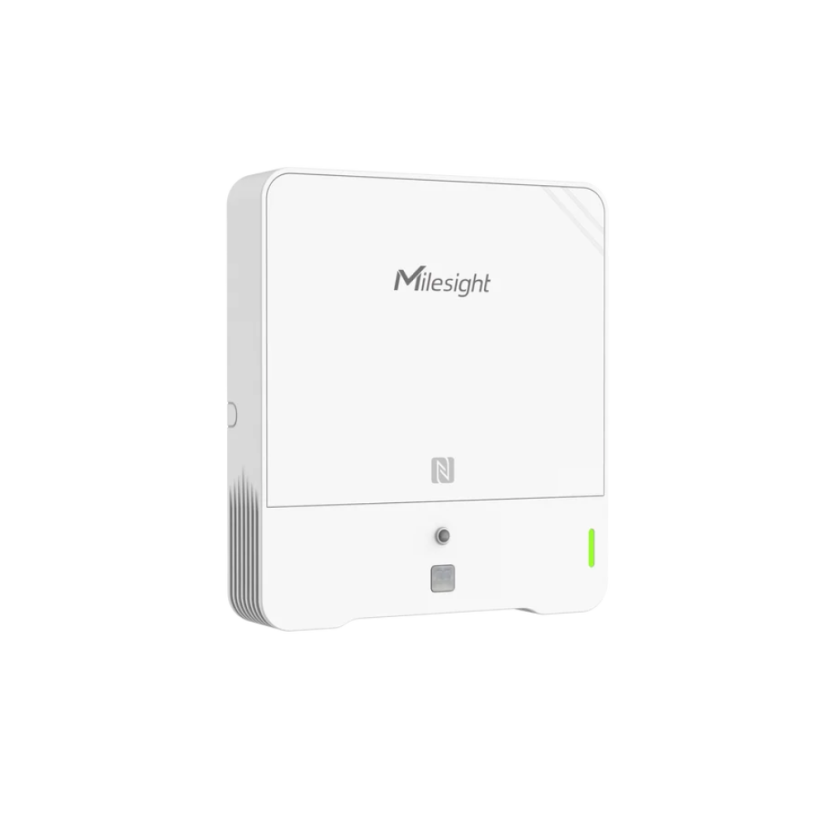

The Milesight AM305L-868M is a 5-in-1 indoor air-quality sensor measuring temperature, humidity, CO₂ (NDIR, 400–5000 ppm), light and PIR motion. As the "L" (LoRaWAN-only) variant it has no display; a three-colour traffic-light LED indicates device and CO₂ status.
It runs LoRaWAN® Class A with Milesight D2D support, is powered by four replaceable Li-SOCl₂ batteries (up to 11 years) or USB-C, and stores up to 18,000 records with retransmission. Configuration is via NFC. Suited to offices, classrooms, meeting rooms, hospitals, hotels and retail.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: lithium batteries (ER14505) or USB-C.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. Also supports Milesight D2D for direct control without a gateway.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP), Milesight D2D support |
| Frequency | EU868, max. 16 dBm |
| Measured Parameters | Temperature, Humidity, CO₂, Light, PIR motion (5-in-1) |
| Temperature | –20 °C to +60 °C, accuracy ±0.2 °C (0–60 °C), resolution 0.1 °C |
| Humidity | 0–100 % RH, accuracy ±2 % (@25 °C), resolution 0.5 % RH |
| CO₂ | NDIR, 400–5000 ppm, accuracy ±(30 ppm + 3 % of reading), resolution 1 ppm |
| Light Measurement | 0–60,000 lux, resolution 1 lux |
| Motion Detection | PIR, FoV 80° H / 55° V, up to 3 m |
| Display | None (three-colour traffic-light LED) |
| Configuration | NFC via Mobile App, USB-C, Downlink |
| Battery | 4 × 2700 mAh Li-SOCl₂ (ER14505) or USB-C, up to 11 years |
| Enclosure | PC+ABS (UL94 V0), IP30 (indoor) |
| Dimensions | 100.8 × 114 × 22 mm |
| Weight | 188 g (with batteries) |

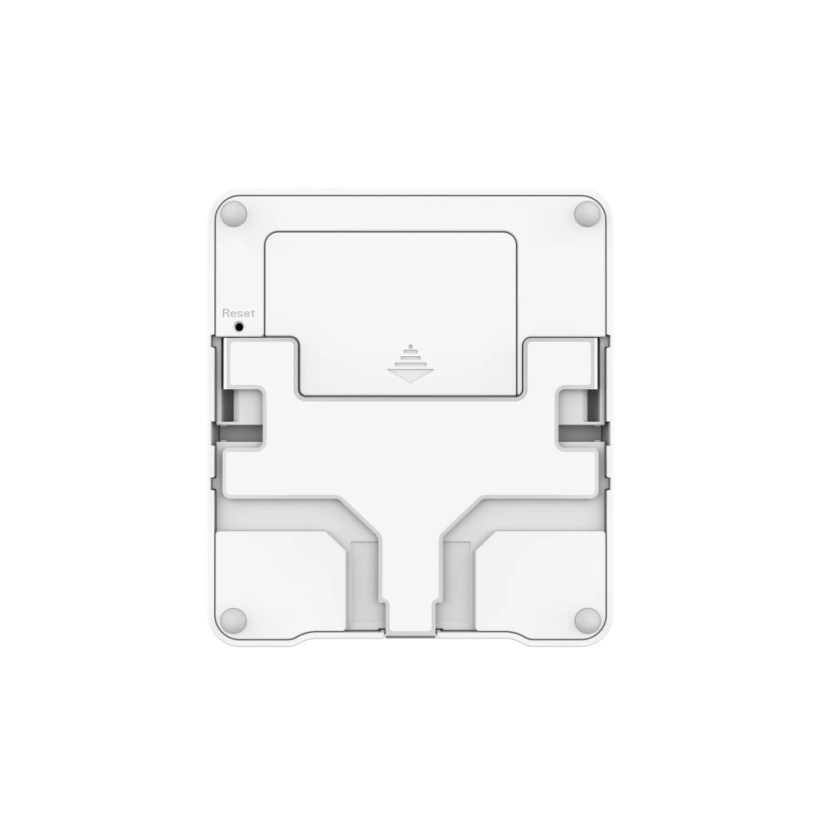

| Mounting | Wall (3M tape or screws) |
| Certifications | CE, RED, FCC, ISED, RoHS |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
