EURMilesight AM307 - Indoor Air Quality Sensor (7 in 1)
Milesight AM307 - Indoor Air Quality Sensor (7 in 1)
LoRaWAN® 7-in-1 indoor air quality sensor (temperature, humidity, CO₂, TVOC, pressure, light, PIR) with a 4.2" E-Ink display. USB-C and NFC configuration. More
Manufacturer: Milesight
Product code: 99.25.2107.9576
Free shipping within the Czech Republic on purchases over 120 EUR.
309 EUR
excl. VAT (373,89 EUR incl. VAT)
Price includes a WEEE recycling fee for the Czech Republic.
LoRaWAN® 7-in-1 indoor air quality sensor (temperature, humidity, CO₂, TVOC, pressure, light, PIR) with a 4.2" E-Ink display. USB-C and NFC configuration. More
Price includes a WEEE recycling fee for the Czech Republic.
Manufacturer: Milesight
Product code: 99.25.2107.9576

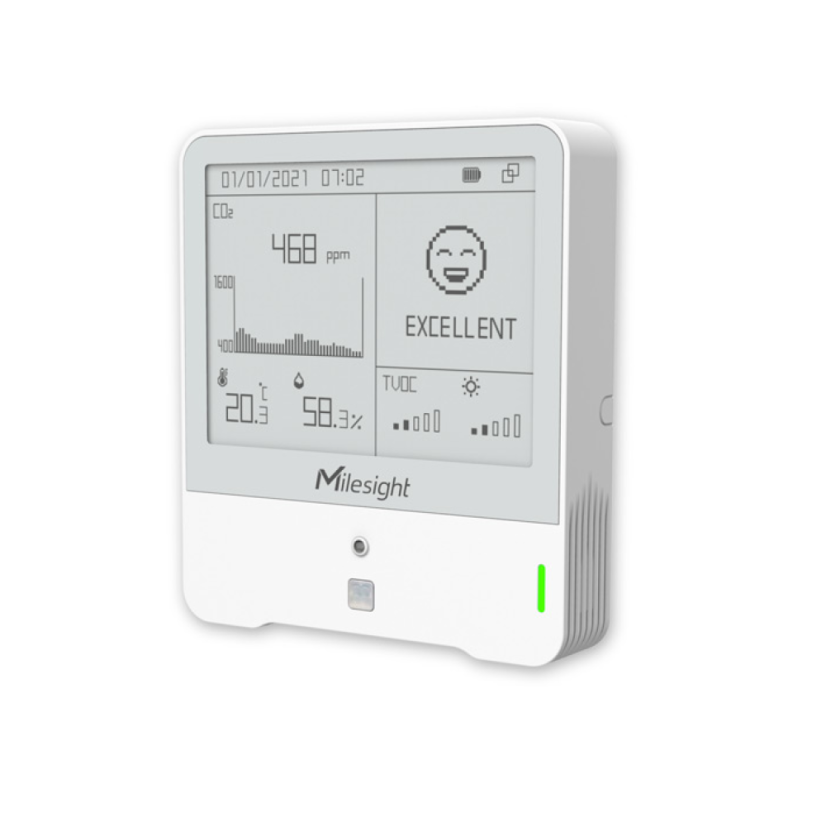

The Milesight AM307-868M is a 7-in-1 indoor air-quality sensor measuring temperature, humidity, CO₂ (NDIR), TVOC, barometric pressure, light and PIR motion. Readings are shown locally on a 4.2" black-and-white E-Ink display with multiple layouts.
It operates as a LoRaWAN® Class A end node and is powered by four replaceable 2700 mAh Li-SOCl₂ batteries or 5 V USB-C. It supports local storage with retransmission and threshold alarms, and is configured via NFC. Ideal for offices, schools, hospitals and retail.
Before you install
- Setup: via the Milesight ToolBox app (NFC) or over USB-C.
- Power: 4× lithium batteries (ER14505) or USB-C.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. It also shows readings on its display.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm |
| Measured Parameters | Temperature, Humidity, CO₂, TVOC, Barometric pressure, Light, PIR (7-in-1) |
| Temperature | –20 °C to +60 °C, accuracy ±0.2 °C (0–60 °C), resolution 0.1 °C |
| Humidity | 0–100 % RH, accuracy ±2 % (@25 °C), resolution 0.5 % RH |
| CO₂ | NDIR, 400–5000 ppm, accuracy ±(30 ppm + 3 % of reading), resolution 1 ppm |
| Display | 4.2" black & white E-Ink |
| Configuration | NFC via Mobile App, USB-C, Downlink |
| Battery | 4 × 2700 mAh Li-SOCl₂ (ER14505) or USB-C |
| Enclosure | ABS (UL94 HB), IP30 (indoor) |
| Dimensions | 100.8 × 114 × 22 mm |
| Weight | 182.5 g |
| Mounting | Wall (3M tape or screws) |
| Certifications | CE, RED, FCC, ISED, RoHS |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
