EURMilesight AM308 - Indoor Air Quality Sensor (9 in 1)
Milesight AM308 - Indoor Air Quality Sensor (9 in 1)
LoRaWAN® 9-in-1 indoor air quality sensor adding PM2.5 & PM10 (temperature, humidity, CO₂, TVOC, pressure, PM2.5, PM10, light, PIR) with a 4.2" E-Ink display. More
Manufacturer: Milesight
Product code: 99.25.2108.0664
Free shipping within the Czech Republic on purchases over 120 EUR.
389 EUR
excl. VAT (470,69 EUR incl. VAT)
LoRaWAN® 9-in-1 indoor air quality sensor adding PM2.5 & PM10 (temperature, humidity, CO₂, TVOC, pressure, PM2.5, PM10, light, PIR) with a 4.2" E-Ink display. More
Manufacturer: Milesight
Product code: 99.25.2108.0664

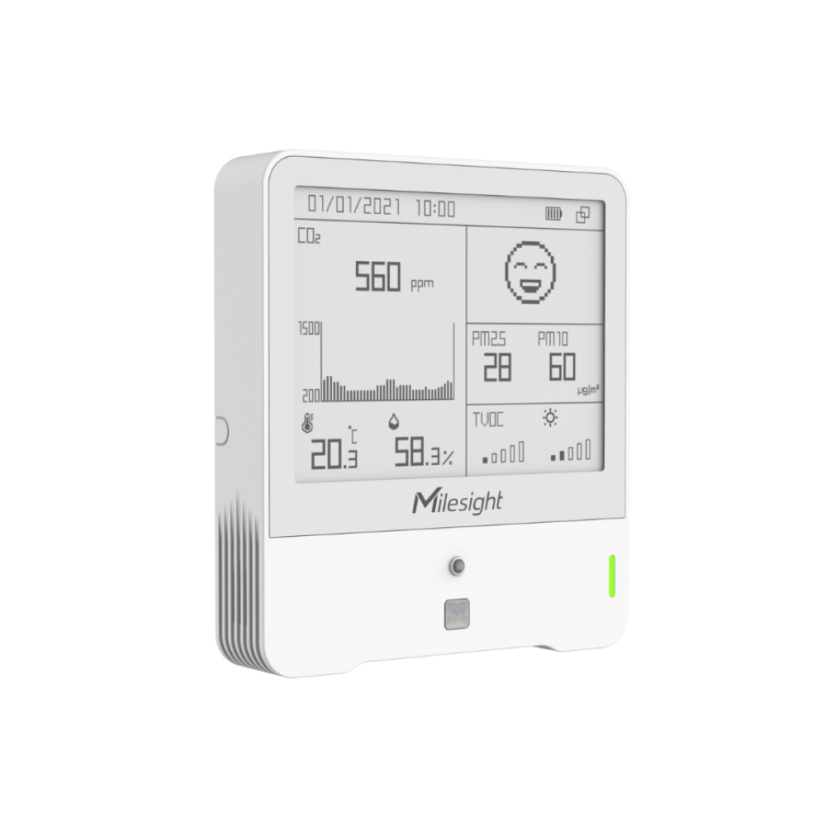

The Milesight AM308-868M is a 9-in-1 indoor air-quality sensor measuring temperature, humidity, CO₂ (NDIR), TVOC, barometric pressure, PM2.5, PM10, light and PIR motion. Readings are shown on a 4.2" black-and-white E-Ink display with comfort indicators and a traffic-light LED.
It transmits over LoRaWAN® Class A and is powered by four replaceable 2700 mAh Li-SOCl₂ batteries or 5 V USB-C. It supports local storage (18,000 entries) with retransmission, threshold alarms and calibration, and is configured via NFC. Ideal for offices, schools, hospitals and retail.
Before you install
- Setup: via the Milesight ToolBox app (NFC) or over USB-C.
- Power: 4× lithium batteries (ER14505) or USB-C (USB-C recommended for continuous PM monitoring).
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. It also shows readings on its display.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm |
| Measured Parameters | Temperature, Humidity, CO₂, TVOC, Pressure, PM2.5, PM10, Light, PIR (9-in-1) |
| Temperature | –20 °C to +60 °C, accuracy ±0.2 °C (0–60 °C), resolution 0.1 °C |
| Humidity | 0–100 % RH, accuracy ±2 % (@25 °C), resolution 0.5 % RH |
| CO₂ | NDIR, 400–5000 ppm, accuracy ±(30 ppm + 3 % of reading), resolution 1 ppm |
| Particulate Matter | PM2.5 / PM10 (laser), 0–1000 µg/m³, accuracy ±10 µg/m³, resolution 1 µg/m³ |
| Display | 4.2" black & white E-Ink |
| Configuration | NFC via Mobile App, USB-C, Downlink |
| Battery | 4 × 2700 mAh Li-SOCl₂ (ER14505) or USB-C |
| Enclosure | ABS (UL94 HB), IP30 (indoor) |
| Dimensions | 100.8 × 114 × 22 mm |
| Weight | 222.6 g |
| Mounting | Wall (3M tape or screws) |
| Certifications | CE, RED, FCC, ISED, RoHS |
