Milesight CT303 Smart Current Sensor (300 A, 3-phase)

Milesight CT303 Smart Current Sensor (300 A, 3-phase)


LoRaWAN® 3-phase smart current transformer, 300 A per phase, ±1 % accuracy. Non-invasive clamp-on, self-powered (no battery), USB-C configuration, IP30. More
Manufacturer: Milesight Product code: 99.26.3632.3996

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

139 EUR incl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

Usually ships in 7 days
LoRaWAN® 3-phase smart current transformer, 300 A per phase, ±1 % accuracy. Non-invasive clamp-on, self-powered (no battery), USB-C configuration, IP30. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: Milesight Product code: 99.26.3632.3996

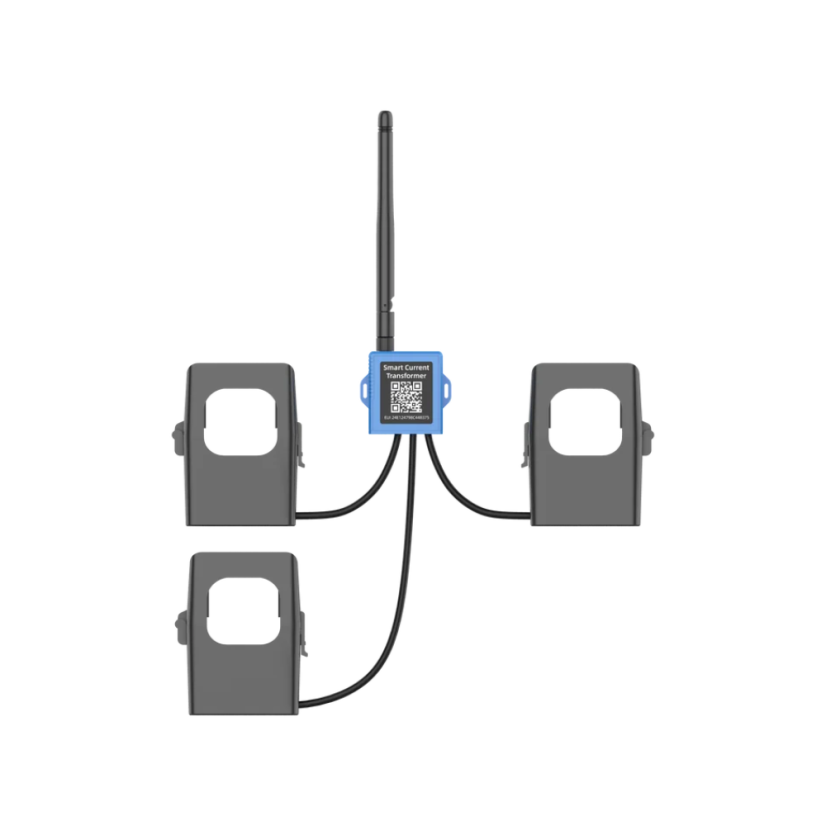

The Milesight CT303-868M is a three-phase LoRaWAN® smart current transformer for monitoring energy use in electrical installations. It measures RMS current on three channels simultaneously with a 300 A rated primary current, 1 mA resolution and ±1 % accuracy, sampling up to 3.3 kHz across 50–60 Hz, and accumulates ampere-hour data for remote consumption tracking.

It uses non-invasive split-core clamps (Ø24.2 mm conductor opening) that install around live conductors without de-energizing, and is self-powered by the induced current, no battery required. A USB-C port is provided for configuration via Milesight ToolBox. UL94 V-0 PBT+PC enclosure, IP30.

Before you install

  • Setup: over USB-C or a LoRaWAN downlink, no app.
  • Power: self-powered from the measured conductor (phase A), no battery; or via USB-C.
  • Data: over LoRaWAN, needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.

Parameters

Wireless Protocol LoRaWAN®, Class A (OTAA/ABP)
Frequency EU868, max. 16 dBm
Current Measurement 3-phase RMS, 300 A per phase, resolution 1 mA, accuracy ±1 %, sampling up to 3.3 kHz
Configuration USB-C (Milesight ToolBox)
Power Self-powered from measured conductor (no battery)
Enclosure PBT+PC (UL94 V-0), IP30; split-core clamp Ø24.2 mm opening
Dimensions Transceiver 38 × 34.5 × 16 mm; clamp 56.5 × 36.5 × 68.5 mm
Mounting Non-invasive clamp-on around live conductors
Certifications CE, FCC, RoHS

Documentation

Safety information

  • Read the manufacturer's user guide supplied with the product before installation and keep it.
  • Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
  • Installation and connection may be carried out only by a person qualified in electrical installation, with the circuit de-energised. Risk of electric shock.
  • Do not exceed the rated voltage and current stated by the manufacturer.
Manufacturing company XIAMEN MILESIGHT IOT CO.,LTD.
Address 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China
Email [email protected]
Responsible person in the EU HARDWARIO a.s.
Address of the responsible person in the EU U Jezu 525/4, 460 01 Liberec, Czech Republic
E-mail of the responsible person in the EU [email protected]
