Milesight DS3604 - LoRaWAN E-Ink Display

LoRaWAN® 4.2" three-colour (black/white/red) e-ink display for smart signage. Shows text, images and QR codes with ultra-low power; bulk remote management. More

Manufacturer: Milesight Product code: 99.26.3476.2286

Free shipping within the Czech Republic on purchases over 120 EUR.

139 EUR excl. VAT (168,19 EUR incl. VAT)

Price includes a WEEE recycling fee for the Czech Republic.

LoRaWAN® 4.2" three-colour (black/white/red) e-ink display for smart signage. Shows text, images and QR codes with ultra-low power; bulk remote management. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: Milesight Product code: 99.26.3476.2286

Description Description
Additional information Additional information

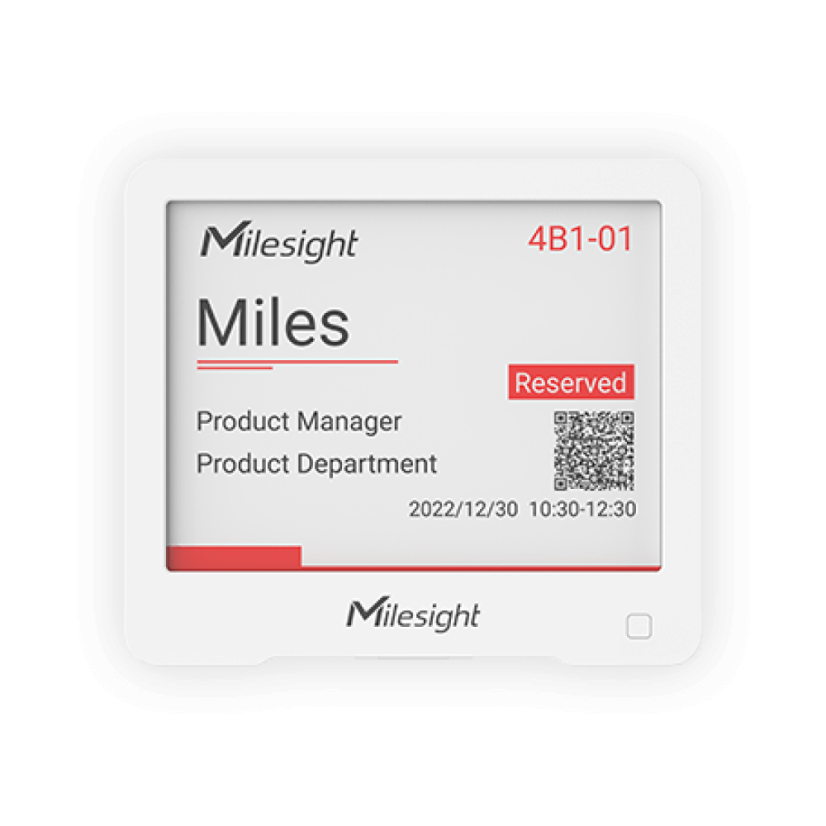

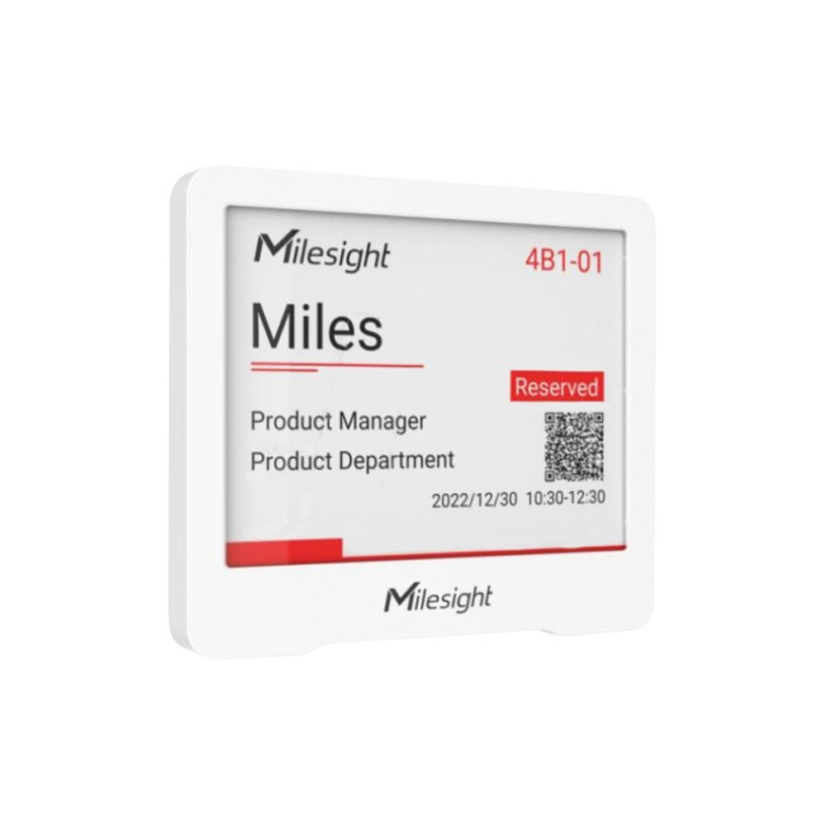

The Milesight DS3604-868M is a LoRaWAN® e-ink display for smart signage, showing text, images and QR codes on a 4.2" three-colour (black/white/red) electronic-paper screen (400 × 300 px) with ultra-low power. The image is retained even without power.

Ideal for desk and meeting-room booking, workplace, hotel, hospital and retail labelling, with bulk remote content management over LoRaWAN®. Powered by 3 × CR2450 batteries for up to 5 years.

Before you install

Setup: via the Milesight ToolBox app (NFC).
Power: 3× CR2450 batteries, ~5-year life.
Display: content is pushed by a LoRaWAN gateway/platform (sold separately) — the display doesn't generate data itself.

Parameters

Wireless Protocol	LoRaWAN®, Class A/B (OTAA/ABP)
Frequency	EU868, max. 16 dBm
Display	4.2" e-ink, black/white/red, 400 × 300 px, refresh ~16 s
Configuration	Text, image & QR templates, up to 150 languages, bulk remote management
Battery	3 × 590 mAh CR2450, up to 5 years
Enclosure	ABS+PC, IP30
Operating Temperature	0 °C to +40 °C
Dimensions	99 × 87 × 10.5 mm
Mounting	3M tape or wall screw
Certifications	CE, FCC, RoHS

Documentation

Safety information

Read the manufacturer's user guide supplied with the product before installation and keep it.
Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
Keep batteries out of the reach of children.
A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
