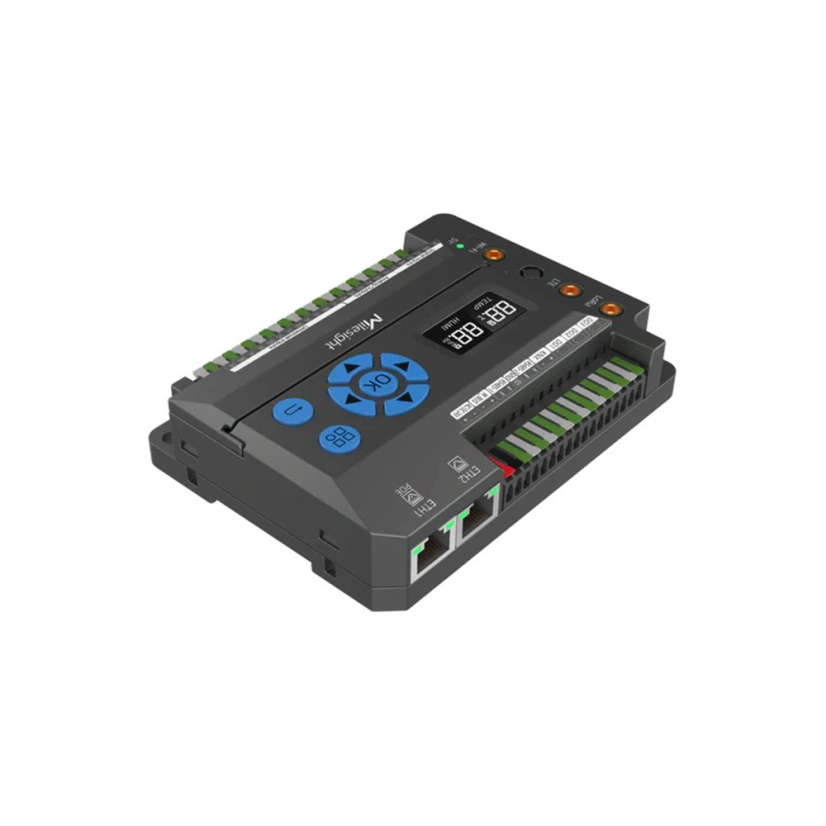

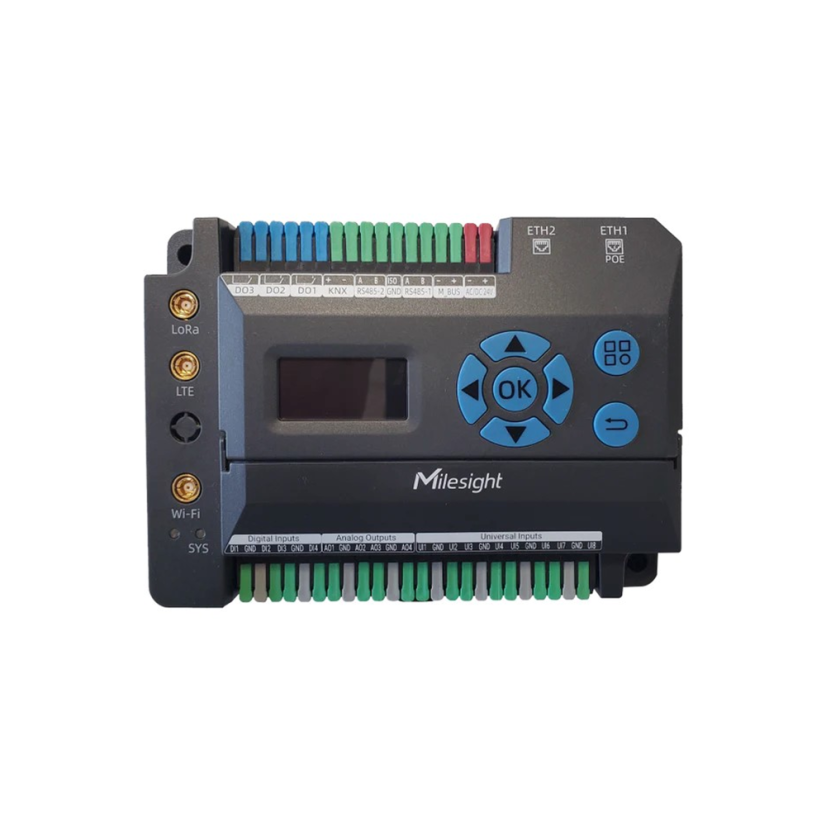

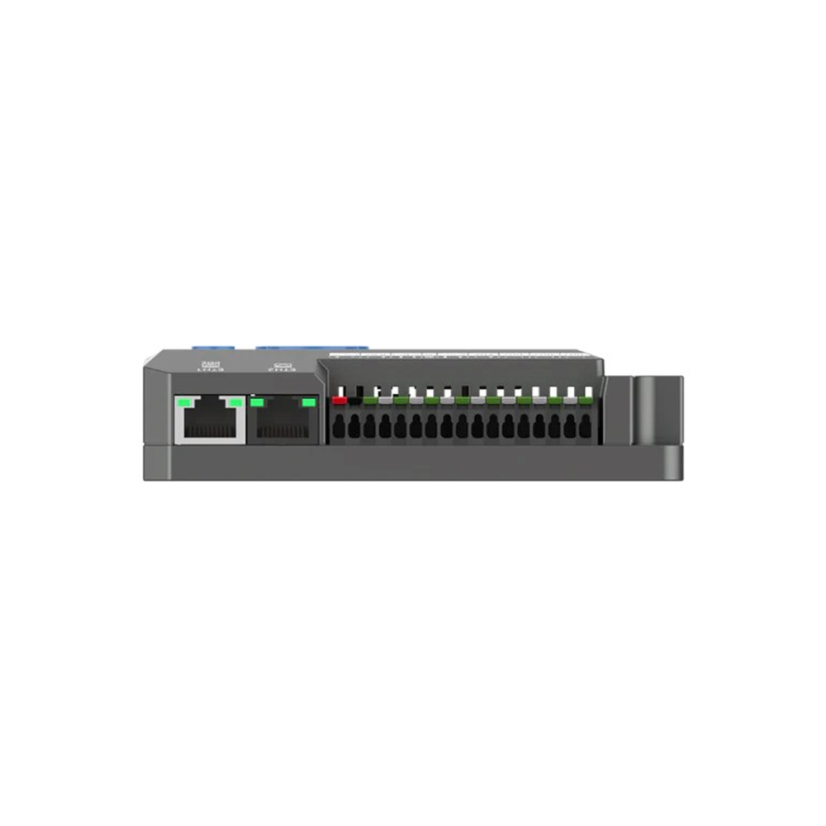

Milesight EG71-L08GL - Building IoT Gateway
Quad-core building IoT gateway unifying LoRaWAN®, RS485/Modbus, BACnet, KNX, M-Bus, Ethernet, Wi-Fi and 4G in one DIN-rail device, with BMS integration and edge automation. More
Manufacturer: Milesight
Product code: 99.26.3520.4300
Free shipping within the Czech Republic on purchases over 120 EUR.
1 290 EUR
excl. VAT (1 560,90 EUR incl. VAT)
Price includes a WEEE recycling fee for the Czech Republic.
Quad-core building IoT gateway unifying LoRaWAN®, RS485/Modbus, BACnet, KNX, M-Bus, Ethernet, Wi-Fi and 4G in one DIN-rail device, with BMS integration and edge automation. More
Price includes a WEEE recycling fee for the Czech Republic.
Manufacturer: Milesight
Product code: 99.26.3520.4300
The Milesight EG71-L08GL is an intelligent quad-core building IoT gateway that unifies wired and wireless connectivity — LoRaWAN®, RS485/Modbus, BACnet, KNX, M-Bus, Ethernet, Wi-Fi and 4G — in one compact DIN-rail device.
It bridges field sensors and actuators to the cloud or a BMS via BACnet/IP, Modbus, MQTT and HTTP, with universal inputs, relay and analog outputs, and local automation through a Python SDK, Node-RED and Docker. Ideal for building automation, energy management and HVAC control.
Before deployment
- Power: PoE 802.3af, 24 V or USB-C 5 V/3 A — DIN-rail adapter not included.
- Connectivity: 2× gigabit Ethernet, Wi-Fi, 4G LTE and building buses (BACnet, Modbus, KNX, M-Bus).
- Management: a built-in LoRaWAN network server, runs standalone; set up via the web interface (https), remote management via the Milesight platform.
Parameters
| Wireless Protocol | LoRaWAN®, 8 channels, Class A/B/C |
| Frequency | EU868, max. 27 dBm |
| LoRa Capacity | ~2000 nodes, sensitivity –140 dBm |
| Interfaces | 2 × RS485, KNX, M-Bus, 8 × universal input, 4 × digital input, 3 × relay output, 4 × analog output, NFC, 1.3" OLED |
| Network Backhaul | 2 × Gigabit Ethernet (PoE PD), Wi-Fi 2.4 GHz, 4G LTE Cat1 |
| Network Server | Embedded LoRaWAN NS; BACnet/IP, Modbus TCP/RTU, MQTT/HTTP; Python SDK, Node-RED, Docker |
| Power | 24 V DC/AC, 802.3af PoE, or 5 V USB-C; typ. 8.2 W |
| Enclosure | PC + aluminium, IP30 |
| Operating Temperature | –40 °C to +60 °C |
| Dimensions | 123 × 90 × 36 mm |
| Mounting | Wall or DIN rail |
| Certifications | CE, FCC |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Power the device only from the power supply or PoE source stated by the manufacturer and keep it ventilated.
- Outdoor mounting (on masts or walls) may be done only by qualified personnel, with grounding and lightning protection according to local regulations.
- Keep a distance of at least 20 cm between the antennas and people while the device operates.
- Change the default passwords at the first setup.
