Milesight EM320-TH - Temperature & Humidity Sensor
Free shipping within the Czech Republic on purchases over 120 EUR.
Price includes a WEEE recycling fee for the Czech Republic.
Price includes a WEEE recycling fee for the Czech Republic.

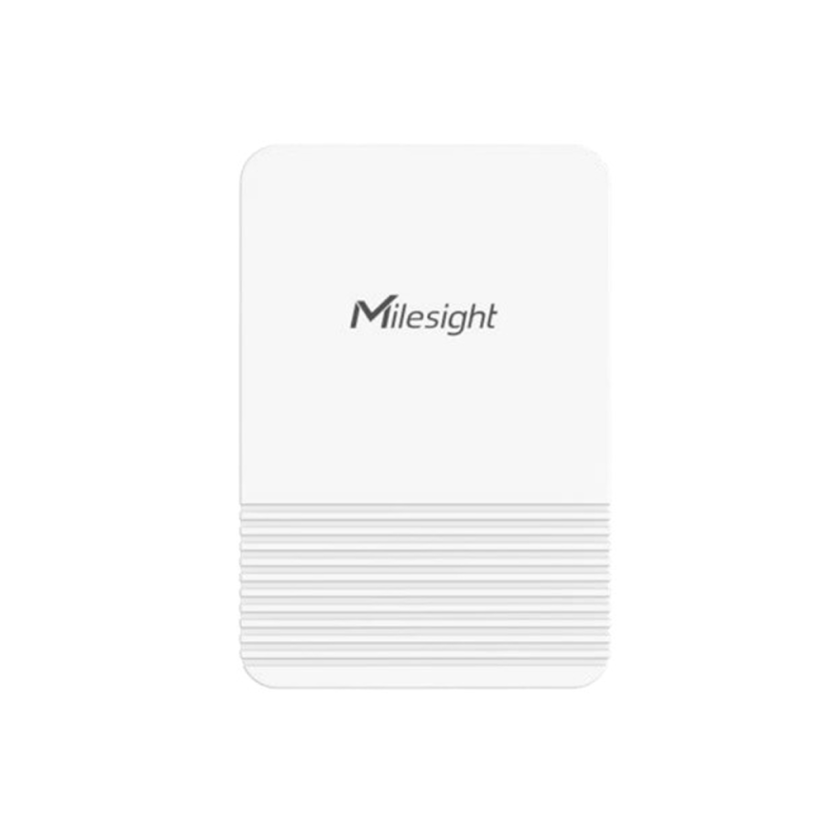

The Milesight EM320-TH-868M is a compact LoRaWAN® temperature and humidity sensor built around a high-precision Sensirion element, in an IP67, FDA-approved food-grade PC+ABS enclosure. It measures –30 °C to +60 °C and 0–100 % RH and is EN12830 certified, making it suitable for cold-chain, refrigerators, greenhouses, hospitals and industrial environments.
Powered by two replaceable 2700 mAh Li-SOCl₂ batteries (5400 mAh total), it runs for 10 years or more, stores up to 3000 records with retransmission, and is configured via NFC. It integrates with any LoRaWAN® network server or Milesight IoT Cloud.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: 2× lithium batteries (ER14505), ~10-year life.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm, up to 15 km line of sight |
| Temperature | –30 °C to +60 °C, accuracy ±0.2 °C (0–60 °C), resolution 0.1 °C |
| Humidity | 0–100 % RH, accuracy ±2 % (@25 °C), resolution 0.5 % RH |
| Configuration | NFC via Mobile App, Downlink |
| Battery | 2 × 2700 mAh Li-SOCl₂ (ER14505), up to 10+ years |
| Enclosure | Food-grade PC+ABS (FDA), IP67 |
| Dimensions | 85 × 58 × 18 mm |
| Weight | 93.2 g |
| Mounting | Wall or pole (magnetic version optional) |
| Certifications | CE, FCC, Telec, EN12830, RoHS |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
| Manufacturing company | XIAMEN MILESIGHT IOT CO.,LTD. |
|---|---|
| Address | 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China |
| [email protected] | |
| Manufacturer's representative in the EU | HARDWARIO a.s. |
| Address of representative in the EU | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| EU representative email | [email protected] |
