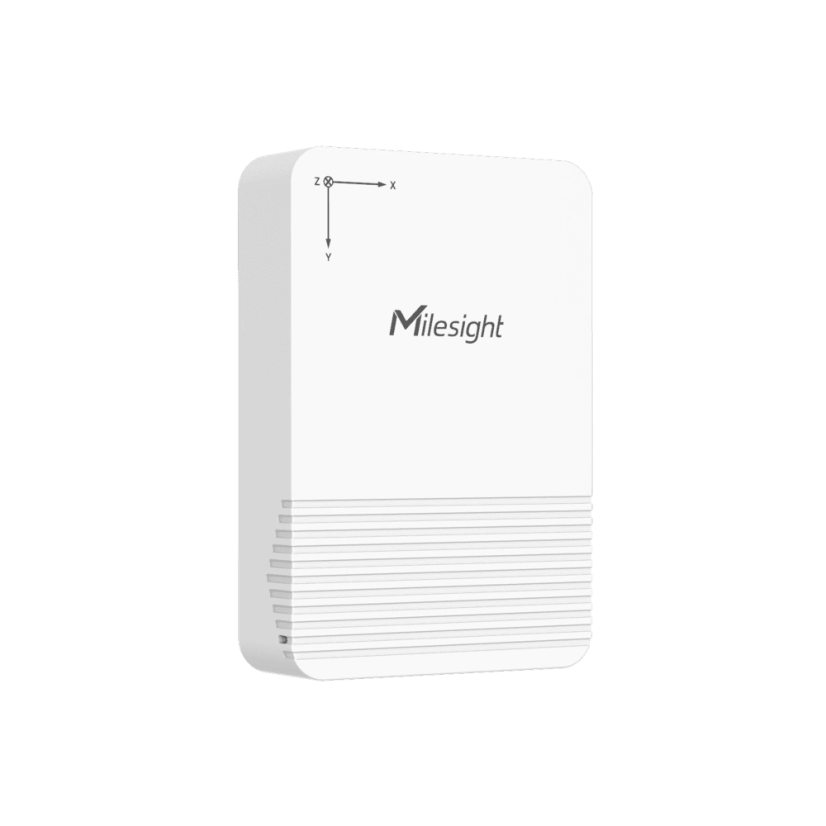

Milesight EM320-TILT - Tilt Sensor
LoRaWAN® 3-axis tilt sensor for angle measurement and asset-movement detection, ±1° accuracy. IP67, anti-theft enclosure and NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3622.0861
Free shipping within the Czech Republic on purchases over 120 EUR.
86,90 EUR
excl. VAT (105,15 EUR incl. VAT)
Price includes a WEEE recycling fee for the Czech Republic.
LoRaWAN® 3-axis tilt sensor for angle measurement and asset-movement detection, ±1° accuracy. IP67, anti-theft enclosure and NFC configuration. More
Price includes a WEEE recycling fee for the Czech Republic.
Manufacturer: Milesight
Product code: 99.26.3622.0861
The Milesight EM320-TILT-868M is a LoRaWAN® tilt sensor with a 3-axis MEMS accelerometer that measures X, Y and Z tilt angles over –90° to +90° with 0.01° resolution and ±1° accuracy. A configurable reference position and threshold alarms let it report angle changes and movement over LoRaWAN®.
It is powered by two replaceable 2700 mAh Li-SOCl₂ batteries and housed in an IP67 PC+ABS enclosure with an anti-theft back cover. NFC one-touch configuration and wall/pole mounting suit outdoor use such as pole-lean, tree and landslide monitoring.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: 2× lithium batteries (ER14505), ~4-year life.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm, up to 15 km line of sight |
| Tilt Measurement | 3-axis (X/Y/Z), range –90° to +90°, resolution 0.01°, accuracy ±1° |
| Configuration | NFC via Mobile App, Downlink |
| Battery | 2 × 2700 mAh Li-SOCl₂ (ER14505) |
| Enclosure | PC+ABS, IP67 (anti-theft back cover) |
| Dimensions | 85 × 58 × 18 mm |
| Mounting | Wall screw or pole |
| Certifications | CE, FCC, Telec, RoHS |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
