Milesight EM500-PP - Pipe Pressure Sensor

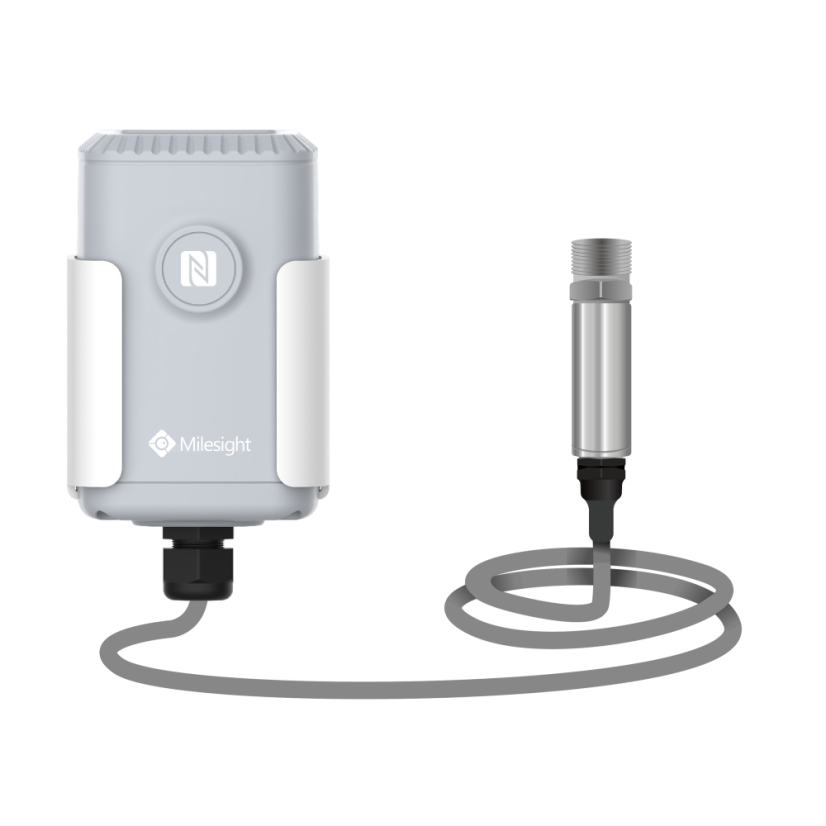

Milesight EM500-PP - Pipe Pressure Sensor – front view with pressure probe
Add to favourites Add to compare list

Milesight EM500-PP - Pipe Pressure Sensor

LoRaWAN® pipe pressure sensor, 0–1600 kPa (16 bar) at ±0.5 % FS, with a stainless-steel 316L probe. IP67 transceiver, up to 10-year battery life and NFC configuration. More
Manufacturer: Milesight Product code: 99.26.3626.3708

Free shipping within the Czech Republic on purchases over 120 EUR.

279 EUR excl. VAT (337,59 EUR incl. VAT)

Price includes a WEEE recycling fee for the Czech Republic.

In stock at supplier
LoRaWAN® pipe pressure sensor, 0–1600 kPa (16 bar) at ±0.5 % FS, with a stainless-steel 316L probe. IP67 transceiver, up to 10-year battery life and NFC configuration. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: Milesight Product code: 99.26.3626.3708

The Milesight EM500-PP-868M measures liquid and gas pressure in pipes and tanks under harsh conditions. A vented-gauge element gives a 0–1600 kPa (16 bar) range with ±0.5 % FS accuracy and a G½" male process connection; the stainless-steel 316L (IP65) probe connects to the IP67 transceiver by a 1.5 m cable.

A replaceable 19000 mAh Li-SOCl₂ battery lasts up to 10 years. It supports Milesight D2D, local storage with retransmission and threshold alarms, and is configured via NFC or USB-C — ideal for pipeline and tank pressure, oil & gas, and pump monitoring.

Before you install

  • Setup: via the Milesight ToolBox app (NFC) or over USB-C.
  • Power: a built-in lithium battery (ER34615), up to ~10-year life.
  • Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. Also supports Milesight D2D for direct control without a gateway.

Parameters

Wireless Protocol LoRaWAN®, Class A (OTAA/ABP), Milesight D2D support
Frequency EU868, max. 16 dBm, up to 10 km line of sight
Pressure Measurement Vented gauge, 0–1600 kPa (16 bar), resolution 1 kPa, accuracy ±0.5 % FS, G½" male
Configuration NFC via Mobile App, USB-C, Downlink
Battery 19000 mAh Li-SOCl₂ (ER34615), up to 10 years
Enclosure Transceiver ABS+PC IP67; probe 316L stainless steel IP65
Dimensions Transceiver 105.4 × 71 × 69.5 mm; probe 60.5 × Ø27 mm
Mounting Pole, wall or DIN rail
Certifications CE, FCC, ISED, Telec, RoHS

Documentation

Safety information

  • Read the manufacturer's user guide supplied with the product before installation and keep it.
  • Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
  • Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
  • Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
  • Keep batteries out of the reach of children.
  • A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
  • Install pressure and level sensors only on depressurised and drained pipes or tanks, and observe the measuring range and maximum pressure stated by the manufacturer.
Manufacturing company XIAMEN MILESIGHT IOT CO.,LTD.
Address 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China
Email [email protected]
Manufacturer's representative in the EU HARDWARIO a.s.
Address of representative in the EU U Jezu 525/4, 460 01 Liberec, Czech Republic
EU representative email [email protected]
