EURMilesight EM500-PT100 Industrial Temperature Sensor
Milesight EM500-PT100 Industrial Temperature Sensor
Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.
EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).
Price includes a WEEE recycling fee for the Czech Republic.
Price includes a WEEE recycling fee for the Czech Republic.

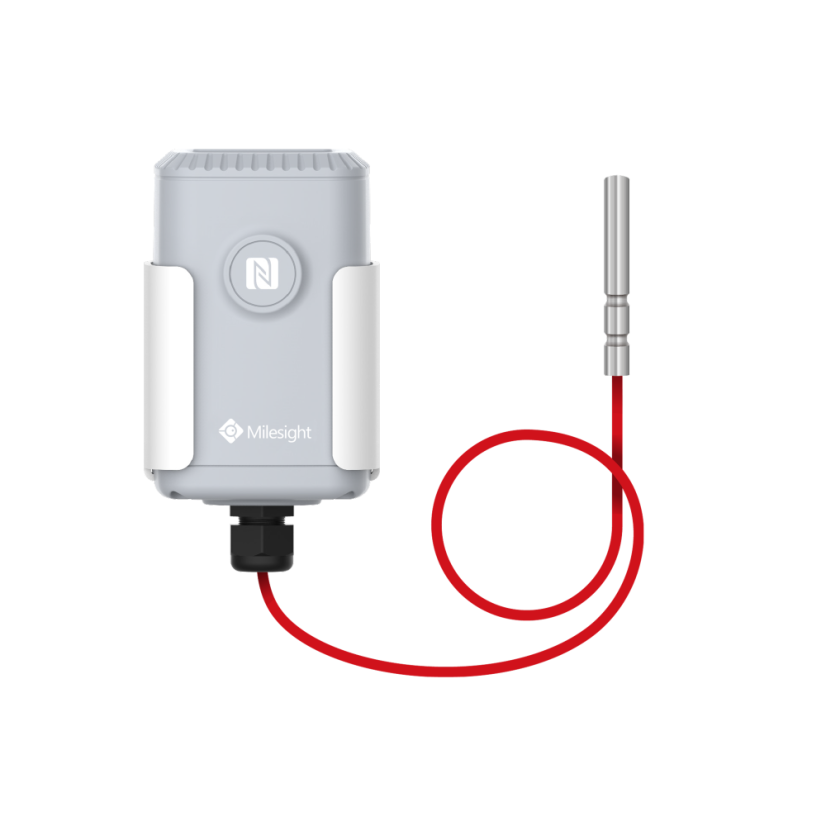

The Milesight EM500-PT100-868M is an industrial LoRaWAN® temperature sensor built around a 3-wire PT100 platinum RTD probe for wide-range measurement in harsh environments. Four probe variants (T050/T200/T500/T800) cover ranges from –200 °C up to +800 °C at 0.1 °C resolution, on Teflon or fiberglass cables (1.5 m, customizable).
The IP67 ABS+PC transceiver runs up to 10 years on a replaceable 19000 mAh Li-SOCl₂ battery and supports Milesight D2D, local storage with retransmission and threshold alarms. Configuration is via NFC or USB-C, ideal for machines, ovens, chimneys, boilers and pipes.
Before you install
- Setup: via the Milesight ToolBox app (NFC) or over USB-C.
- Power: a built-in lithium battery (ER34615), up to ~10-year life.
- Data: over LoRaWAN, needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. Also supports Milesight D2D for direct control without a gateway.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP), Milesight D2D support |
| Frequency | EU868, max. 16 dBm, up to 10 km line of sight |
| Probe / Sensor | 3-wire PT100 RTD, variants T050/T200/T500/T800, –200 °C to +800 °C, resolution 0.1 °C |
| Configuration | NFC via Mobile App, USB-C, Downlink |
| Battery | 19000 mAh Li-SOCl₂ (ER34615), up to 10 years |
| Enclosure | Transceiver ABS+PC IP67; probe stainless steel (IP67 on T200, IP30 on T050/T500/T800) |
| Dimensions | Transceiver 105.4 × 71 × 69.5 mm |
| Mounting | Pole, wall or DIN rail |
| Certifications | CE, FCC, ISED, Telec, RoHS |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
| Manufacturing company | XIAMEN MILESIGHT IOT CO.,LTD. |
|---|---|
| Address | 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China |
| [email protected] | |
| Responsible person in the EU | HARDWARIO a.s. |
| Address of the responsible person in the EU | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| E-mail of the responsible person in the EU | [email protected] |
