EURMilesight TS101 - Insertion Temperature Sensor
Milesight TS101 - Insertion Temperature Sensor
LoRaWAN® insertion temperature sensor with a 316 food-grade stainless-steel probe, –30 °C to +70 °C at ±0.5 °C. IP67/IK10, up to 10-year battery life and NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3628.8941
Free shipping within the Czech Republic on purchases over 120 EUR.
119 EUR
excl. VAT (143,99 EUR incl. VAT)
LoRaWAN® insertion temperature sensor with a 316 food-grade stainless-steel probe, –30 °C to +70 °C at ±0.5 °C. IP67/IK10, up to 10-year battery life and NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3628.8941

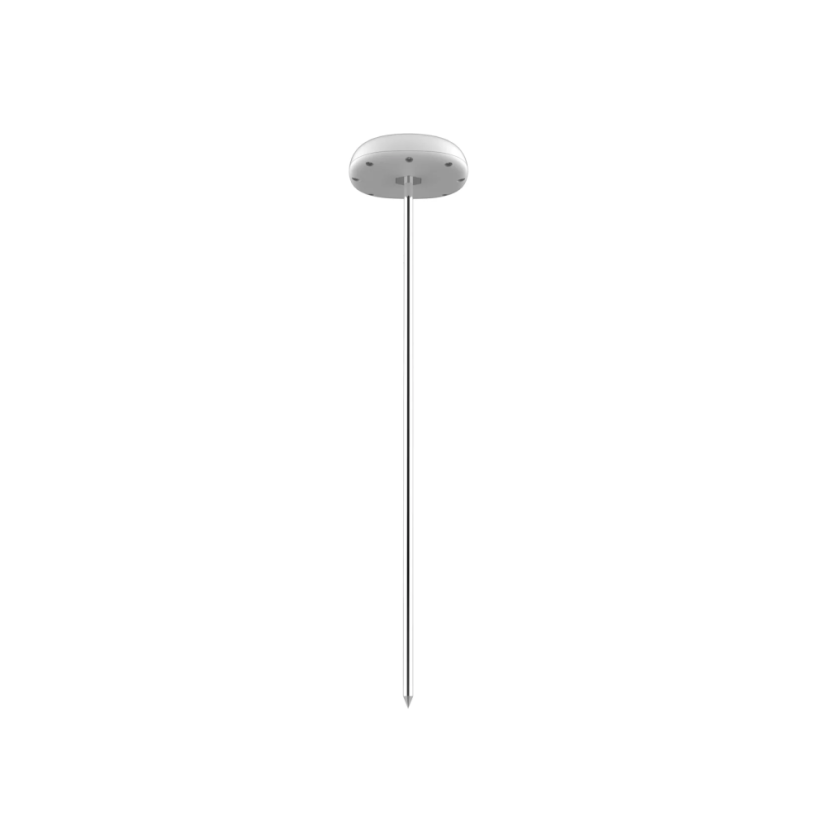

The Milesight TS101-868M is an all-in-one insertion temperature sensor with an integrated LoRaWAN® transmitter. It measures –30 °C to +70 °C at 0.1 °C resolution and ±0.5 °C typical accuracy using a DS18B20 element on a 316 food-grade stainless-steel probe (Ø7 × 400 mm), ideal for core/immersion measurement in hygienic and harsh environments.

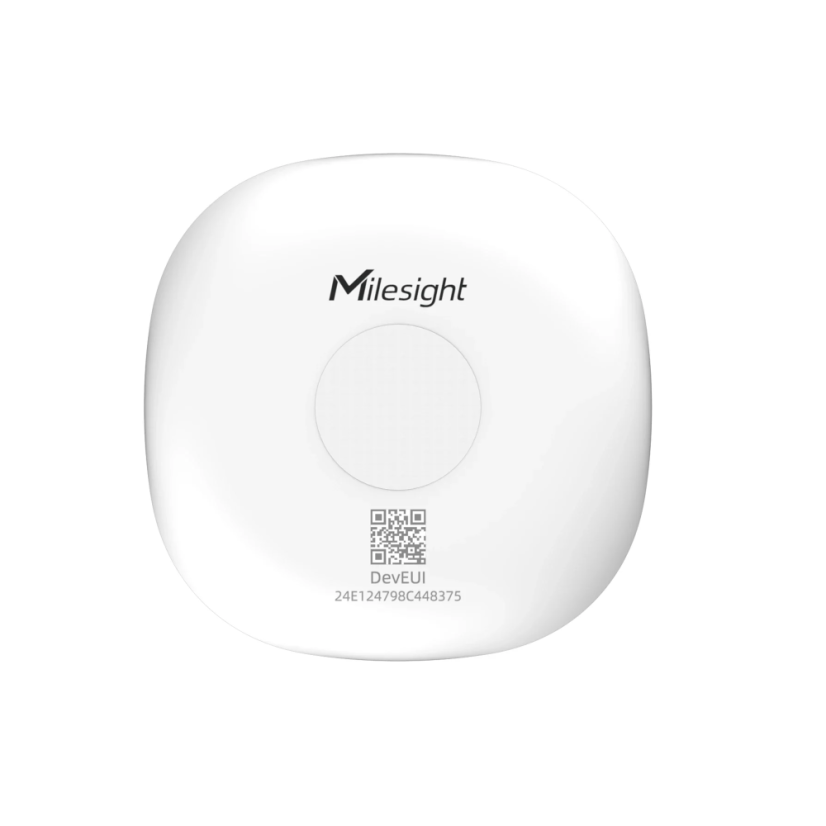

The white ABS+PC transceiver is rated IP67 and IK10. A replaceable 4000 mAh Li-SOCl₂ battery gives up to 10 years of operation, records are stored locally with retransmission, and configuration is via NFC.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: a built-in lithium battery (ER18505), up to ~10-year life.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm |
| Probe / Sensor | DS18B20 element, 316 food-grade stainless steel probe, Ø7 × 400 mm |
| Temperature | –30 °C to +70 °C, accuracy ±0.5 °C, resolution 0.1 °C |
| Configuration | NFC via Mobile App, Downlink |
| Battery | 4000 mAh Li-SOCl₂ (ER18505), up to 10 years |
| Enclosure | Transceiver ABS+PC (food-grade), IP67, IK10 |
| Dimensions | Transceiver Ø92 × 26 mm; probe Ø7 × 400 mm |
| Mounting | Insertion / immersion into the medium |
| Certifications | CE, FCC, RoHS |
