EURMilesight VS370 - Radar Human Presence Sensor

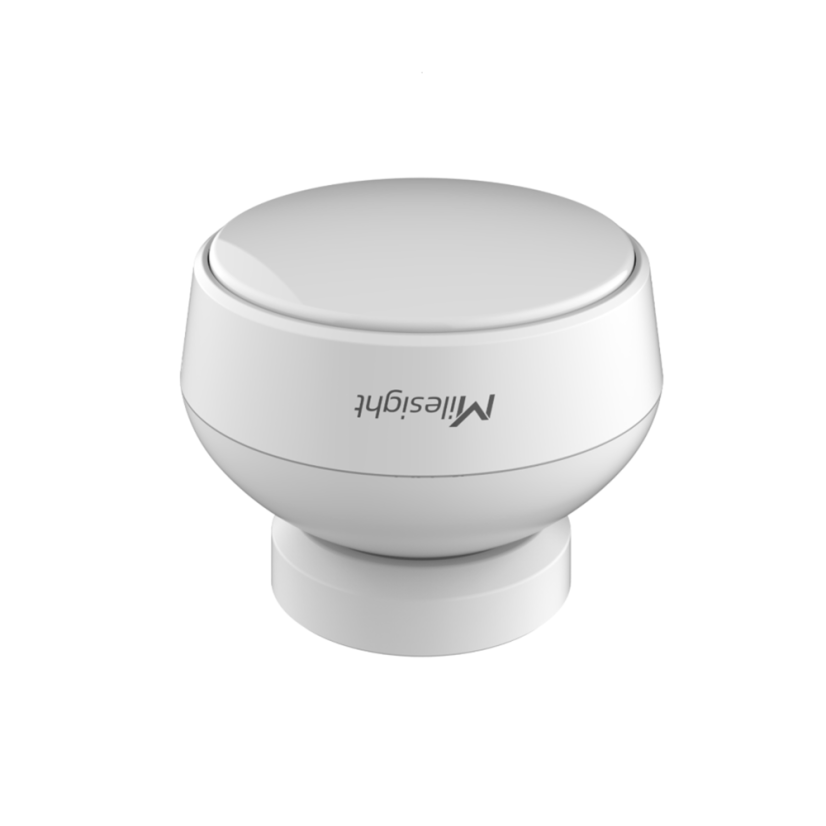

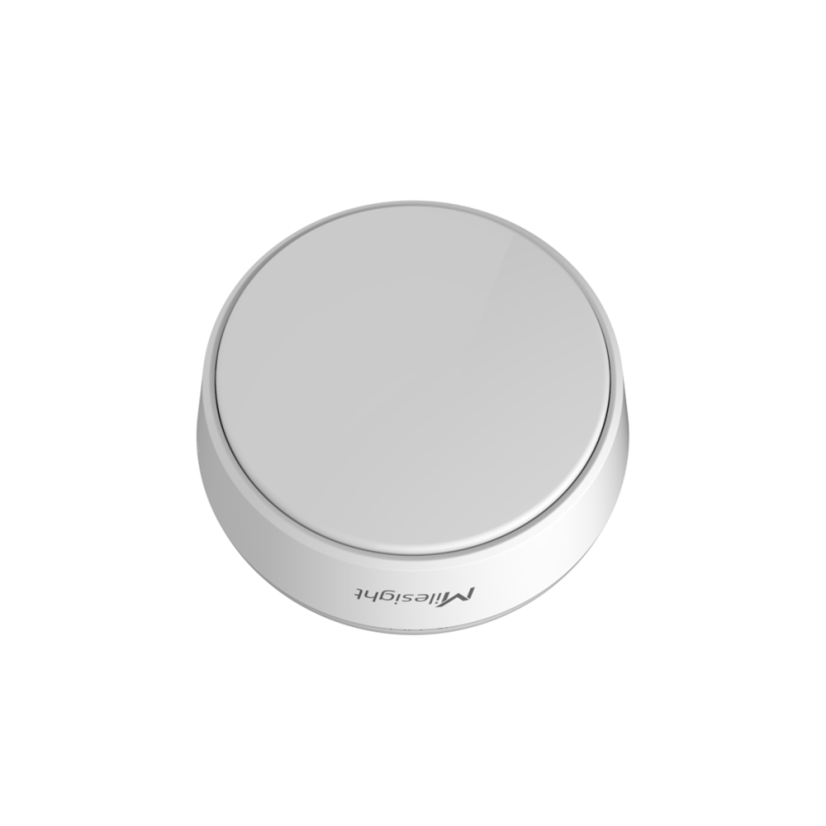

Milesight VS370 - Radar Human Presence Sensor
Free shipping within the Czech Republic on purchases over 120 EUR.
The Milesight VS370-868M combines 24 GHz millimeter-wave radar with a PIR sensor to detect both moving people and slight (micro) movements such as breathing. The radar covers a 150° angle with a 7.5 m movement / 4.8 m micro-movement range, while the PIR adds a 110° area up to 7 m, at up to 99 % recognition. A built-in light sensor reports Bright/Dim so it works in complete darkness.
It captures no images — detection relies solely on reflected radio signals — making it suitable for privacy-sensitive spaces. Two replaceable Li-SOCl₂ batteries give around 6 years of operation; it reports over LoRaWAN® Class A (EU868) and can act as a Milesight D2D controller to trigger lighting or HVAC directly.
Before you install
- Setup: via the Milesight ToolBox app (Bluetooth or NFC).
- Power: 2× lithium batteries (ER14505) included, ~6-year life.
- Data: via a LoRaWAN gateway for remote monitoring (sold separately), or via Milesight D2D to trigger another device directly without a gateway.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP), Milesight D2D support |
| Frequency | EU868, max. 16 dBm |
| Sensing Technology | 24 GHz mmWave radar + PIR + light; presence & micro-movement |
| Detection / Range | Radar 150°, 7.5 m (movement) / 4.8 m (micro); PIR 110°, up to 7 m |
| Accuracy | Up to 99 % |
| Privacy | No images captured — 100 % anonymous, GDPR compliant |
| Battery | 2 × 2700 mAh Li-SOCl₂ (ER14505), up to ~6 years |
| Configuration | NFC via Mobile App, Bluetooth, Downlink |
| Enclosure | ABS (UL94 V1), IP30 (0 to +30 °C) |
| Dimensions | Ø70 × 48.5 mm |
| Weight | Body 89.6 g + magnetic bracket 38.2 g |
| Mounting | Wall, detachable magnetic bracket (30° tilt) |
| Certifications | CE, FCC |
