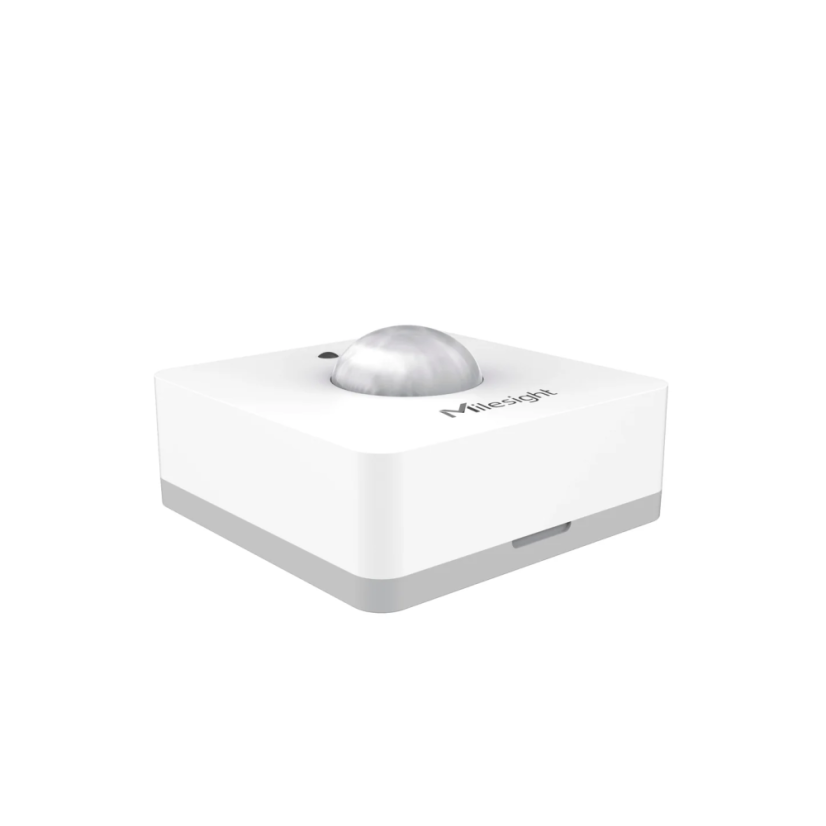

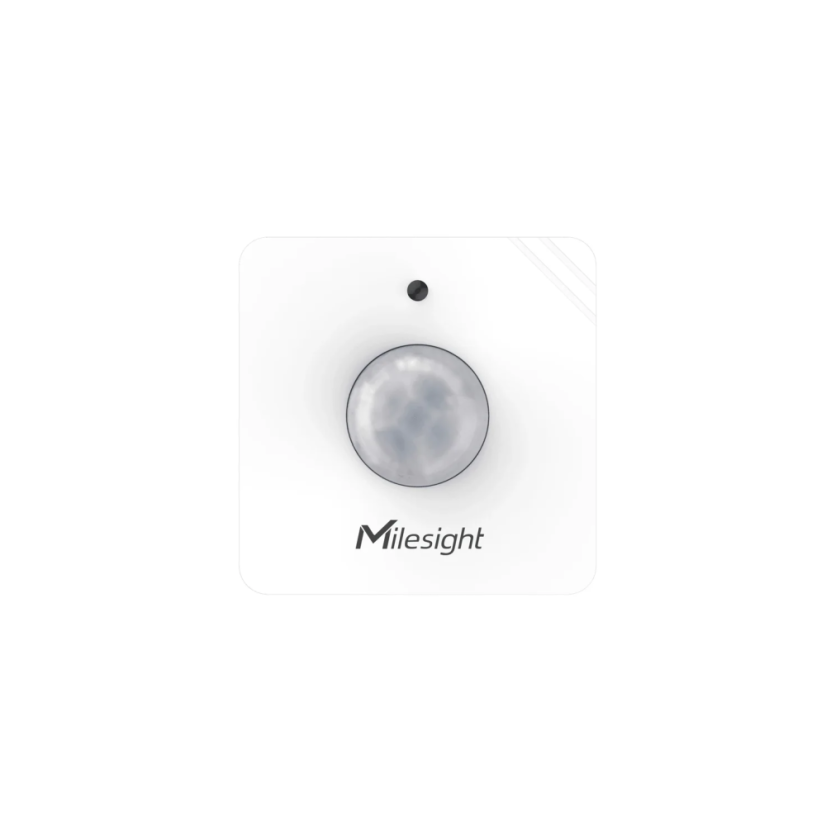

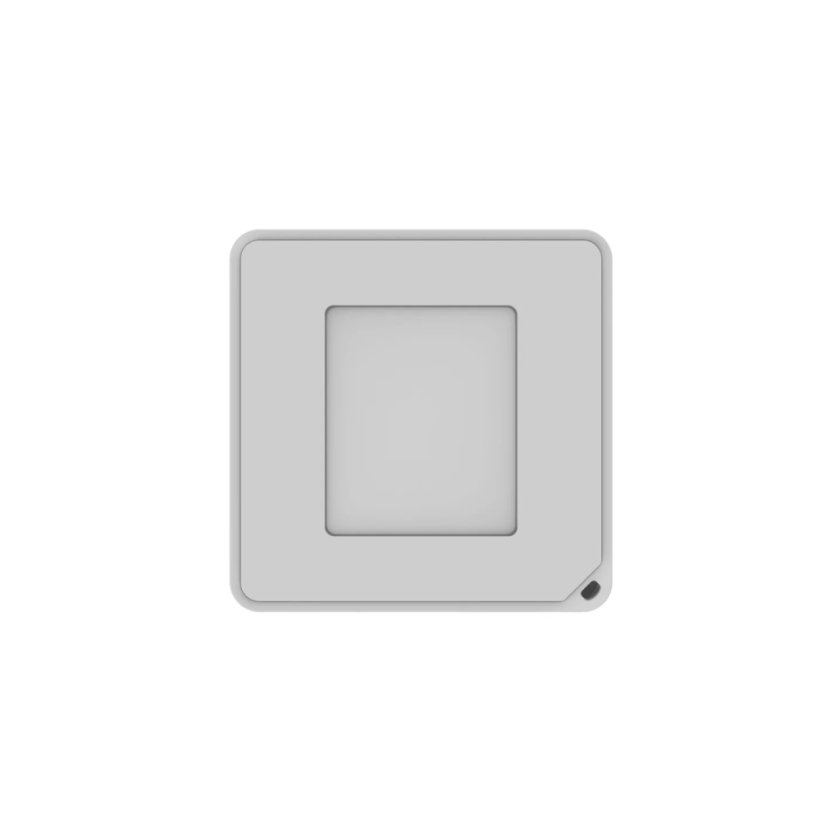

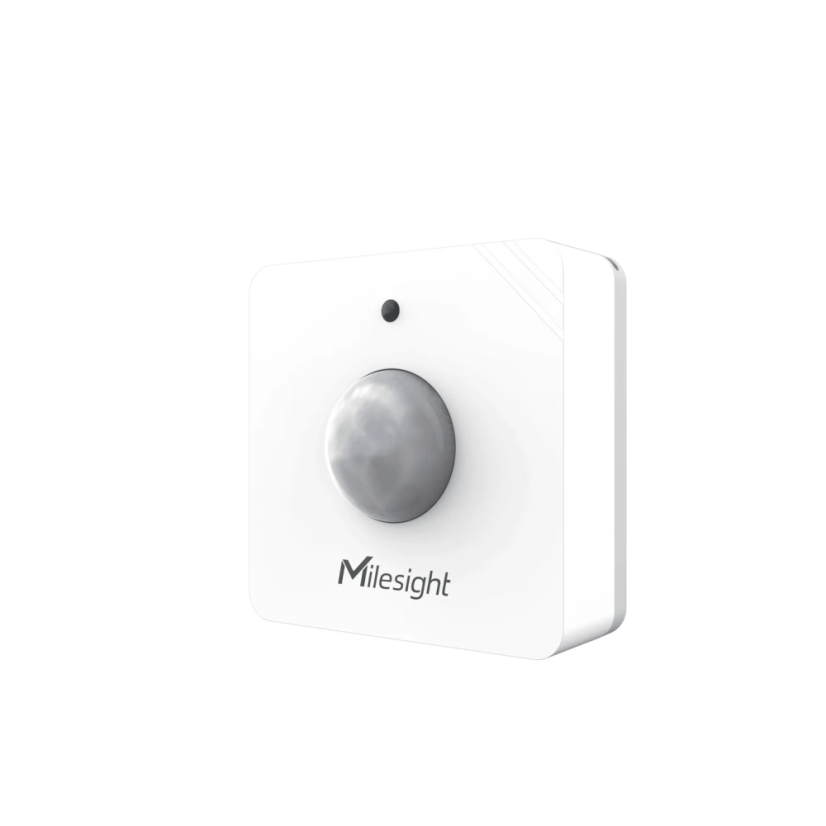

Milesight WS202 - PIR & Light Sensor
LoRaWAN® PIR motion and light sensor, detection up to 8 m across 120° × 100°, with a configurable Bright/Dark light status. Compact IP30, Milesight D2D, NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3634.3356
Free shipping within the Czech Republic on purchases over 120 EUR.
44,90 EUR
excl. VAT (54,33 EUR incl. VAT)
LoRaWAN® PIR motion and light sensor, detection up to 8 m across 120° × 100°, with a configurable Bright/Dark light status. Compact IP30, Milesight D2D, NFC configuration. More
Manufacturer: Milesight
Product code: 99.26.3634.3356
The Milesight WS202-868M detects motion and occupancy with a passive-infrared sensor up to 8 m across a 120° horizontal × 100° vertical field of view, and a built-in light sensor reports a Bright or Dark status against a user-defined threshold (1–60000 lux range). It supports Milesight D2D for direct, low-latency control of other devices without a gateway.
Powered by a 1650 mAh Li-SOCl₂ battery for several years, the compact 50 × 50 × 23.8 mm IP30 sensor mounts on flat surfaces with screws or 3M tape and is configured via NFC — for smart homes, offices, schools and warehouses.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: a lithium battery (ER14335), ~4-year life.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices. Also supports Milesight D2D for direct control without a gateway.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP), Milesight D2D support |
| Frequency | EU868, max. 16 dBm |
| Detection | PIR motion up to 8 m; FoV 120° H × 100° V |
| Light | Bright/Dark status, configurable threshold (1–60000 lux) |
| Configuration | NFC via Mobile App, Downlink |
| Battery | 1650 mAh Li-SOCl₂ (ER14335) |
| Enclosure | PC (flame retardant), IP30 |
| Dimensions | 50 × 50 × 23.8 mm |
| Weight | 40 g |
| Mounting | Flat surface (screws or 3M tape) |
| Certifications | CE, FCC, RoHS |
