Milesight WT401 - Wireless Smart Thermostat
Free shipping within the Czech Republic on purchases over 120 EUR.
The Milesight WT401-868M is a wireless room thermostat that acts as the control interface for HVAC systems. Rather than switching loads directly, it commands equipment through a BMS or a paired Milesight HVAC controller over LoRaWAN®, and can drive radiators via WT101/WT102. It supports Heat, Emergency Heat, Cool and Auto modes with up to 8 working plans, plus PIR occupancy detection for energy saving.
A 2.7" E-Ink screen shows room status, while onboard CMOSens temperature/humidity sensors and the PIR enable presence-based control. It runs wire-free on two replaceable Li-SOCl₂ batteries (up to ~5 years) or on wired power (24 V AC/DC, USB-C, PowerBus). Configuration is via NFC or Bluetooth 5.0.
Before you install
- Setup: via the Milesight ToolBox app (NFC).
- Power: choose one: batteries (ER14505), 24 V, USB-C, or Powerbus from an HVAC controller.
- Control: acts as a room interface — it does not switch loads itself; it pairs with a Milesight HVAC controller or WT101/WT102 heads. Connects via a LoRaWAN gateway (sold separately).
Parameters
| Wireless Protocol | LoRaWAN®, Class A/C (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm |
| Function | HVAC control via BMS or paired Milesight HVAC controller; Heat/EM Heat/Cool/Auto; 8 plans |
| Measurement | Onboard temp –20…+60 °C ±0.2 °C; humidity 0–100 % RH ±2 %; PIR 120° H × 90° V, up to 6 m |
| Display | 2.7" black & white E-Ink |
| Configuration | NFC via Mobile App, Bluetooth 5.0, Downlink |
| Power | 2 × 2700 mAh Li-SOCl₂ (ER14505), up to ~5 years; or 24 V AC/DC, USB-C, PowerBus |
| Enclosure | PC+ABS (UL94 V0), IP30 |

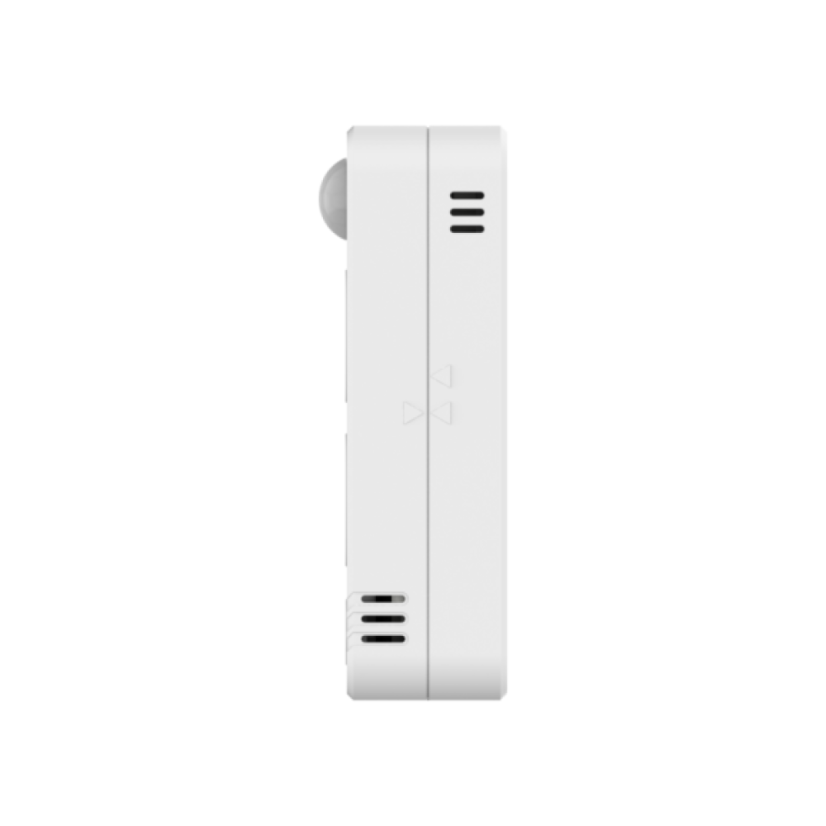

| Dimensions | 86 × 86 × 24 mm |

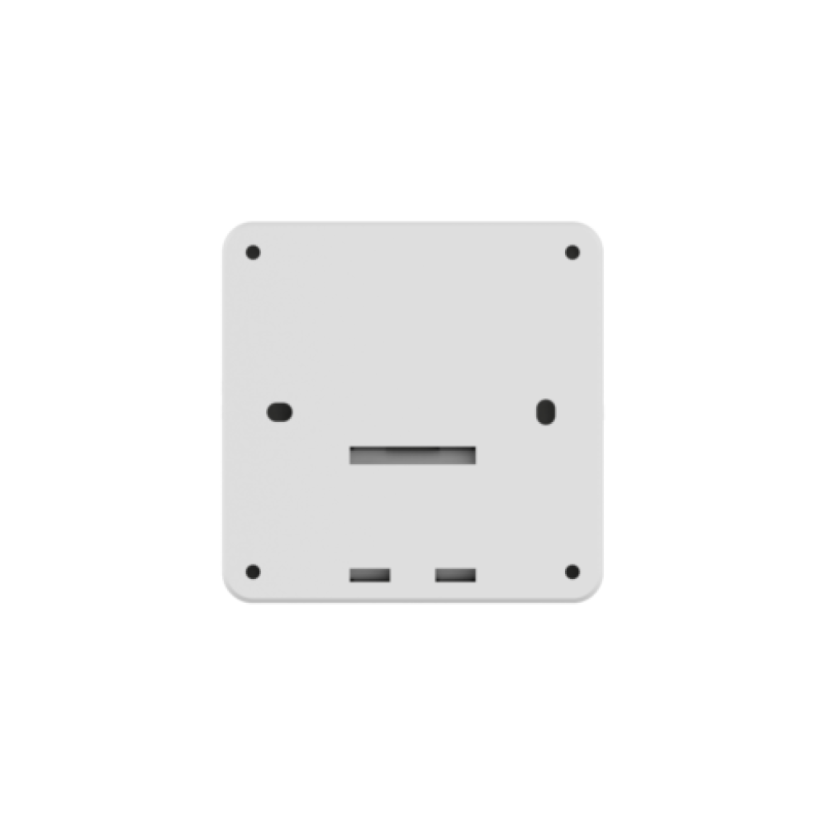

| Mounting | Wall, 86 mm square or 60 mm round box |
