EURMilesight WTS506 - All-in-One Weather Station
Milesight WTS506 - All-in-One Weather Station
Free shipping within the Czech Republic on purchases over 120 EUR.
Price includes a WEEE recycling fee for the Czech Republic.
Price includes a WEEE recycling fee for the Czech Republic.
The Milesight WTS506-868M is an all-in-one solar-powered LoRaWAN® weather station measuring six atmospheric parameters — air temperature, humidity, wind speed, wind direction, barometric pressure and rainfall — using ultrasonic wind sensing and a piezoelectric rain sensor. It is housed in a waterproof, UV- and salt-spray-resistant enclosure for harsh outdoor use.

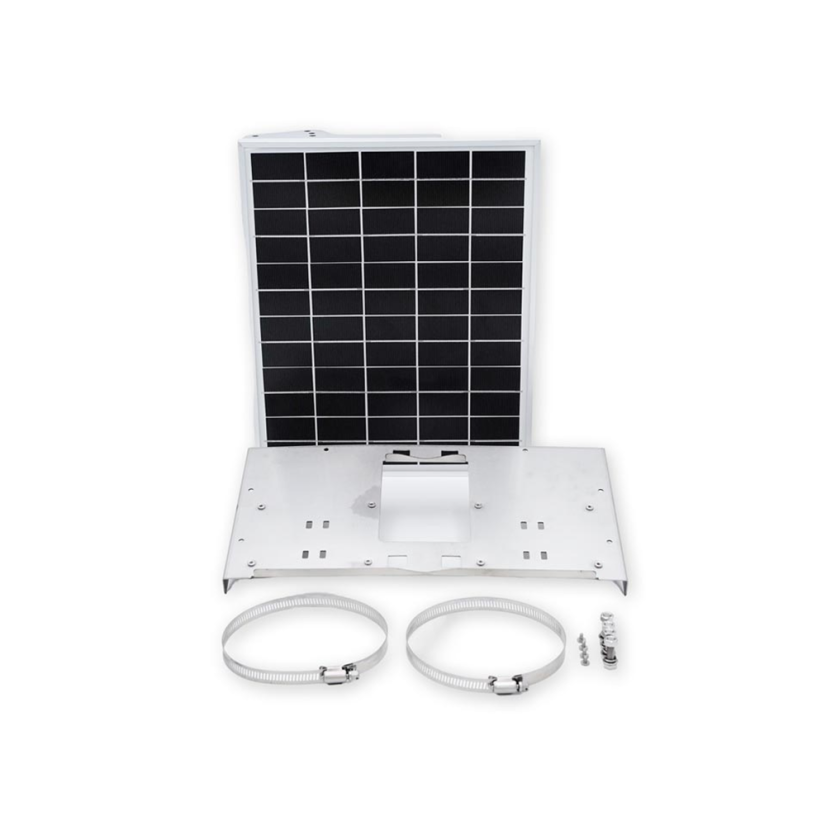

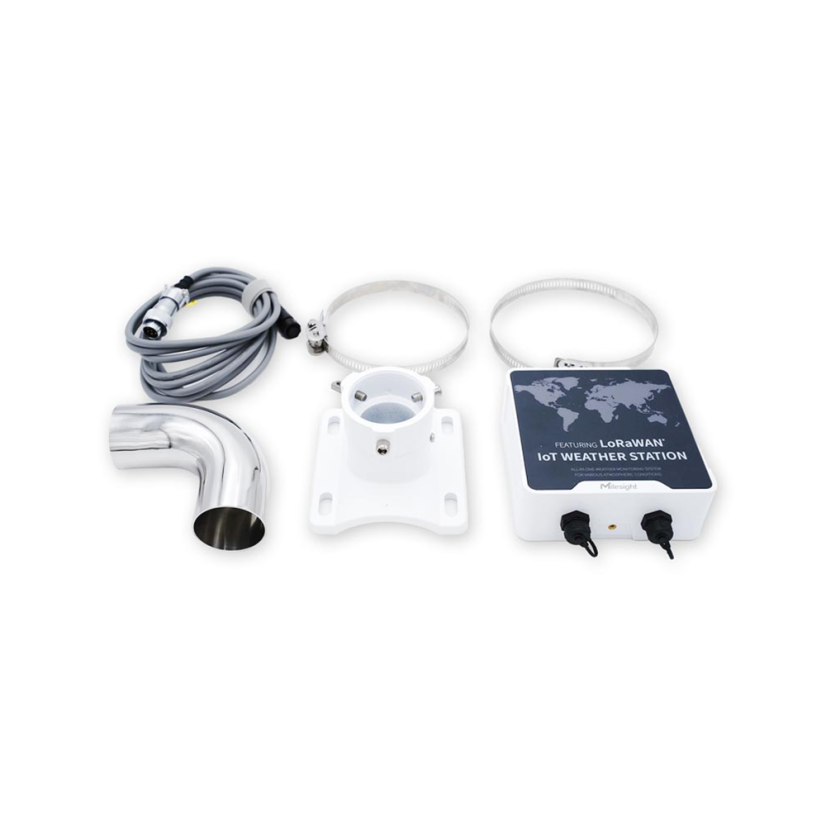

The system comprises the WTS506 sensor, the WTS Hub and a 15 W solar panel (all ship together). It stores 19,000+ records and transmits up to 15 km line of sight, suiting meteorology, smart agriculture and smart buildings. Configured via NFC or USB-C.
Before you install
- Setup: via the Milesight ToolBox app (NFC) or over USB-C.
- Power: solar panel and backup battery, ~a week without sun.
- Data: over LoRaWAN — needs a LoRaWAN gateway to send data (sold separately); remote monitoring via the Milesight platform is free for up to 10 devices.
Parameters
| Wireless Protocol | LoRaWAN®, Class A (OTAA/ABP) |
| Frequency | EU868, max. 16 dBm, up to 15 km line of sight |
| Measured Parameters | Air temp –40…+85 °C ±0.3 °C; humidity 0–100 % ±3 %; wind 0–60 m/s; direction 0–360° ±3°; pressure 500–1100 hPa; rainfall 0–1000 mm |
| Configuration | NFC via Mobile App, USB-C |
| Power | Solar 15 W + 2 × 2550 mAh rechargeable backup |
| Enclosure | Sensor aluminium alloy IP65; WTS Hub IP67 |
| Operating Temperature | Sensor –40 °C to +85 °C; hub –20 °C to +60 °C |
| Dimensions | Sensor Ø160 × 263 mm; hub 116 × 116 × 45.5 mm; panel 343 × 283 × 16.5 mm |

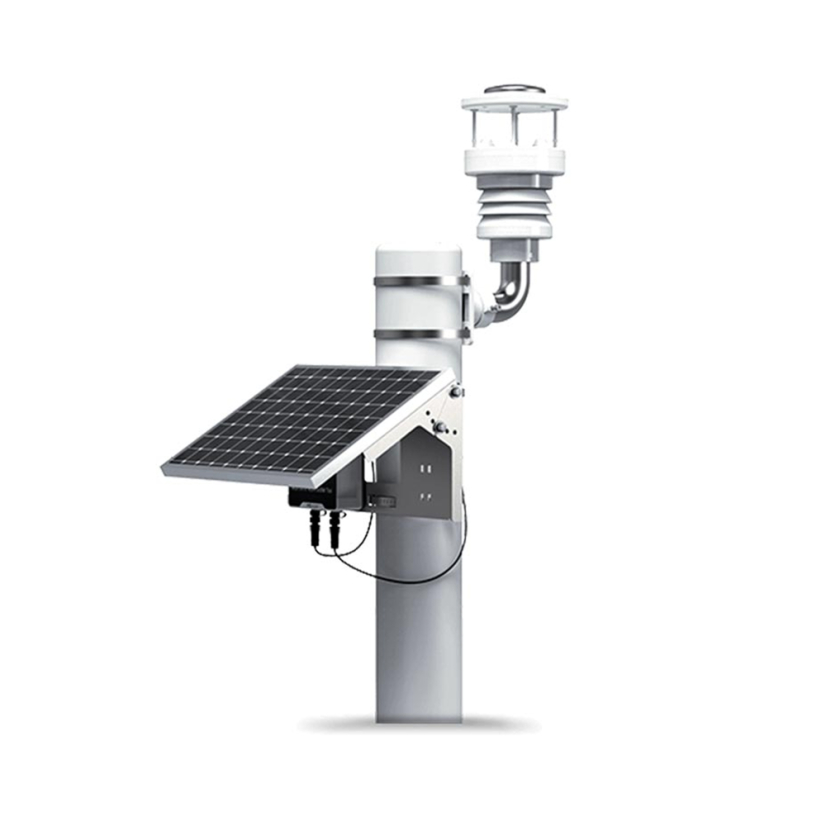

| Mounting | Sensor & solar panel on pole; hub by screws |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
- Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
- Keep batteries out of the reach of children.
- A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
- Outdoors, fix the product securely to a mast or structure strong enough for the wind load, and protect the installation against lightning according to local regulations.
| Manufacturing company | XIAMEN MILESIGHT IOT CO.,LTD. |
|---|---|
| Address | 401, Building No.37, Xixishanwei Road, Software Park Phase III, Torch Development Zone for High Technology Industries, Xiamen, China |
| [email protected] | |
| Manufacturer's representative in the EU | HARDWARIO a.s. |
| Address of representative in the EU | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| EU representative email | [email protected] |
