Mini Battery Module powers a compact device of HARDWARIO TOWER, a modular IoT kit, from two AAA cells. Its TPS61099 boost converter supplies 3.1 V with up to 93 % efficiency at 10 mA; a bottom-entry socket keeps the 33 × 55 mm stack low. More
Manufacturer: HARDWARIO Product code: 99.25.1414.5625

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

3-year HARDWARIO guarantee. Details in our terms.

16,90 EUR incl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
Mini Battery Module powers a compact device of HARDWARIO TOWER, a modular IoT kit, from two AAA cells. Its TPS61099 boost converter supplies 3.1 V with up to 93 % efficiency at 10 mA; a bottom-entry socket keeps the 33 × 55 mm stack low. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1414.5625

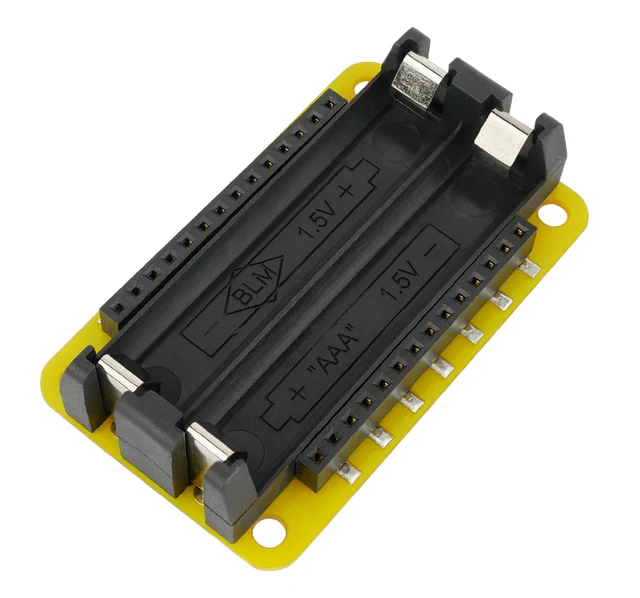

The Mini Battery Module is the small battery supply of HARDWARIO TOWER: two AAA cells on a 33 × 55 mm board. Combined with a Core Module and the Climate Module it makes a compact wireless environmental sensor.

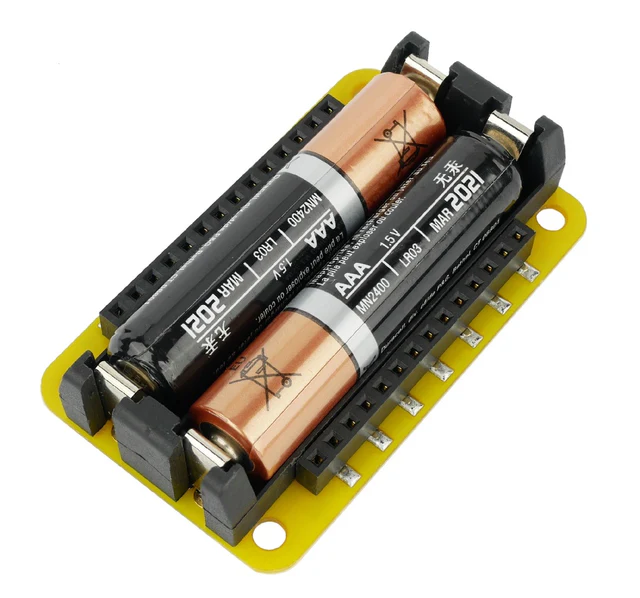

  • Batteries: two AAA cells, 1.5 V alkaline or Eneloop NiMH.

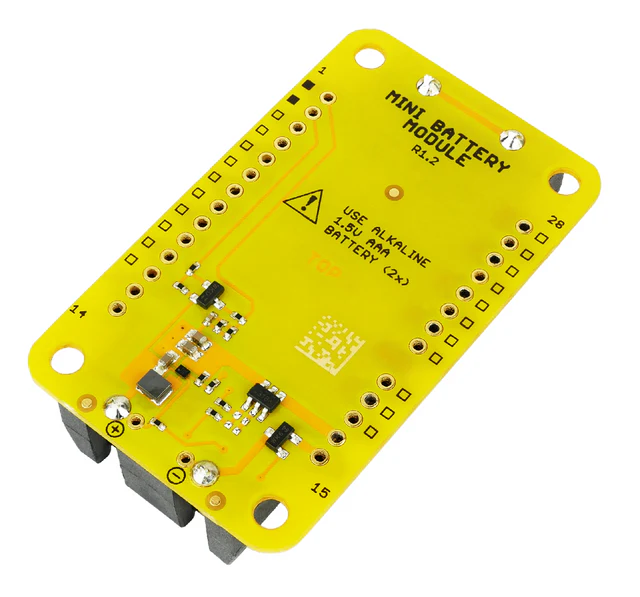

  • Converter: the TPS61099 boost converter supplies a rated 3.1 V with up to 93 % efficiency at 10 mA; quiescent current below 5 µA.
  • Protection: reverse polarity protection and a load disconnect circuit that disconnects the batteries when another supply is connected, for example an AC adapter or a USB cable.
  • Battery voltage: measurable on the analog input P0/A0/TXD0.
  • Low profile: the bottom-entry socket keeps the finished device low.

For four AAA cells in the larger format, see the Battery Module.

Features

  • Highly efficient DC/DC converter TPS61099 (TI)
  • Very low quiescent current <5 μA
  • Efficiency up to 93 % at 10 mA
  • Recommended types of batteries:
    • 2x AAA 1.5 V Alkaline, or
    • 2x AAA Eneloop NiMH
  • Rated output voltage 3.1 V
  • Circuit for disconnecting the battery
  • Reverse polarity protection
  • Input voltage measurement via ADC input
  • Operating temperature range: -20 to 70 °C
  • Dimensions: 33 x 55 mm

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • The modules are electronic assemblies sensitive to electrostatic discharge: hold them by the edges and touch a grounded object first.
  • Power them only as described in the documentation (USB, a battery module or the Power Module).
  • Keep small parts out of the reach of small children.
  • Replace the batteries only with the type given in the documentation and insert them with the correct polarity (+ and −).
  • Never recharge primary (non-rechargeable) cells. Do not short-circuit, open, crush or heat batteries and do not throw them into fire.
  • Keep batteries out of the reach of children.
  • A damaged or leaking battery can overheat or catch fire: take it out of service and do not touch leaking electrolyte.
