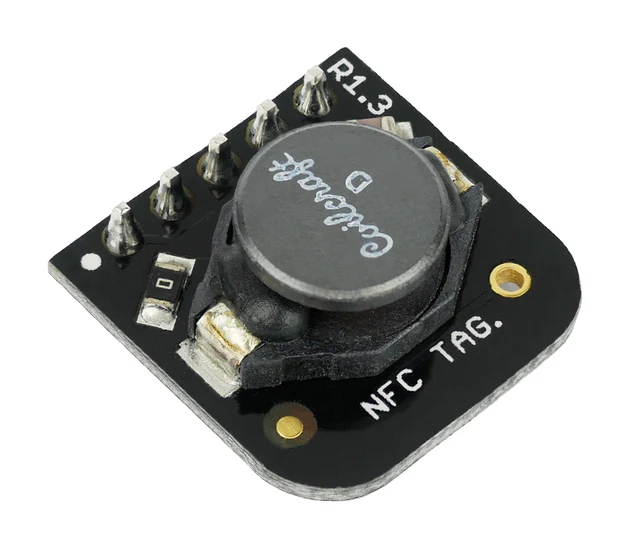

NFC Tag

The NFC Tag operates as a dual port memory. You have the NFC protocol from one side and the I²C bus interface from the other. It features a 1 kB EEPROM memory. The chip does not have to be powered when accessed from the NFC side. More

Product code: 99.25.1654.5466 Shipping and Payment

Volume discounts:

5% discount when purchasing 10 or more pieces
10% discount when purchasing 50 or more pieces

For order quantities of 200+ pcs, please contact us for an individual offer. Please note that discounts cannot be combined.

Free shipping within the Czech Republic on purchases over 120 EUR.

11,90 EUR excl. VAT (14,40 EUR incl. VAT)

Manufacturer: Product code: 99.25.1654.5466 Shipping and Payment

Description

NFC (or near-Field Communication) is an excellent technology for transferring data over a short distance (a couple of centimeters). This attribute makes it appealing for security key provisioning. Many smartphones today are equipped with NFC technology.

Features

Integrated NFC tag NT3H2111 (NXP)
Communication using I²C bus
1 kB EEPROM memory
Optional interrupt output
Optional energy harvesting output
Operating current: 240 µA
Operating voltage range: 1.7 V to 3.6 V
Operating temperature range: -20 to 70 °C
Mechanical dimensions: 16 x 16 mm

Resources

Schematic drawing
