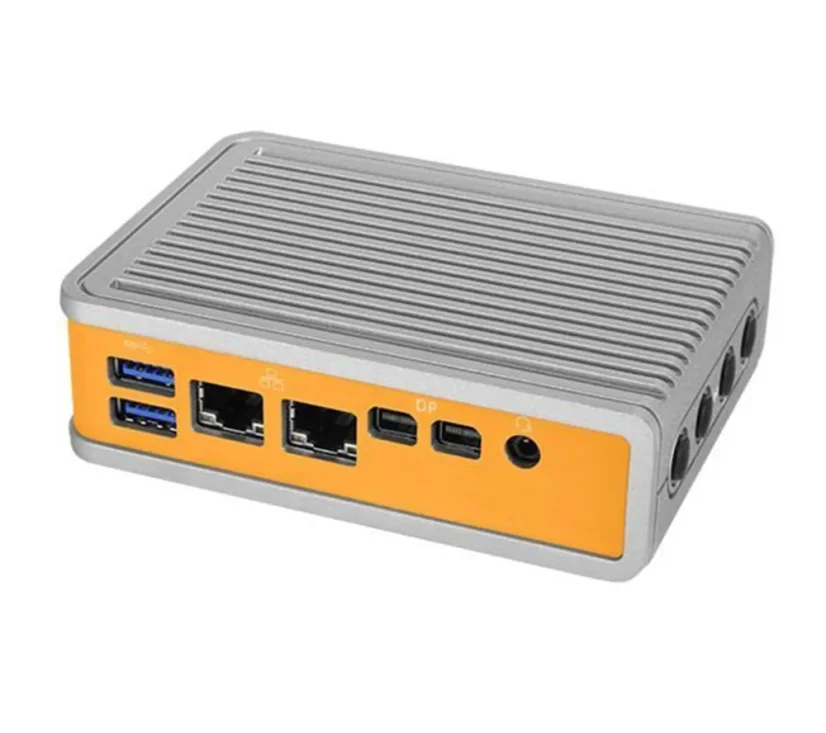

Industrial Computer OnLogic CL210G-10 with Dual LAN

Technical Specifications

Rear I/O:

• 1x MicroSD Card Slot
• 1x Power Button
• 1x Power Indicator LED
• 1x COM Port (RS-232)
• 1x USB 2.0 Port
• 1x DC Input Jack (12 V, AC/DC Power Adapter included)

Front I/O:

• 2x USB 3.0 Ports
• 2x Mini-DisplayPorts
• 2x Gb LAN Ports
• 1x Audio Jack (Line Out / Mic In)

Expansion Options

• 1x Full-size mPCIe Slot (shared with mSATA)
• 1x Half-height mPCIe Slot

Storage Options

• Included Storage: 32 GB Onboard eMMC Storage
• Additional Storage: MicroSD Card, 1x mSATA Slot (shared with full-size mPCIe slot)

Networking

• LAN Controller: Realtek RTL8111G

Power Supply

• Included Adapter: AC/DC 12 V, 36 W - with Interchangeable Plug
• Input Voltage: 12 VDC (via DC Jack)

System Monitoring

• BIOS Features: PTT (Platform Trust Technology)
• Watchdog Timer: Yes

Operating Conditions

• Operating Temperature: 0 ~ 40°C

Physical Dimensions

• Dimensions (W x H x D): 116 mm x 82 mm x 34 mm (4.57" x 3.23" x 1.34")
• Case Type: Compact, Customizable, Fanless
• Case Material: Cast Aluminum & Steel

Additional Features

• Antenna Ports: 4 Holes
• Mounting Options: DIN-mount, VESA-mount, Wall-mount

Regulatory Compliance

• Certifications:
  • FCC 47 CFR Part 15
  • CE
  • UL Listed Configurations Available
  • CB Scheme
  • WEEE Directive (2002/96/EC)
  • RoHS 2 (2011/65/EU)
  • RoHS 3 (2015/863/EU)
  • EN 55024, EN 55032, EN 62368-1, IEC 62368-1
  • IP50

Notes:

The CL200 series supports UEFI boot mode only.
