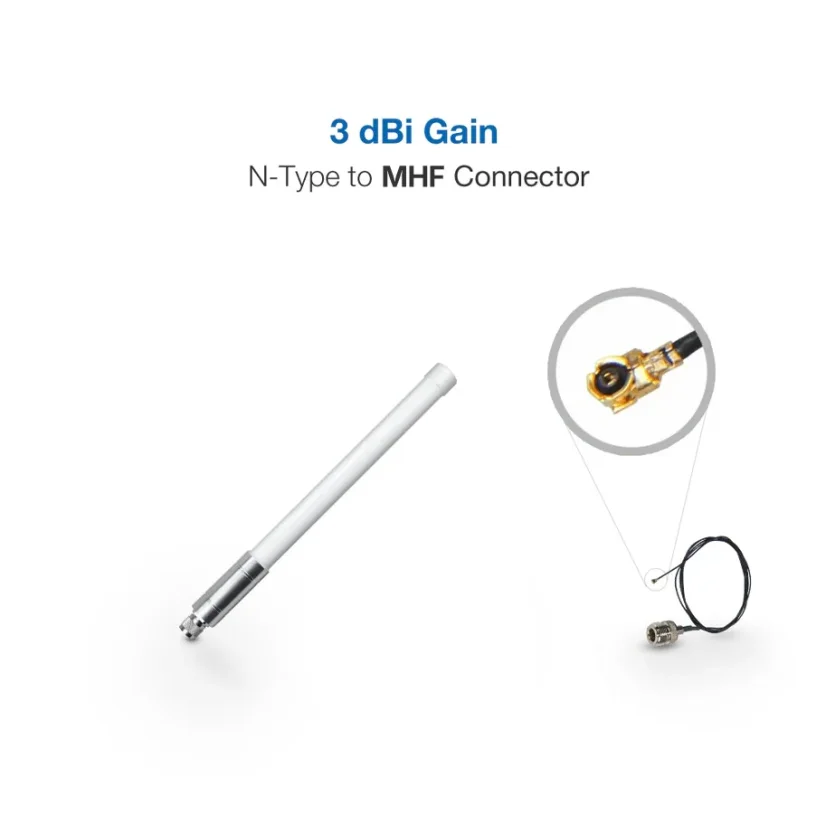

RAK Fiberglass Antenna 3 dBi / 860–930 MHz (N-Type to MHF)

RAK Fiberglass Antenna 3 dBi / 860–930 MHz (N-Type to MHF)


Outdoor omnidirectional fiberglass antenna for LoRaWAN®, 3 dBi gain, 860–930 MHz (covers EU868 and US915). IP67, 50 Ω, 360 mm long. N-Type male connector, supplied with an N-Type to MHF (IPEX/U.FL) pigtail cable. More
Manufacturer: RAK Product code: 99.25.2050.7819

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

41,90 EUR incl. VAT
In stock (ships within 2 business days)
Outdoor omnidirectional fiberglass antenna for LoRaWAN®, 3 dBi gain, 860–930 MHz (covers EU868 and US915). IP67, 50 Ω, 360 mm long. N-Type male connector, supplied with an N-Type to MHF (IPEX/U.FL) pigtail cable. More
Manufacturer: RAK Product code: 99.25.2050.7819

The RAK 3 dBi fiberglass antenna is a compact outdoor antenna for LoRaWAN®, a long-range, low-power radio network. It radiates in all horizontal directions. Its 860–930 MHz range covers the EU868, US915 and neighboring sub-GHz LoRaWAN bands. The fiberglass radome is rated IP67.

  • Gain: 3 dBi, omnidirectional, vertical polarization.
  • Size: 360 mm long, 25 mm in diameter.
  • Connector: N-Type male. This version is supplied with an N-Type to MHF (IPEX/U.FL) pigtail cable for concentrator modules with a U.FL socket.

Parameters

Frequency860–930 MHz
Gain3 dBi (2.6–3.1 dBi)
VSWR≤ 2.5
Impedance50 Ω
PolarizationVertical, 360° omnidirectional
ConnectorN-Type male
Length360 mm (±10 mm)
Diameter25 mm
RadomeFiberglass
Operating temperature−20 °C to +65 °C
Ingress protectionIP67

Documentation

Safety information

  • Read the manufacturer's user guide supplied with the product before installation and keep it.
  • Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
  • Mount outdoor antennas so that they cannot touch power lines, and protect the installation against lightning according to local regulations.
  • Keep a distance of at least 20 cm between a transmitting antenna and people.
  • Outdoors, fix the product securely to a mast or structure strong enough for the wind load, and protect the installation against lightning according to local regulations.
Manufacturing company Shenzhen RAKwireless Technology Co., Ltd.
Address Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, China
Email [email protected]
Responsible person in the EU HARDWARIO a.s.
Address of the responsible person in the EU U Jezu 525/4, 460 01 Liberec, Czech Republic
E-mail of the responsible person in the EU [email protected]
