EURRAK Fiberglass Antenna 8dBi / 858-878 MHz (N-Type Male)
RAK Fiberglass Antenna 8dBi / 858-878 MHz (N-Type Male)
8 dBi omnidirectional fiberglass LoRaWAN® antenna for the 858–878 MHz band. IP67, 50 Ω, bare N-Type male connector (no adapter cable). More
Manufacturer: RAK
Product code: 99.26.3140.6302
Buying in volume? Write to [email protected] for an individual offer.
Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.
EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).
93,90 EUR
incl. VAT
8 dBi omnidirectional fiberglass LoRaWAN® antenna for the 858–878 MHz band. IP67, 50 Ω, bare N-Type male connector (no adapter cable). More
Manufacturer: RAK
Product code: 99.26.3140.6302

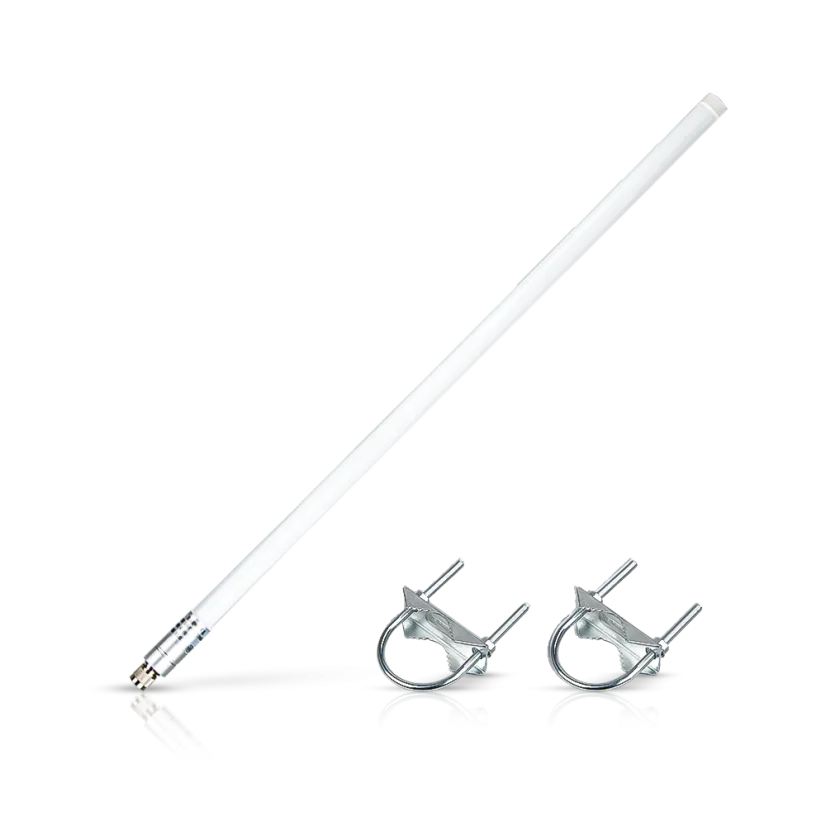

The RAK 8 dBi Fiberglass Antenna (858–878 MHz) is an outdoor, omnidirectional LoRaWAN® antenna housed in a rugged IP67 fiberglass radome. Its high 8 dBi gain makes it ideal for maximising the range of LoRaWAN gateways and base stations in the EU868 band.
The antenna terminates in a bare N-Type male connector; no adapter cable is included.
Parameters
| Frequency | 858–878 MHz |
| Gain | 8 dBi (±1 dBi) |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Vertical, 360° omnidirectional |
| Connector | N-Type male |
| Length | 1300 mm (±25 mm) |
| Diameter | 25 mm |
| Radome | Fiberglass (white) |
| Operating temperature | −30 °C to +65 °C |
| Ingress protection | IP67 |
| Mounting | Wall/pole brackets included |
Documentation
Safety information
- Read the manufacturer's user guide supplied with the product before installation and keep it.
- Use the product only for its intended use and within the operating conditions stated by the manufacturer. Do not use a visibly damaged product.
- Mount outdoor antennas so that they cannot touch power lines, and protect the installation against lightning according to local regulations.
- Keep a distance of at least 20 cm between a transmitting antenna and people.
- Outdoors, fix the product securely to a mast or structure strong enough for the wind load, and protect the installation against lightning according to local regulations.
| Manufacturing company | Shenzhen RAKwireless Technology Co., Ltd. |
|---|---|
| Address | Room 506, Building B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, China |
| [email protected] | |
| Responsible person in the EU | HARDWARIO a.s. |
| Address of the responsible person in the EU | U Jezu 525/4, 460 01 Liberec, Czech Republic |
| E-mail of the responsible person in the EU | [email protected] |
