Temperature Sensor DS18B20, 2 m cable

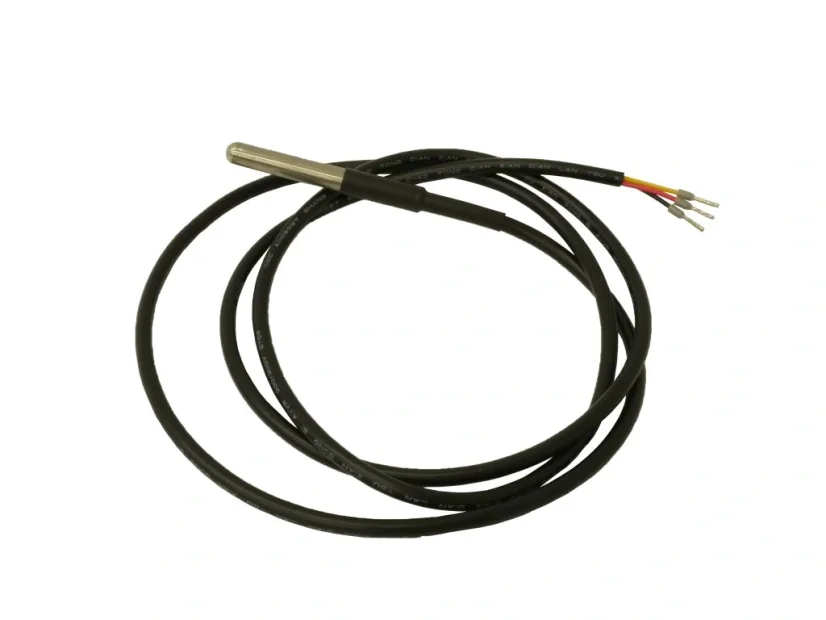

External temperature sensor DS18B20 with Dallas chip, 2 m cable. Suitable for use in industry. More
Manufacturer: HARDWARIO
Product code: 99.25.1157.4699
Free shipping within the Czech Republic on purchases over 120 EUR.
14,90 EUR
excl. VAT (18,03 EUR incl. VAT)
External temperature sensor DS18B20 with Dallas chip, 2 m cable. Suitable for use in industry. More
Manufacturer: HARDWARIO
Product code: 99.25.1157.4699
Technical parameters
| Chip | DALLAS DS18B20 |
| Output type | Digital |
| Adjustable resolution | 9-12 bits |
| Measured temperature range | -40 ~ +105 ℃ |
| Measurement accuracy | ± 0.5 ° C |
| Working voltage | DC 3 - 5.5V |
| Operating supply current | 1.5 mA |
| Interface type | 1-Wire |
| Tip | stainless steel |
| Length | 40 mm |
| Width | 5 mm |
| Cable | 2m, unshielded silicone, 3x 0.22 mm2 |
| Protection | IP67 |
Safety information
- Read the documentation at docs.hardwario.com before installing the product.
- Use the product only for its intended use and within the operating conditions given in its documentation.
- Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
- The product is not designed for potentially explosive atmospheres.
- Connect the sensor only to HARDWARIO devices as described in the documentation.
- Route and fix the cable so that it cannot be damaged or pinched and nobody can trip over it.
- Observe the temperature range and the ingress protection given in the documentation.
