CZKUltrasonic sensor, 2 m cable
Ultrasonic sensor, 2 m cable

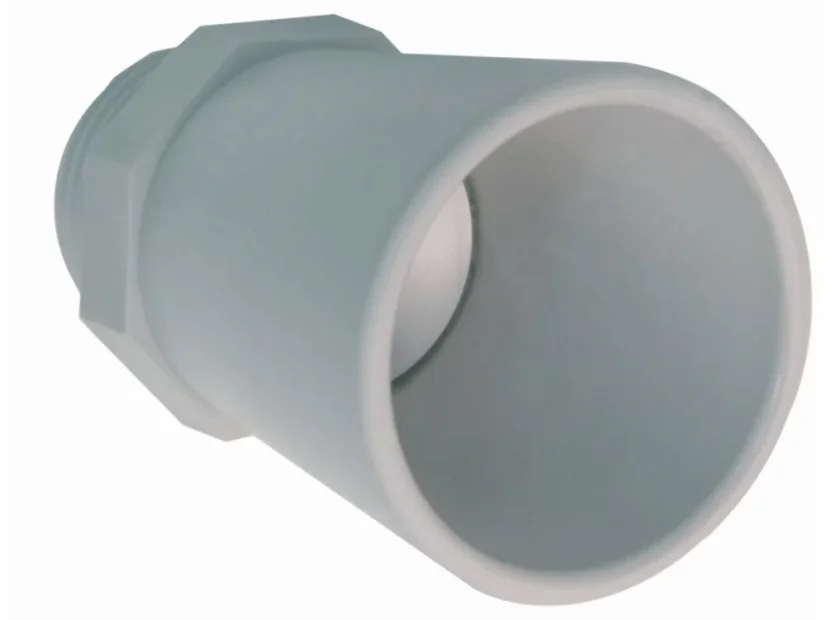

External ultrasonic distance sensor L-MaxSonar-WRL1 has a range of 10 meters. The XL-MaxSonar-WR is a robust, weather-resistant ultrasonic module. This outdoor sensor detects very short to long distances. It meets the IP67 standard for water ingress and corresponds to standard 3/4-inch PVC electrical pipe fittings. More
Product code: 99.25.1153.5802
Shipping and Payment
Free shipping within the Czech Republic.
259 EUR
excl. VAT (313,39 EUR incl. VAT)
External ultrasonic distance sensor L-MaxSonar-WRL1 has a range of 10 meters. The XL-MaxSonar-WR is a robust, weather-resistant ultrasonic module. This outdoor sensor detects very short to long distances. It meets the IP67 standard for water ingress and corresponds to standard 3/4-inch PVC electrical pipe fittings. More

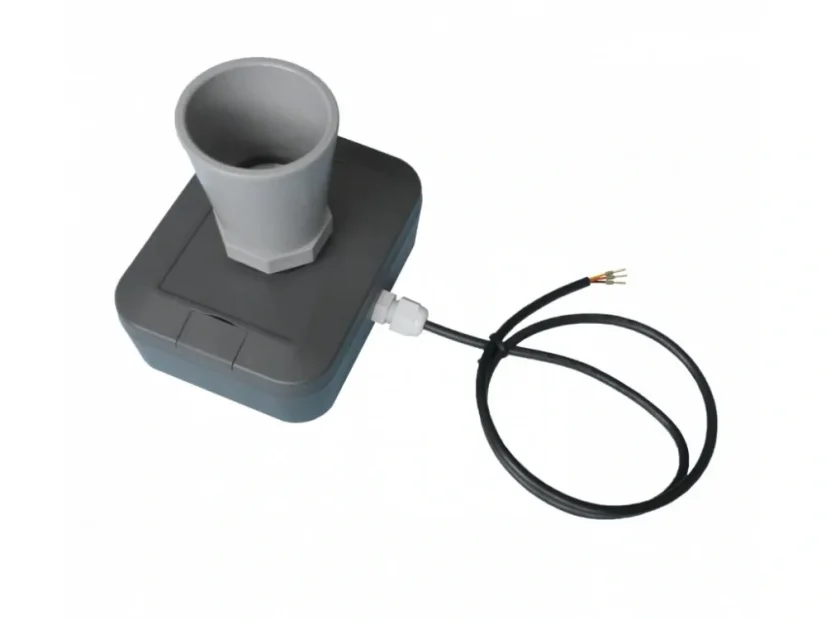

Provided as a solution with Takachi enclosure and 2 m cable. Easy integration with HARDWARIO devices.
Technical parameters
- Resolution 1 cm
- Reading frequency 10 Hz 42 kHz ultrasonic sensor measuring the distance to objects
- Reads from all 3 selected sensor outputs: analog voltage, serial number, pulse width
- Operating voltage from 3.0 to 5.5 V
- Low 3.4mA average current consumption
- Operating temperature from -40˚C to + 70˚C
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Weather resistant (IP67)
Wiring diagram
| Sensor Module pin | Maxbotix pin | Wire color |
|---|---|---|
| A (pulse in) | 2 (pulse out) | Yellow |
| GND | GND | Black |
| VCC | V+ | Red |
