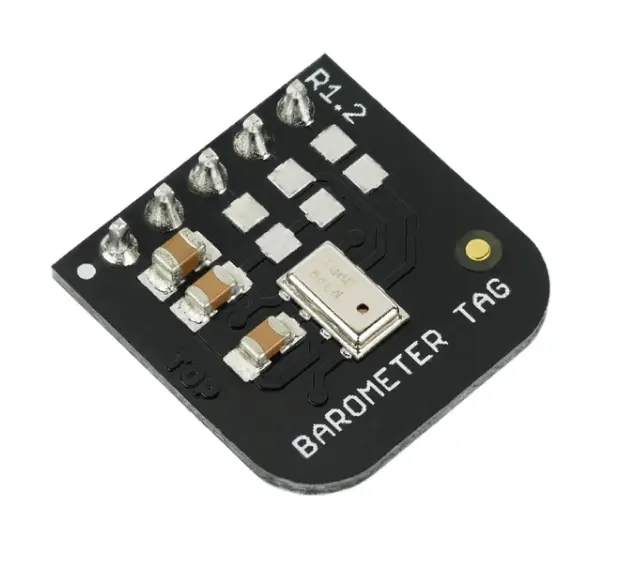

Barometer Tag

Barometer Tag


The Barometer Tag allows you to measure absolute pressure in the range from 20 kPa to 110 kPa or altitude above sea level in meters. It uses a low-power I²C sensor MPL3115A2 with an absolute accuracy of ±0.4 kPa and features a very low active and standby current. More

Product code: 99.24.1548.9959

  • 5% discount when purchasing 10 or more pieces
  • 10% discount when purchasing 50 or more pieces
  • 15% discount when purchasing 200 or more pieces
  • 20% discount when purchasing 1,000 or more pieces

Free shipping on purchases over 120 EUR.

11,90 EUR excl. VAT (14,40 EUR incl. VAT)
In stock
pcs

The Barometer Tag allows you to measure absolute pressure in the range from 20 kPa to 110 kPa or altitude above sea level in meters. It uses a low-power I²C sensor MPL3115A2 with an absolute accuracy of ±0.4 kPa and features a very low active and standby current. More

Product code: 99.24.1548.9959

Monitoring absolute pressure is useful for weather forecasts and is also an important parameter in biometeorology because it can affect our health.

Features

  • Absolute pressure sensor MPL3115A2 (NXP)
  • The sensor only needs I²C bus
  • Pressure range: from 20 kPa to 110 kPa
  • Altitude range: from -698 to 11,775 m
  • Absolute accuracy: ±0.4 kPa
  • Optional interrupt output
  • Power consumption:
  • Operating voltage range: 2.0 V to 3.6 V
  • Operating temperature range: -40 to 85 °C
  • Mechanical dimensions: 16 x 16 mm
