GAUGER

Add to favourites Add to compare list

GAUGER

GAUGER is an industrial IoT pulse counter for production monitoring. Its four galvanically isolated inputs (24 V, NPN or PNP) count cycles and parts, even on older machines, and it provides the counts over Ethernet or Wi-Fi from its built-in Modbus TCP server or HTTP API. More
Manufacturer: HARDWARIO Product code: 99.25.1618.3336

Buying in volume? Write to [email protected] for an individual offer.

Free shipping from 125 EUR in the Czech Republic, 150 EUR to Slovakia and 250 EUR to all other countries we ship to (order value incl. VAT). All rates: Shipping and payment.

EU companies outside the Czech Republic with a valid VAT ID buy without VAT (reverse charge).

3-year HARDWARIO guarantee. Details in our terms.

338,99 EUR incl. VAT

Price includes a WEEE recycling fee for the Czech Republic.

In stock (ships within 2 business days)
GAUGER is an industrial IoT pulse counter for production monitoring. Its four galvanically isolated inputs (24 V, NPN or PNP) count cycles and parts, even on older machines, and it provides the counts over Ethernet or Wi-Fi from its built-in Modbus TCP server or HTTP API. More

Price includes a WEEE recycling fee for the Czech Republic.

Manufacturer: HARDWARIO Product code: 99.25.1618.3336

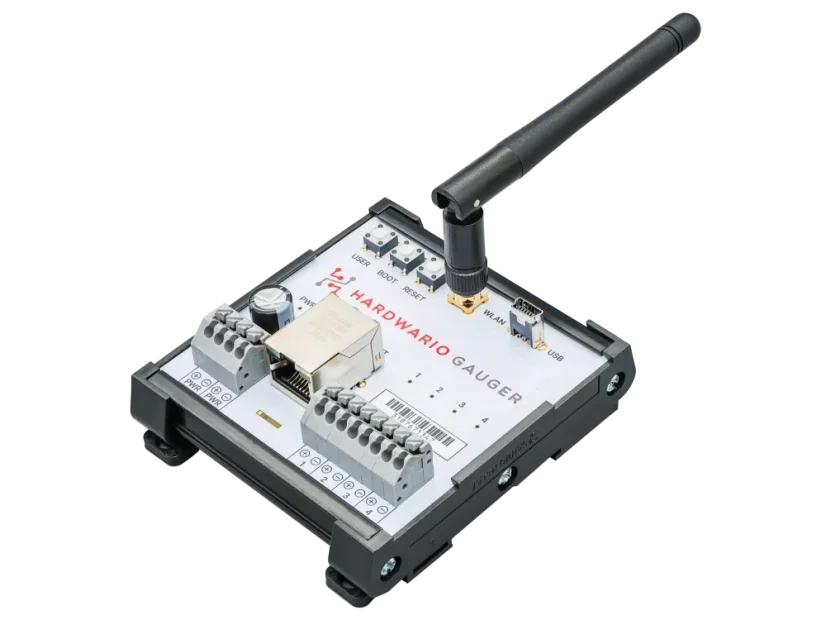

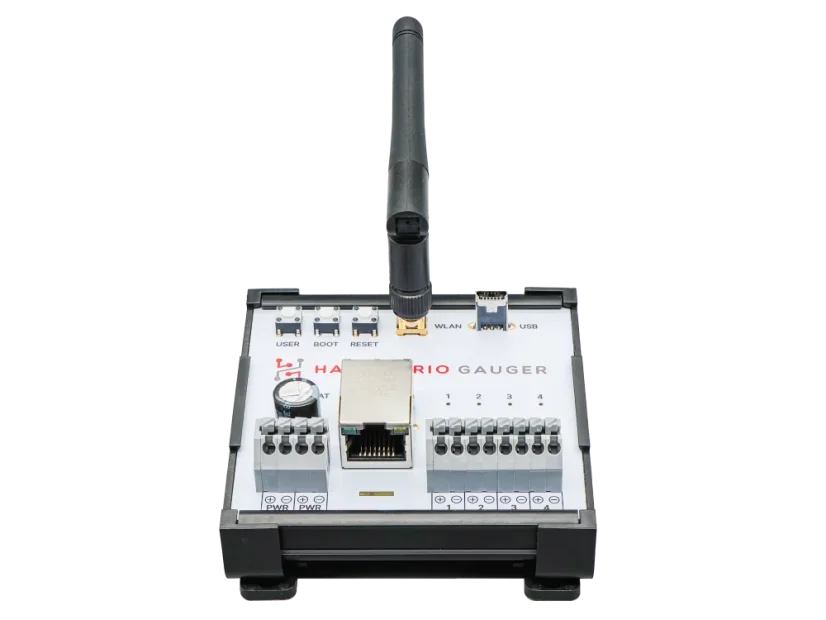

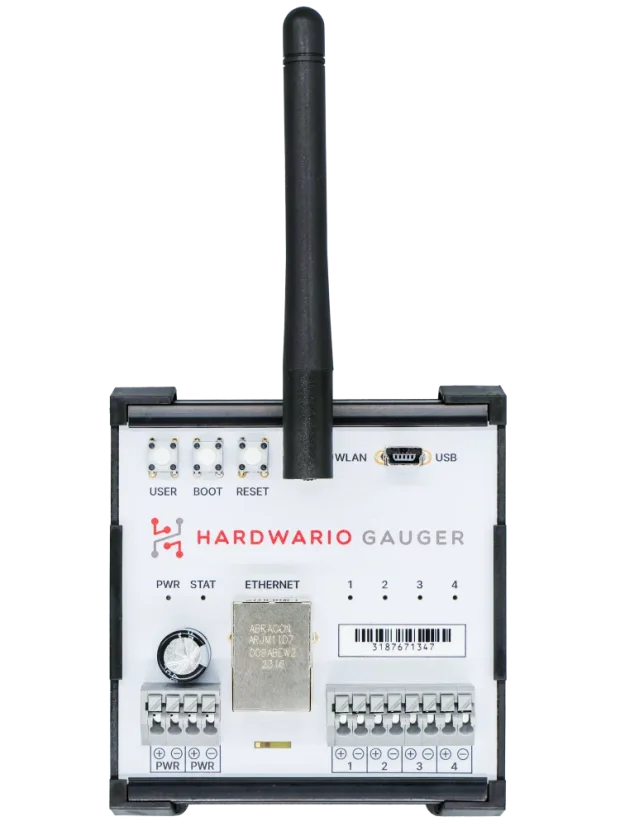

GAUGER is a robust industrial IoT device that collects production data, helping manufacturers optimize efficiency and reduce downtime. It reads industrial logic signals from machines (24V PNP/NPN) on four galvanically isolated inputs and connects to the network via Ethernet or WiFi. The device enables accurate cycle tracking, OK/NOK unit counting and energy consumption monitoring. Your own systems can then calculate Overall Equipment Effectiveness (OEE) from these counts.

With built-in Modbus server support and an integrated HTTP API, GAUGER simplifies integration into industrial systems. Its DIN-mountable design ensures easy installation, while the web interface allows for intuitive configuration. Remote firmware updates over WiFi further enhance maintainability.

Examples of use: Monitoring production line efficiency, tracking machine uptime and optimizing energy consumption.

Resources

Safety information

  • Read the documentation at docs.hardwario.com before installing the product.
  • Use the product only for its intended use and within the operating conditions given in its documentation.
  • Do not modify the product beyond what the documentation describes. Do not use a visibly damaged product.
  • The product is not designed for potentially explosive atmospheres.
  • Install the unit on a DIN rail inside a closed cabinet.
  • Supply it from a DC source of 9 to 28 V and apply at most 28 V DC to its inputs.
  • Change the password of its Wi-Fi access point and set a password for the web interface at the first setup.
  • Keep a distance of at least 20 cm between the device and people while it operates.
Manufacturing company HARDWARIO a.s.
Address U Jezu 525/4, 460 01 Liberec, Czech Republic
Email [email protected]
