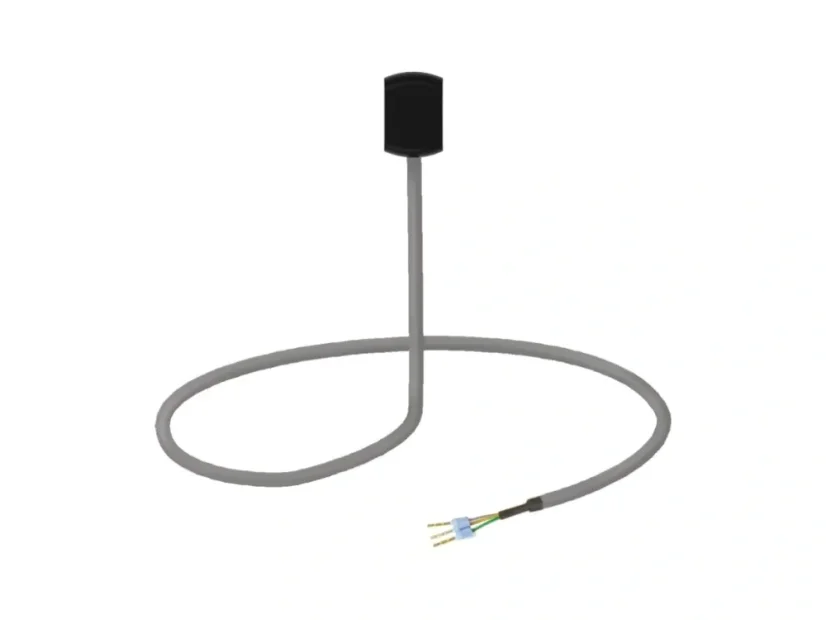

Magnetic Pulse Sensor
Magnetic pulse sensor for connection to energy meters. 1.5 m cable with connector for connection to Sensor Module. More
Product code: 99.25.1220.0008
Shipping and Payment
Free shipping within the Czech Republic on purchases over 120 EUR.
20,90 EUR
excl. VAT (25,29 EUR incl. VAT)
Magnetic pulse sensor for connection to energy meters. 1.5 m cable with connector for connection to Sensor Module. More
The magnetic sensor senses the pulse of each magnet rotation located on the unit dial.
It is particularly suitable for gas meters that support magnetic sensing.
The sensor module is bonded above the last number of the meter's unit dial.
Sensor signals
Brown wire ↔ 3.3V (VDD)
Green wire ↔ Sensor digital output
White wire ↔ Ground (GND)
